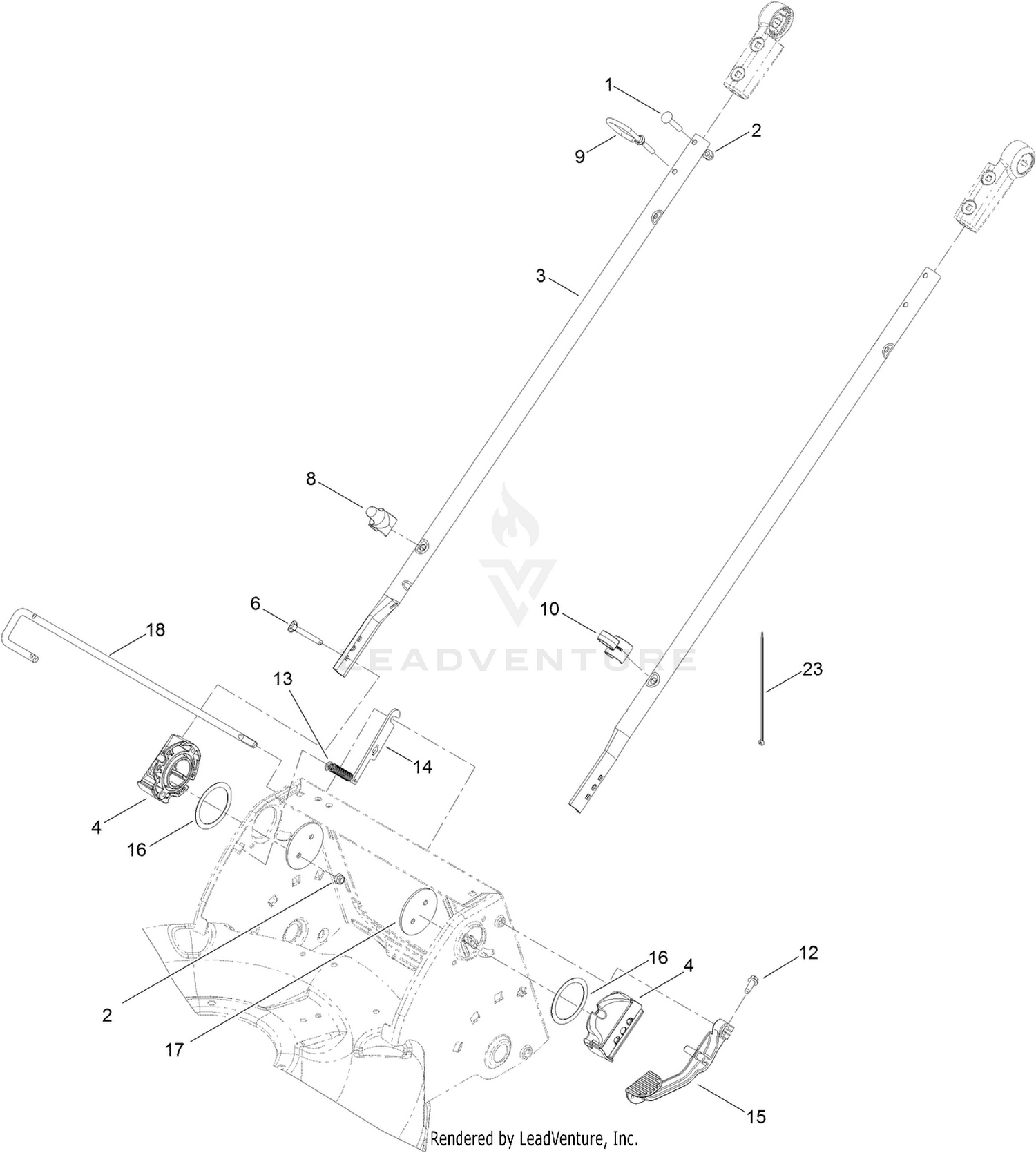

Lower Handle Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-0988 | SCREW-CARR Price: $0.61 |
| 2 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 3 | 107-3887-03 | TUBE-LOWER Price: $19.65 |
| 4 | 119-3847-03 | MOUNT-HANDLE Price: $11.38 |
| 6 | 95-4453 | SCREW Price: $3.09 |
| 8 | 117-4141 | GUIDE-ROPE, LOWER Price: $9.07 |
| 9 | 107-3908 | GUIDE-ROPE, UPPER Price: $2.72 |
| 10 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 12 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 13 | 112-1542 | SPRING-EXTENSION Price: $1.61 |
| 14 | 112-1539 | PLATE-ROD, RELEASE Price: $4.34 |
| 15 | 110-1823-03 | LEVER-RELEASE Price: $27.51 |
| 16 | 107-3947 | WASHER-NYLON Price: $0.92 |
| 17 | 107-3944-03 | PLATE Price: $3.63 |
| 18 | 112-8755 | ROD-RELEASE, HANDLE Price: $14.25 |
