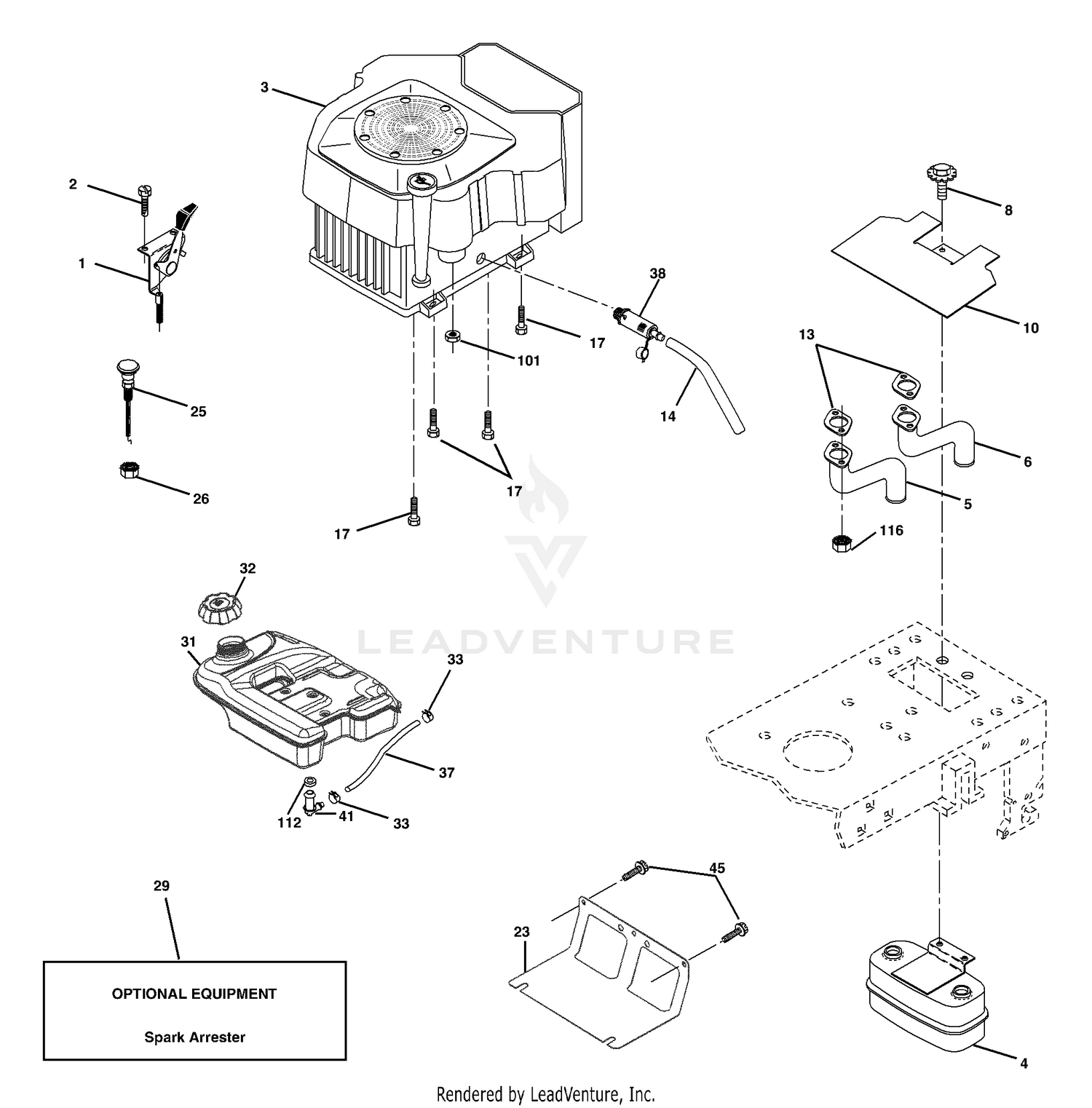

| Ref | Part Number | Description |
|---|
| 1 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 1 |
532190192 |
CONTROL.THROTTLE.BLACK This part replaces 532190259. Price: $27.99 |
| 2 |
107-2554 |
DECAL-PANEL, CONTROL This part replaces 93-8061. Price: $41.00 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
83-2030 |
PLATE-FILLER Price: $19.19 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
98-2160 |
VOLTMETER Price: $100.25 |
| 5 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
2410-64 |
PLUG-BUTTON Price: $0.74 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 7 |
218-578 |
FUSE-BLADE, 10 AMP Price: $2.58 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
98-2163 |
HARNESS-WIRE, MAIN Price: $370.20 |
| 9 |
78-0080 |
CLAMP-MOUNTING Price: $5.24 |
| 10 |
3217-27 |
NUT-HEX Price: $0.25 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 12 |
83-0030 |
CONTROL-THROTTLE Price: $39.07 |
| 13 |
83-0040 |
CONTROL-CHOKE Price: $36.29 |
| 14 |
104-2541 |
SWITCH ASM This part replaces 88-9830. Price: $36.70 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
3254-5 |
WASHER-LOCK Price: $0.49 |
| 16 |
218-461 |
NUT-HH Price: $2.50 |
| 17 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 17 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 18 |
3273-26 |
SCREW-HSH Price: $0.41 |
| 20 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 25 |
532190194 |
CHOKE.CONTROL.PUSH/PULL.BLACK This part replaces 532190260. Price: $37.99 |
| 26 |
70-1480 |
RELAY Price: $105.19 |
| 26 |
873920600 |
Nut, Keps 3/8-24 unf Price: $3.99 |
| 29 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
3255-20 |
WASHER-LOCK This part replaces 3255-25. Price: $0.25 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
3255-20 |
WASHER-LOCK Price: $0.25 |
| 35 |
3217-25 |
NUT-HEX Price: $0.25 |
| 36 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
