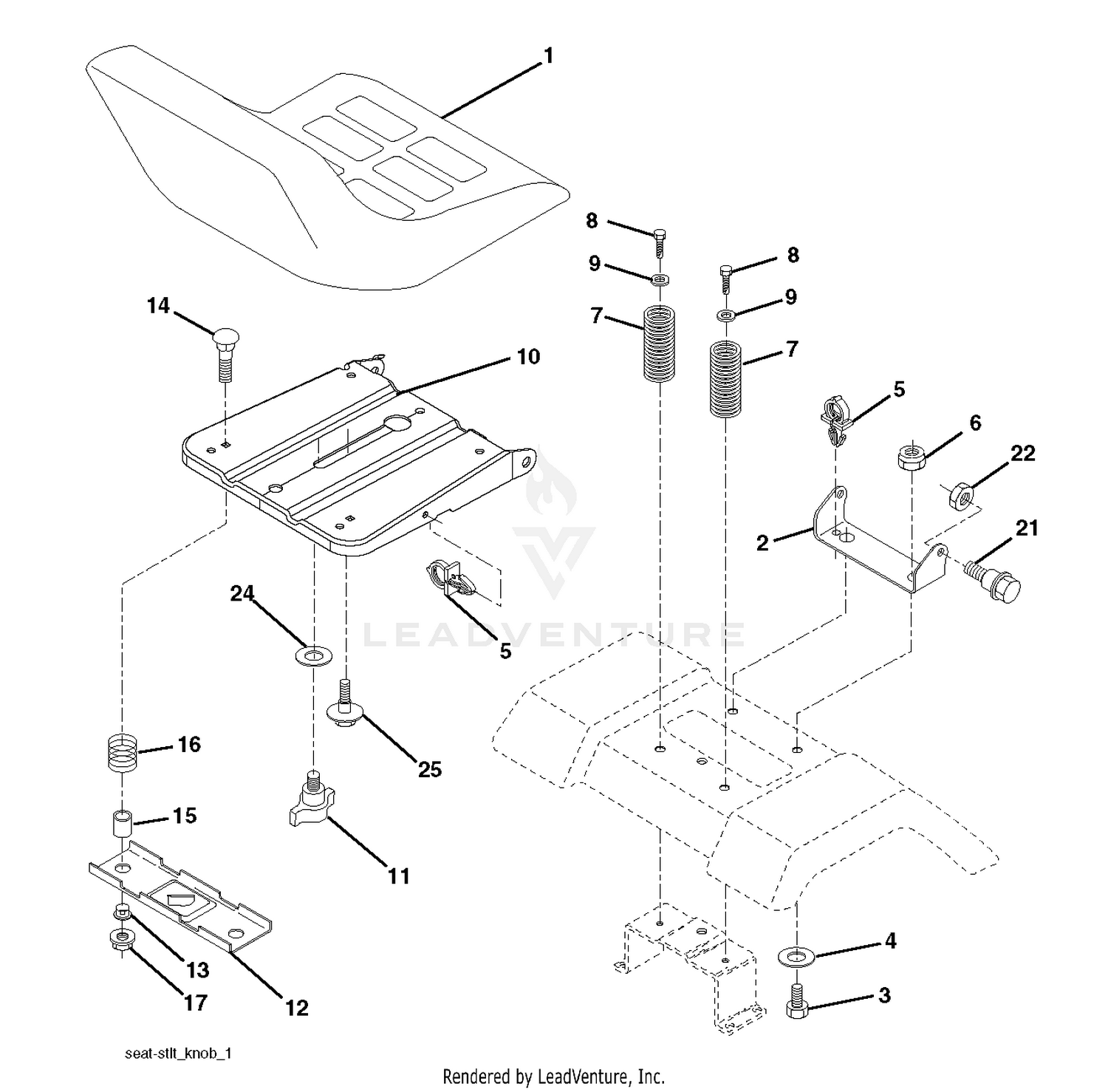

| Ref | Part Number | Description |
|---|
| 1 |
532188712 |
SEAT.XP110.BLK.PPRO.KB/BLT Price: $139.99 |
| 2 |
532140551 |
SEAT PIVOT BRKT Price: $3.99 |
| 3 |
104-5901 |
WASHER Price: $13.77 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $2.99 |
| 4 |
105-1763 |
SCREW-HHF Price: $15.43 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
112-0024 |
SPRING-COMPRESSION Price: $44.29 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
112-0023 |
NUT-HEX, COUPLING Price: $51.50 |
| 6 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
1-633029 |
BALLJOINT-SPHERICAL Price: $60.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
325-8 |
SCREW-HH Price: $3.52 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 11 |
20-9410 |
TUBE-SUPPORT, CENTER Price: $53.40 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $4.99 |
| 13 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 34 |
3220-6 |
NUT-JAM Price: $1.25 |
| 35 |
98-2389 |
SPACER-LINK, PULL Price: $9.22 |
| 36 |
3296-24 |
NUT-HEX Price: $4.44 |
| 37 |
104-5895 |
SCREW-HH Price: $7.83 |
