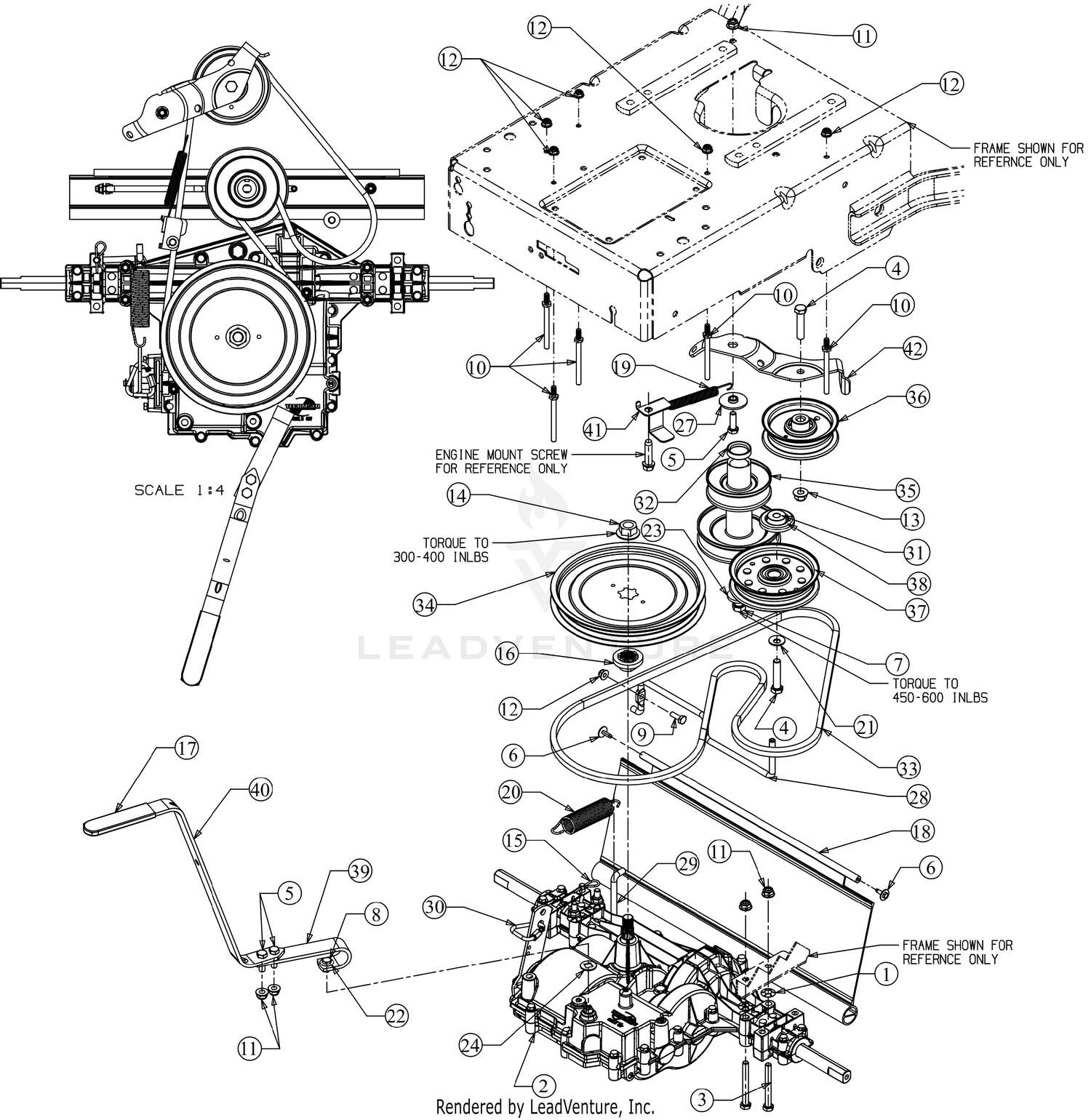

| Ref | Part Number | Description |
|---|
| 1 |
2000300 |
PUSH RETAINER 5/16 Price: $2.17 |
| 2 |
918-04639 |
TRANSMISSION ASSEMBLY Price: $809.51 |
| 3 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 4 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 5 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 6 |
710-04669 |
SCREW 10-16 x .625 Price: $2.98 |
| 7 |
710-04877 |
SCREW 7/16-20 x 3.00 GR5 Price: $7.44 |
| 8 |
710-0513A |
BOLT 1/4-28 x .625 GR5 Price: $4.04 |
| 9 |
710-3015 |
SCREW 1/4-20X.75 GR5 Price: $3.65 |
| 10 |
911-1000 |
BELT KEEPER Price: $9.62 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 13 |
712-04065 |
NUT Price: $3.68 |
| 14 |
712-0700 |
FLANGE NUT W/HUB Price: $10.12 |
| 15 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 16 |
718-04407 |
PULLEY HUB Price: $11.11 |
| 17 |
720-04191 |
GRIP-RED Price: $3.70 |
| 18 |
731-05766 |
WIDECUT TRAILSHIELD Price: $31.56 |
| 19 |
732-04409 |
EXTENSION SPRING WHEEL DRIVE Price: $7.78 |
| 20 |
732-04443A |
EXTENSION SPRING Price: $11.50 |
| 21 |
736-0105 |
BELL WASHER .400 ID x .88 x .060 Price: $3.96 |
| 22 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 23 |
736-0322 |
FLAT WASHER .445 x 1.248 x .170 Price: $8.42 |
| 24 |
736-04256 |
FLAT WASHER .390X.870X.060 Price: $6.01 |
| 26 |
737-3007 |
GREASE-#251 EP (NOT SERVICEABLE) Price: Call Us |
| 27 |
738-04166 |
SHOULDER SPACER Price: $5.48 |
| 28 |
747-04635A |
BELT KEEPER ROD Price: $43.12 |
| 29 |
747-04678A |
BRAKE ROD SPRING MOUNT Price: $12.21 |
| 30 |
747-05571 |
TRI LINK COUPLING Price: $22.27 |
| 31 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 32 |
750-05516 |
SPACER Price: $25.21 |
| 33 |
954-04145A |
TRANMISSION DRIVE BELT Price: $34.37 |
| 34 |
756-04258 |
TRANSMISSION PULLEY Price: $57.91 |
| 35 |
756-04260 |
ENGINE PULLEY Price: $81.86 |
| 36 |
756-04280A |
IDLER PULLEY Price: $36.29 |
| 37 |
756-05042 |
IDLER PULLEY 4.25 DIA Price: $25.54 |
| 38 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 39 |
787-01469B-4033 |
LOWER SHIFT LEVER Price: $41.42 |
| 40 |
787-01470A-4033 |
UPPER SHIFT LEVER Price: $49.86 |
| 41 |
787-01473A-0637 |
BELT KEEPER Price: $21.73 |
