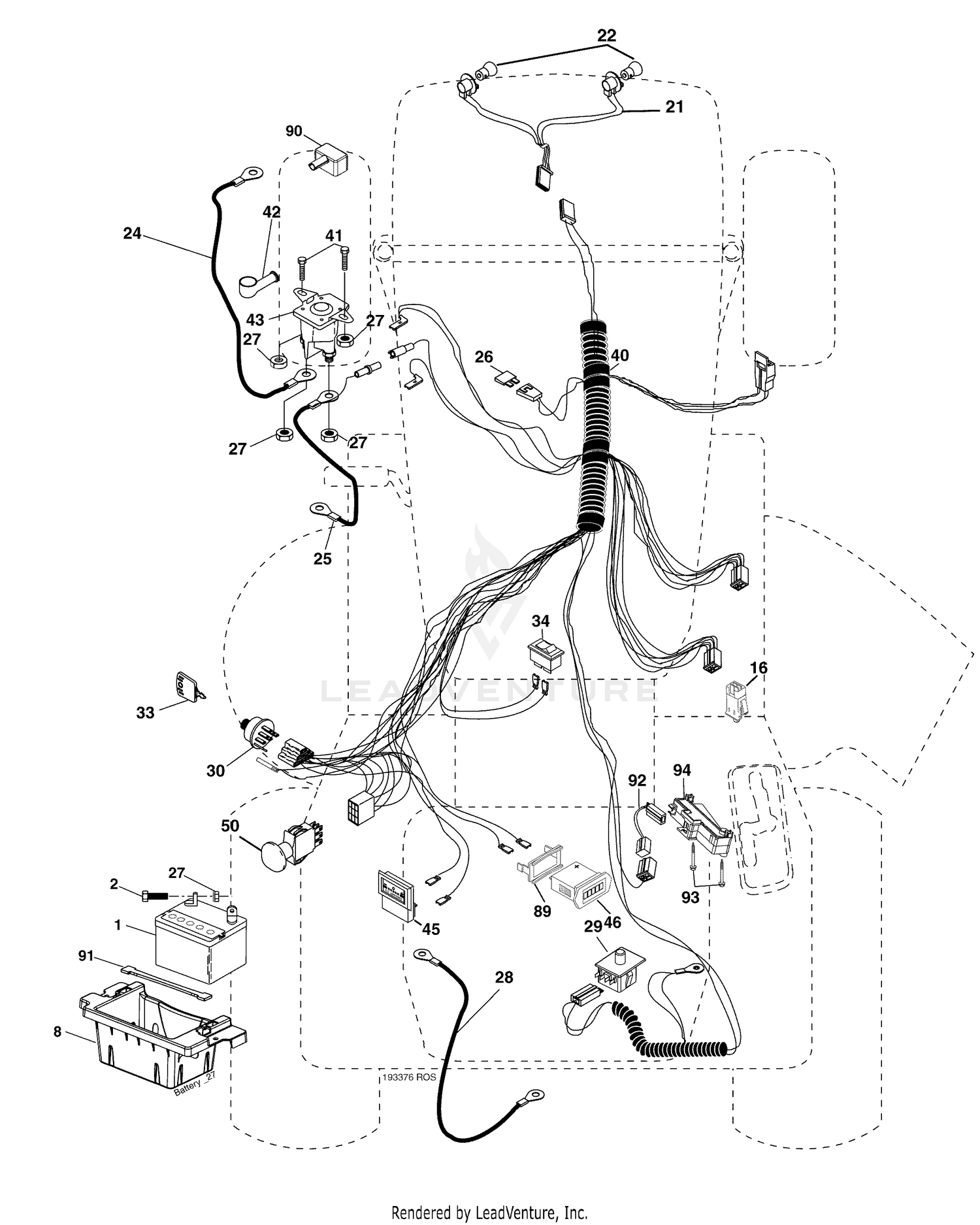

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 1 |
59-7580 |
NUT Price: $0.95 |
| 2 |
3253-6 |
WASHER-LOCK This part replaces 59-7590. Price: $0.39 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
59-7970 |
STUD Price: $17.00 |
| 4 |
69-2060 |
SHAFT END COVER ASM This part replaces 86-6010. Price: $1,123.41 |
| 5 |
59-7990 |
SEAL Price: $14.58 |
| 6 |
59-8470 |
RETAINER Price: $18.19 |
| 7 |
69-2070 |
PLATE-FLEX This part replaces 86-6070. Price: $311.23 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 8 |
69-2080 |
SECTION-CENTER This part replaces 86-6020. Price: $700.92 |
| 9 |
59-8590 |
SEAL Price: $31.34 |
| 10 |
59-8500 |
GEAR Price: $1,303.76 |
| 11 |
59-8600 |
GEAR Price: $470.56 |
| 11 |
74-3240 |
DRIVEN GEAR Price: $441.50 |
| 12 |
86-6080 |
O-RING Price: $4.40 |
| 13 |
86-6000-01 |
PUMP This part replaces 86-6030. Price: $2,799.05 |
| 14 |
59-8540 |
COUPLING Price: $240.01 |
| 15 |
69-2200 |
O-RING This part replaces 86-6040. Price: $17.77 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
86-6050 |
PLUG Price: $12.09 |
| 17 |
59-8570 |
SEAL Price: $45.56 |
| 18 |
59-8580 |
RING-RETAINING Price: $10.21 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532193376 |
HARNESS.IGN.ELECT.STL Price: $104.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 45 |
532122822 |
AMMETER Price: $17.99 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
| 50 |
582107604 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532196112. Price: $29.99 |
| 89 |
532169639 |
BRACKET SNAP-IN HOURMETER Price: $4.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 92 |
532193465 |
HARNESS.PIGTAIL.REVERSE.SWITCH Price: $7.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
