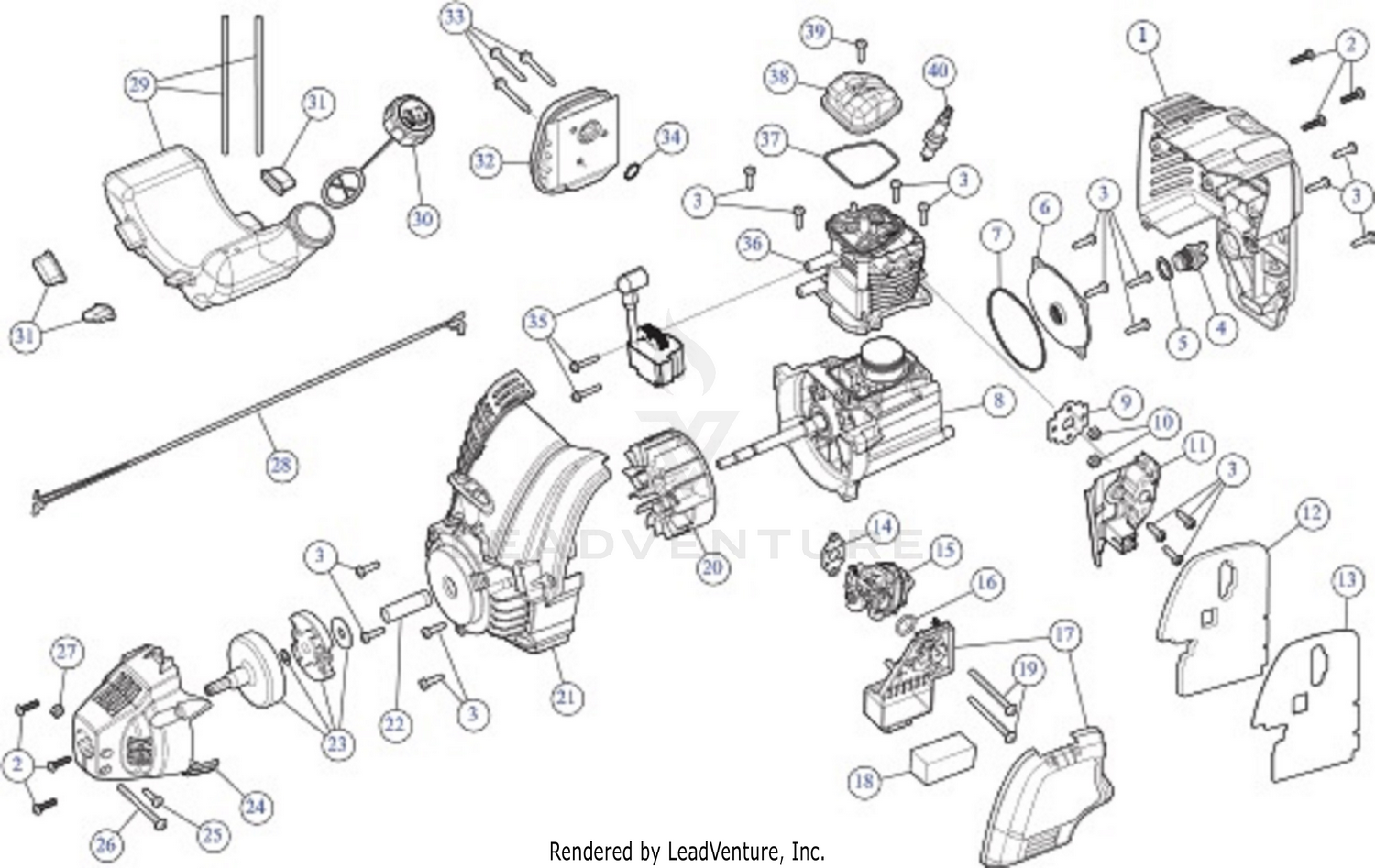

| Ref | Part Number | Description |
|---|
| 1 |
753-06134 |
Engine Cover Assembly (Incl. 2 & 3) Price: $9.43 |
| 2 |
710-04194 |
Cover Screw Price: $3.66 |
| 3 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 4 |
753-05408 |
Oil Plug (Incl. 5) Price: $25.95 |
| 5 |
791-182290 |
Oil Plug O-Ring Price: $4.29 |
| 6 |
841-020721S |
CRANKCASE COVER This part replaces 753-06111. Price: $11.71 |
| 7 |
753-05238 |
Crankcase Cover O-Ring Price: $9.20 |
| 8 |
753-06313 |
Crankcase Assembly (Incl. 7) Price: $46.46 |
| 9 |
753-05247 |
GASKET/INSULATOR Not Available Price: |
| 10 |
712-04099 |
Nut Price: $5.94 |
| 11 |
753-06947 |
Insulator Price: $6.42 |
| 12 |
753-06949 |
Heat Shield Price: $5.15 |
| 13 |
753-06948 |
Carburetor Gasket Price: $4.10 |
| 14 |
791-181709 |
Gasket Price: $4.30 |
| 15 |
753-08174 |
Carburetor Price: $30.56 |
| 16 |
791-181751 |
O-Ring Price: $3.92 |
| 17 |
753-05252 |
AIR CLEANER COVER Not Available Price: |
| 18 |
753-05254 |
Air Filter Price: $4.88 |
| 19 |
710-04517 |
Screw Price: $4.71 |
| 20 |
753-06221 |
Flywheel Assembly Price: $18.82 |
| 21 |
753-06314 |
Starter Housing Assembly (Incl. 3) Price: $26.73 |
| 22 |
750-04434 |
Powershaft Spacer Price: $5.91 |
| 23 |
753-06281 |
Clutch Assembly Price: $19.43 |
| 24 |
753-05263 |
Clutch Cover (Incl. 2) Price: $24.30 |
| 25 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 26 |
9689A |
Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 27 |
712-0161 |
Nut Price: $4.02 |
| 28 |
753-05264 |
Lead Wires Price: $14.70 |
| 29 |
753-06797 |
Fuel Tank Assembly w/Fuel Lines (Incl. 30) Price: $19.20 |
| 30 |
753-1229 |
Fuel Tank Cap Price: $19.90 |
| 31 |
753-05259 |
Fuel Tank Pads Price: $5.72 |
| 32 |
753-05245 |
Muffler Assembly (Incl. 33 & 34) Price: $81.50 |
| 33 |
710-04809 |
SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 34 |
753-05244 |
Muffler Gasket Price: $5.11 |
| 35 |
753-08208 |
Module Assembly Price: $23.34 |
| 36 |
753-06311 |
CYLINDER ASSEMBLY Not Available Price: |
| 37 |
753-05902 |
Rocker Cover O-Ring Price: $4.58 |
| 38 |
753-05901 |
Rocker Cover Price: $7.13 |
| 39 |
791-181025 |
Rocker Cover Screw Price: $2.44 |
| 40 |
794-00082 |
Spark Plug This part replaces 794-00043. Price: $6.35 |
