| Ref | Part Number | Description |
|---|

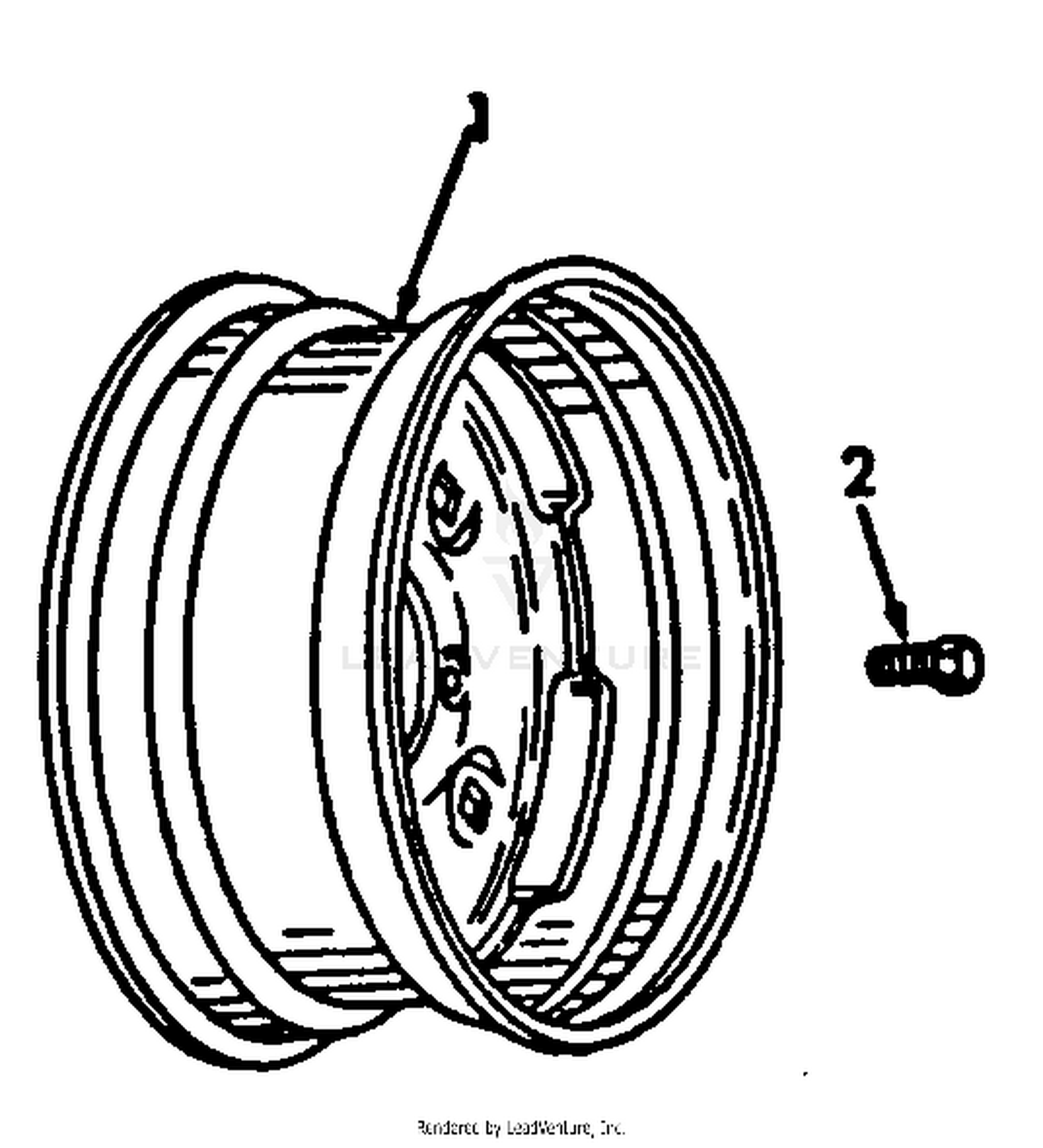

| 1 |
532125122 |
Rim Assembly, Rear Price: $103.99 |
| 1 |
734-3013 |
WHEEL RIM-R Not Available Price: |
| 2 |
532420531 |
TIRE.18X9.5-8 TURF SAVER This part replaces 532106268. Price: $73.99 |
| 3 |
532007152 |
Tube This part replaces 532124926. Price: $40.99 |
| 4 |
532109502 |
Spacer, Split Price: $3.99 |
| 5 |
532123583 |
Key, Square Price: $2.69 |
| 6 |
532120898 |
Transaxle, Foote, Model No. 4360-7, 6-Speed Price: $668.54 |
| 7 |
810040400 |
Washer, Lock 1/4 Price: $3.99 |
| 8 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 9 |
532121274 |
Knob, Control Price: $5.99 |
| 10 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 11 |
532106919 |
Plate, Rod, Shift Price: $11.90 |
| 12 |
532124461 |
Rod, Shifter Price: $8.59 |
| 13 |
532105700 |
Spring, Torsion Price: $4.60 |
| 14 |
819151216 |
Washer 15/32 x 3/4 x 16 Ga. Price: Call Us |
| 15 |
876020416 |
Pin, Cotter 1/8 x 1 Price: $3.99 |
| 16 |
532105701 |
Washer, Shift Plate Price: $3.99 |
| 17 |
871040412 |
Bolt, Hex 14-28 x 3/4 Gr. 8 Price: $3.99 |
| 18 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 19 |
532131867 |
ROD This part replaces 532110437. Price: $23.69 |
| 20 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 21 |
532121520 |
Strap, Torque Price: $3.99 |
| 22 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 23 |
532109167 |
Bracket, Transaxle Price: $2.86 |
| 24 |
532002267 |
Ring, Retaining This part replaces 812000028. Price: $3.99 |
| 25 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 26 |
532125096 |
Key, Woodruff # 9 3/16 x 3/4 Price: $3.99 |
| 27 |
532123666 |
Pulley, Input, Transaxle Price: $22.99 |
| 28 |
532059192 |
Cap, Valve Price: $3.99 |
| 29 |
532065139 |
Stem, Valve Price: $5.99 |
| 30 |
812000001 |
E-Ring Price: $2.99 |
| 31 |
874760644 |
Bolt, Hex 3/8-16 x 2-3/4 Price: $3.99 |
| 32 |
873680600 |
Nut 3/8-16 Price: $1.99 |
| 33 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 874760612. Price: $3.99 |
| 34 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 35 |
532104757 |
Cap, Axle Price: $1.99 |
| 36 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 37 |
532146682 |
Spring Return Brake This part replaces 532110422. Price: $4.99 |
| 38 |
532002751 |
Clip Line Fuel 13/32 Mtg Hole This part replaces 532124996. Price: $2.42 |
| 40 |
819111214 |
Washer 11/32 x 3/4 x 14 Ga. Price: Call Us |
