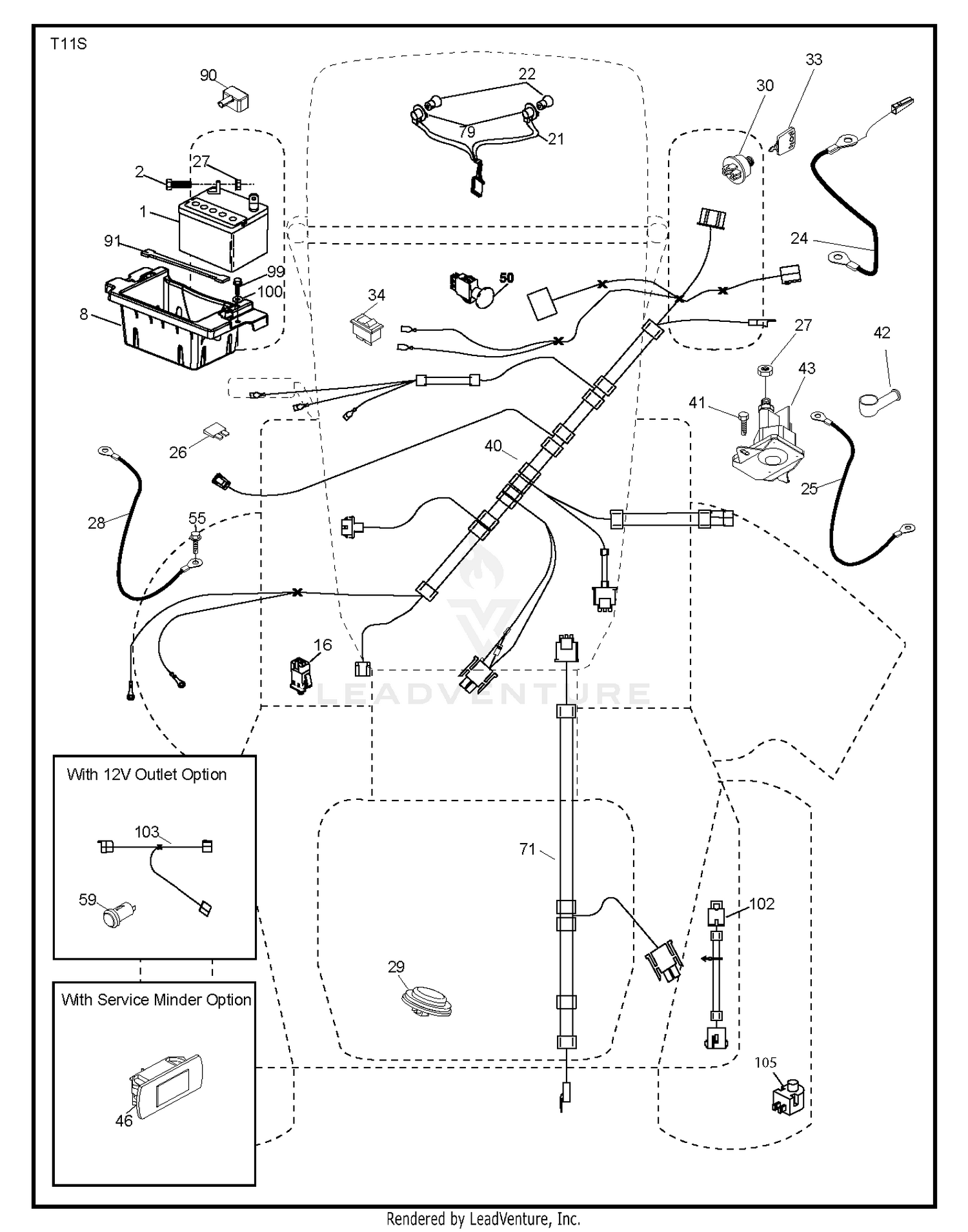

| Ref | Part Number | Description |
|---|
| 1 |
322-6 |
SCREW-HH Price: $0.45 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
32151-73 |
RING-CLIP Price: $2.59 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 4 |
323-7 |
SCREW-HH Price: $0.65 |
| 5 |
92-7761 |
DISCONTINUED Price: Call Us |
| 6 |
237-161 |
O-RING Price: $6.06 |
| 7 |
86-5590 |
DISCONTINUED Price: Call Us |
| 8 |
3213-2 |
SCREW-HH Price: $1.90 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 10 |
84-1380-03 |
ANCHOR-SPRING This part replaces 84-1380. Price: $75.43 |
| 11 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 12 |
76-9430-03 |
SPRING-EXTENTION This part replaces 76-9430. Price: $28.14 |
| 13 |
84-1480 |
HOSE-DAMPENER Price: $12.04 |
| 14 |
323-29 |
SCREW-HH Price: $0.42 |
| 15 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
63-8410 |
WASHER Price: $1.76 |
| 18 |
3296-9 |
NUT-HEX Price: $0.25 |
| 19 |
322-10 |
SCREW-HH Price: $0.70 |
| 20 |
82-5180-03 |
CONTROL-PUMP This part replaces 82-5180. Price: $134.08 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 21 |
63-9751 |
DISCONTINUED Price: Call Us |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
88-1470 |
DISCONTINUED Price: Call Us |
| 23 |
86-3020 |
DISCONTINUED Price: Call Us |
| 24 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 28 |
82-5280 |
SHAFT-PIVOT Price: $51.63 |
| 29 |
251-259 |
BEARING-BALL Price: $13.67 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
322-7 |
SCREW-HH Price: $0.89 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 32 |
84-0750 |
DISCONTINUED Price: Call Us |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 33 |
86-5940 |
SPACER-BEARING, UPPER Price: $5.16 |
| 34 |
323-47 |
SCREW-HH Price: $1.22 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 37 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 38 |
100-2592 |
SCREW-HHF This part replaces 66-9303. Price: $9.09 |
| 39 |
86-3040 |
COUPLER-LINE, DRIVE Price: $381.88 |
| 40 |
253-43 |
SEAL-OIL Price: $31.16 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 41 |
84-1330 |
DISCONTINUED Price: Call Us |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 43 |
84-1030 |
DISCONTINUED Price: Call Us |
| 44 |
84-0170-03 |
PULLEY-PTO This part replaces 84-0170. Price: $874.74 |
| 45 |
251-314 |
BEARING-BALL Price: $102.23 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 46 |
86-2830-03 |
PLATE-ADAPTER, MAIN This part replaces 86-2830. Price: $409.90 |
| 47 |
88-1440 |
WASHER-LOCK Price: $14.32 |
| 48 |
88-1430 |
LOCKNUT-BEARING Price: $30.40 |
| 49 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 50 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 51 |
92-2581 |
DISCONTINUED Price: Call Us |
| 52 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 53 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 54 |
3220-3 |
NUT-HJ Price: $0.28 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 55 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 56 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 57 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 58 |
324-4 |
SCREW-HH Price: $0.95 |
| 59 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 60 |
84-1500 |
DISCONTINUED Price: Call Us |
| 61 |
82-5240-03 |
PIVOT PLATE This part replaces 82-5240. Price: $13.33 |
| 62 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 63 |
76-9760 |
DAMPER-PIVOT Price: $96.95 |
| 64 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 65 |
80-7730 |
SPACER Price: $1.97 |
| 66 |
92-1351 |
DISCONTINUED Price: Call Us |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532407962 |
HARNESS PIGTAIL 12V OUTLET Price: $8.99 |
