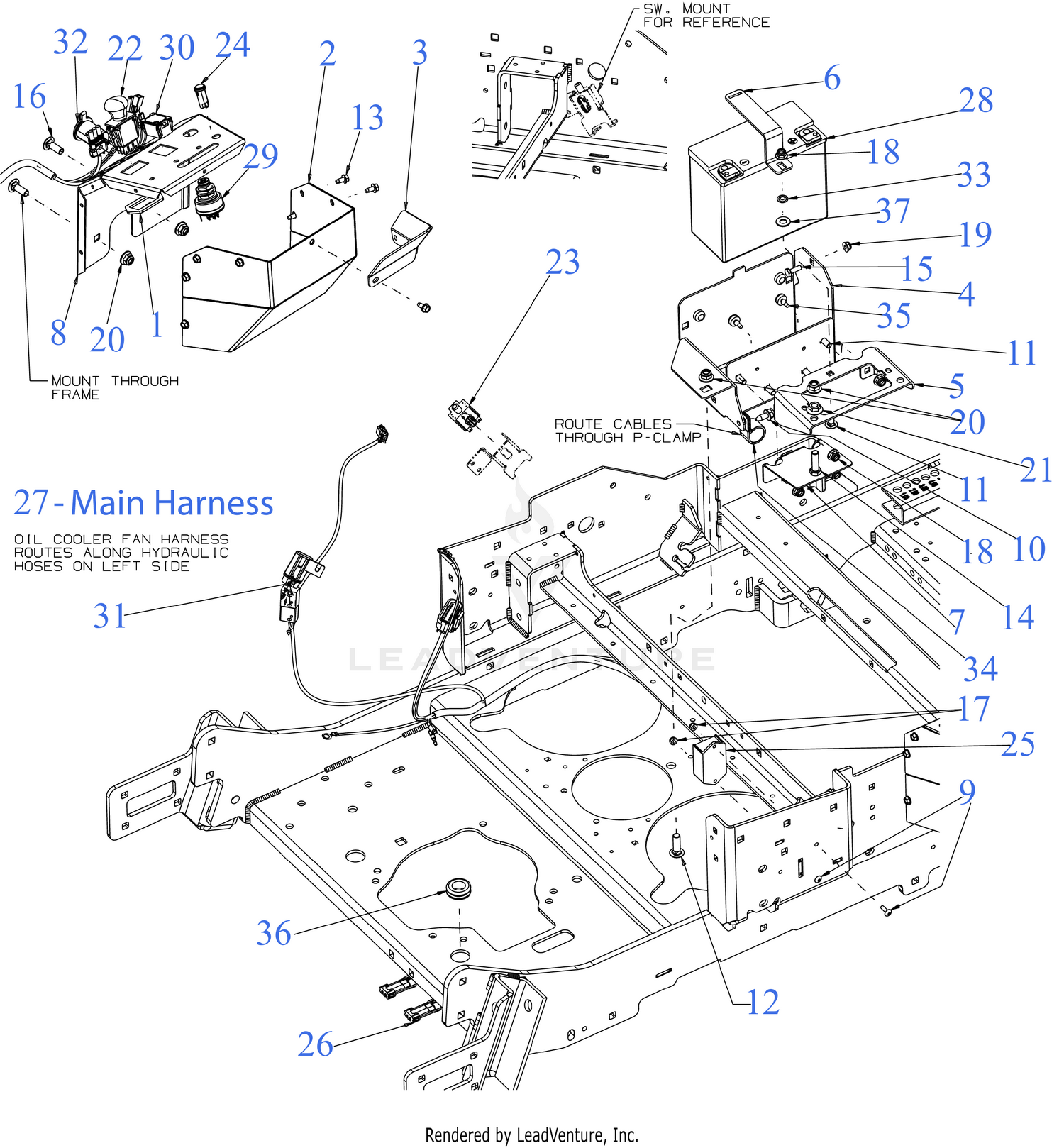

| Ref | Part Number | Description |
|---|
| 1 |
01009905 |
BRACKET-PTO SWITCH Price: $23.90 |
| 6 |
703E21965 |
BATTERY SUPPORT BRACKET Price: $9.29 |
| 7 |
703E26842 |
HARNESS GUARD PLATE Price: $10.76 |
| 9 |
710-0425 |
SCREW #10-24 x .62 Price: $4.21 |
| 10 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 11 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 12 |
710-05408 |
CARRIAGE BOLT 3/8-16 X1.25 GR5 Price: $3.37 |
| 13 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 14 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 15 |
710-3015 |
SCREW 1/4-20X.75 GR5 Price: $3.65 |
| 16 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 17 |
712-0161 |
HEX NUT Price: $4.02 |
| 18 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 19 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 20 |
712-04065 |
NUT Price: $3.68 |
| 21 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 22 |
925-04174A |
PTO SWITCH (BLACK KNOB) TEXT SYM Price: $62.00 |
| 24 |
725-04660 |
INDICATOR LIGHT-RED Price: $28.06 |
| 25 |
725-06308 |
CONTROL PANEL (SOFT CLUTCH) Price: $270.62 |
| 26 |
725-06945 |
SEALED CAP ASSEMBLY Price: $7.72 |
| 27 |
725P12725A |
MAIN HARNESS Price: $417.30 |
| 28 |
725P13306 |
BATTERY (300 CCA) Price: $131.90 |
| 29 |
725P13545 |
KEY SWITCH Price: $75.15 |
| 30 |
725P17252 |
HOUR METER Price: $90.03 |
| 31 |
725P18773 |
ADAPTER HARNESS KAW EFI Price: $288.84 |
| 32 |
725-2003 |
POWER RECEPTICAL Price: $37.53 |
| 33 |
726-0201 |
PUSH NUT Price: $6.01 |
| 34 |
726-0475 |
HOSE CLAMP 1.0" Price: $12.11 |
| 35 |
735-0271A |
BUMPER, .62 DIA x .3 Price: $7.84 |
| 36 |
735-04285 |
RUBBER GROMMET Price: $3.37 |
