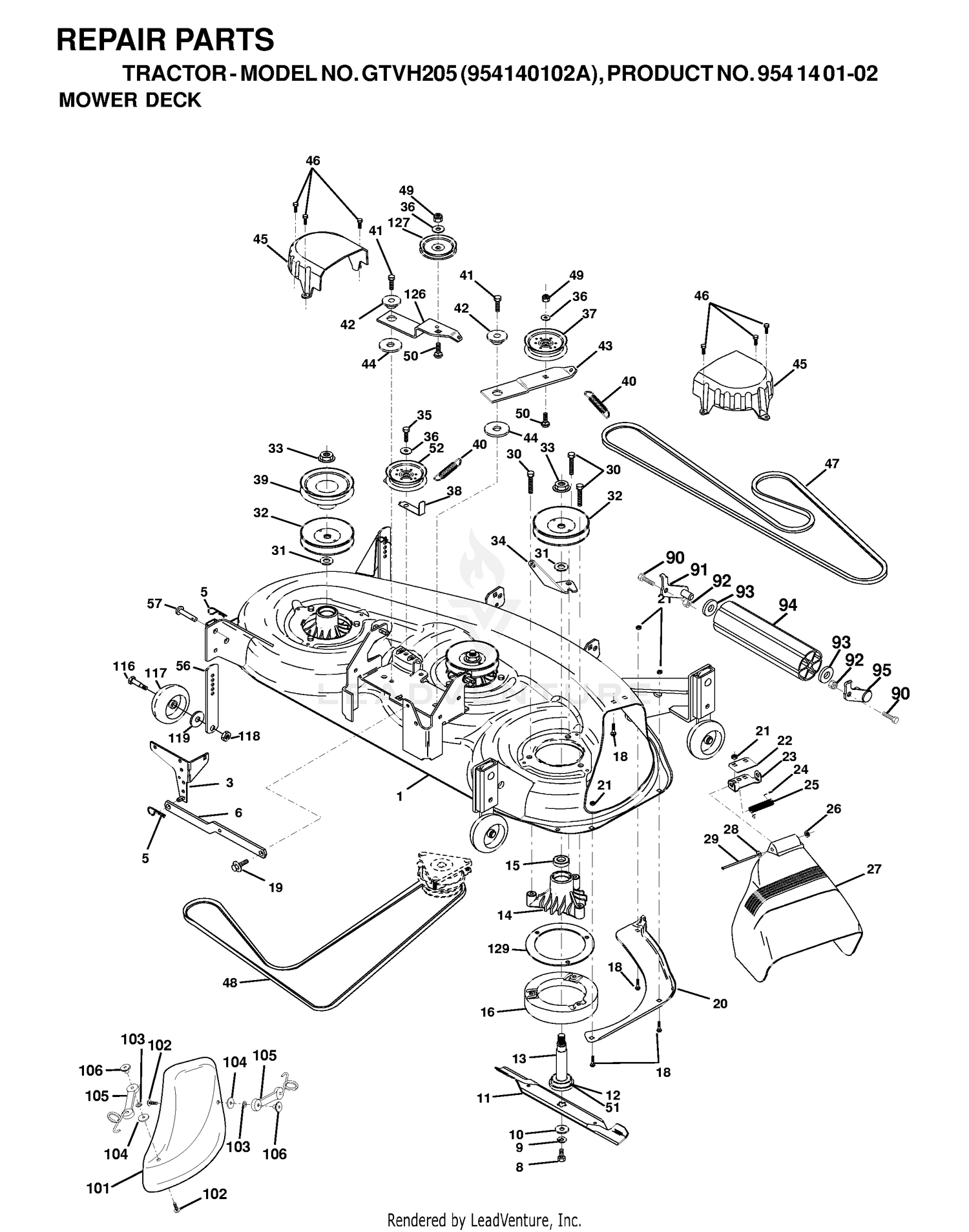

| Ref | Part Number | Description |
|---|
| 3 |
110-8771 |
ORIFICE-.020 Price: $18.23 |
| 3 |
532138457 |
BRACKET SWAY BAR Price: $9.99 |
| 4 |
106-1024 |
PLUG-LEAK, ZERO Price: $14.21 |
| 5 |
106-1025 |
PLUG-HYD Price: $9.96 |
| 6 |
353-512 |
PLUG Price: $15.26 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 7 |
106-1026 |
PLUG-HYD Price: $11.75 |
| 8 |
110-8770 |
LOGIC ELEMENT Price: $216.15 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
147-3068 |
VALVE-CONTROL, MANUAL FLOW This part replaces 110-8769. Price: $282.59 |
| 10 |
110-8768 |
VALVE-RELIEF, SOLENOID Price: $496.72 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
110-8767 |
ROTARY HANDLE ASM Price: $204.19 |
| 11 |
532176084 |
BLADE.46".HI-LIFT.PREMIUM This part replaces 532170698. Price: $22.99 |
| 12 |
117-0108 |
SPOOL-ROTARY Price: $146.02 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
112-6532 |
RING-RETAINING Price: $6.00 |
| 13 |
532137553 |
SHAFT.ASM.W/BEARING Price: $32.99 |
| 14 |
112-6531 |
PIN-SPRING Price: $5.56 |
| 14 |
532137152 |
HOUSING.MANDREL.44/46" VENT Price: $34.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 16 |
72-4310 |
SWITCH-BALL Price: $84.47 |
| 17 |
110-8762 |
BALL-CHROME Price: $10.30 |
| 18 |
112-6533 |
PIN-DOWEL This part replaces 110-8761. Price: $13.30 |
| 19 |
110-6344 |
COIL-12V, DC Price: $141.08 |
| 20 |
353-508 |
PLUG-HH Price: $7.96 |
| 20 |
531154201 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532145055. Price: $6.99 |
| 21 |
110-8760 |
ORIFICE-.073 Price: $18.23 |
| 22 |
110-8759 |
VALVE-CHECK Price: $175.21 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 23 |
106-1027 |
PLUG-HYD Price: $14.63 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532131267. Price: $4.99 |
| 24 |
110-8757 |
O-RING Price: $2.67 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION This part replaces 532149287. Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 32 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 34 |
532144945 |
ANCHOR, SPRING DECK 46" Price: $4.99 |
| 37 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 38 |
532156086 |
KEEPER.BELT.IDLER Price: $5.99 |
| 39 |
532144917 |
PULLEY.DRIVEN.DECK.46" Price: $27.99 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 43 |
532144949 |
ARM IDLER DECK 46" Price: $4.99 |
| 44 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 45 |
532145059 |
COVER MANDREL 46 Price: $14.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 532171253. Price: $3.99 |
| 47 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 48 |
532148763 |
V-BELT PRIMARY 50" Price: $54.99 |
| 51 |
532153390 |
WASHER FELT Price: $3.99 |
| 52 |
532173901 |
PULLEY.IDLER.FLAT.46".PRIMARY This part replaces 532156493. Price: $27.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $7.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531154101 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532132273. Price: $12.99 |
| 101 |
532145579 |
COVER.MULCH.46"3-BLADE.(2 2) Price: $21.99 |
| 102 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 103 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 104 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 105 |
819061216 |
WASHER Price: $3.99 |
| 106 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 126 |
532144948 |
ARM IDLER PRIM 46 Price: $4.99 |
| 127 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 532152443 |
532152443 |
MULCH BLADE 46" Price: $17.99 |
