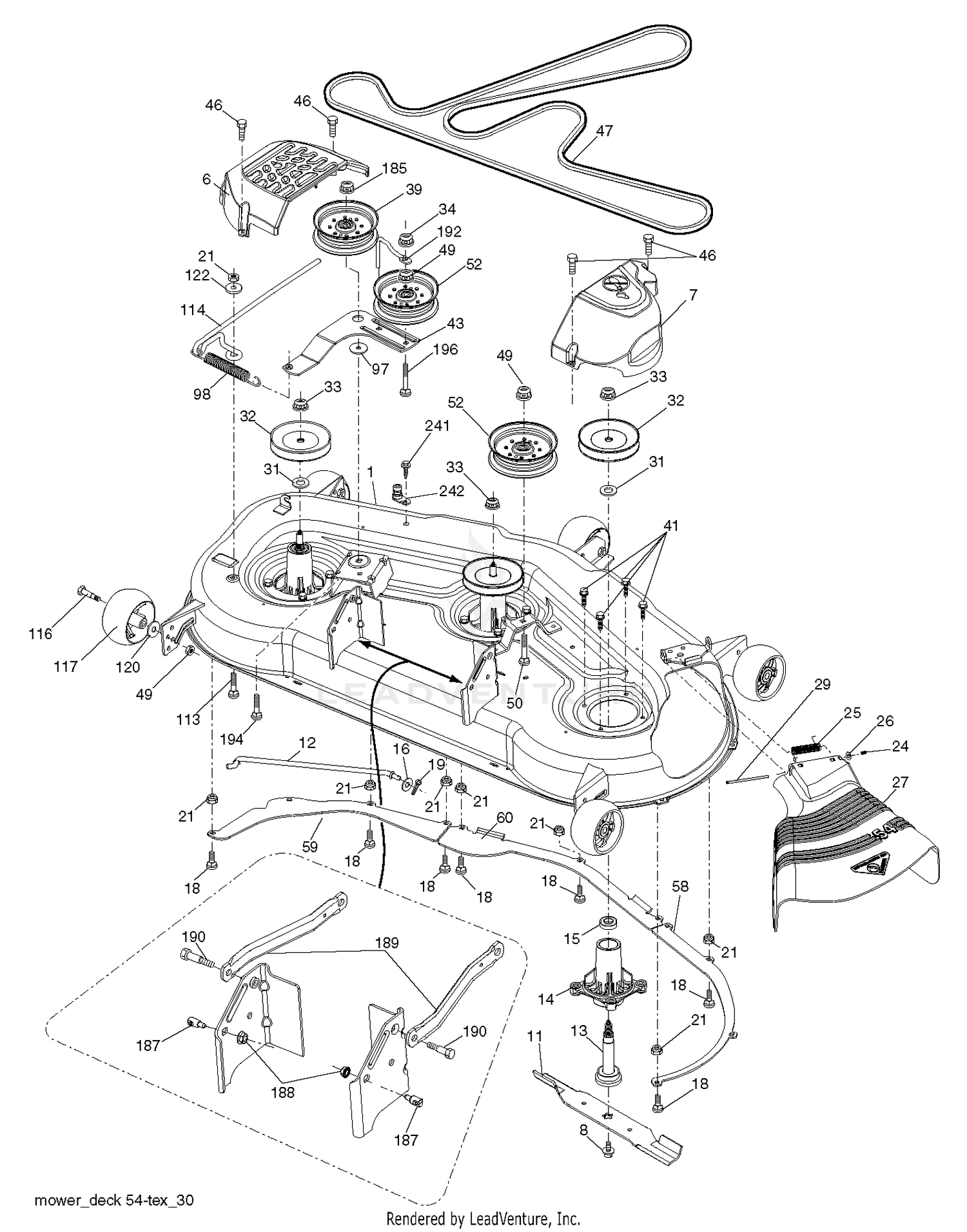

| Ref | Part Number | Description |
|---|
| 1 |
532199298 |
DECK.SVC.54".5GWB.GREY This part replaces 532441547. Price: $449.99 |
| 1 |
67-4400 |
BOLT Price: $3.16 |
| 2 |
67-4520 |
PIPE Price: $118.49 |
| 3 |
67-4540 |
O-RING Price: $4.15 |
| 4 |
42-7510 |
DISCONTINUED Price: Call Us |
| 5 |
67-4530 |
INTAKE SUB-ASM COVER Price: $70.93 |
| 6 |
532196066 |
COVER.MANDREL.LH.54"20 Price: $22.99 |
| 6 |
67-2750 |
COVER ASSEMBLY Price: $375.29 |
| 7 |
42-9430 |
SCREW-HH Price: $0.30 |
| 7 |
532197181 |
COVER.MANDREL.RH.54.20 Price: $27.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
67-2670 |
DISCONTINUED Price: Call Us |
| 9 |
42-7510 |
DISCONTINUED Price: Call Us |
| 10 |
67-2660 |
O-RING Price: $6.73 |
| 11 |
67-2650 |
OIL FILTER CAP ASSEMBLY Price: $20.14 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 12 |
67-2770 |
DISCONTINUED Price: Call Us |
| 13 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 13 |
67-2780 |
WASHER Price: $1.35 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 14 |
67-2760 |
GASKET Price: $25.95 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
67-2740 |
FLANGE BOLT This part replaces 67-2140. Price: $7.07 |
| 16 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 16 |
67-2680 |
ENGINE HANGER Price: $9.36 |
| 17 |
67-2340 |
BOLT W/WASHER Price: $2.19 |
| 18 |
56-0020 |
EXPANSION PLUG Price: $14.38 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 19 |
86-6240 |
PLUG-TAPERED This part replaces 67-2570. Price: $5.11 |
| 20 |
70-8750 |
DISCONTINUED Price: Call Us |
| 21 |
42-9110 |
GASKET Price: $29.21 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
42-9570 |
STUD Price: $2.57 |
| 23 |
60-7370 |
BOLT This part replaces 67-4590. Price: $2.75 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
70-8670 |
CYLINDER HEAD GASKET Price: $228.72 |
| 25 |
112-8435 |
GASKET-EXHAUST MANIFOLD This part replaces 67-4570. Price: $9.18 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 27 |
70-8660 |
DISCONTINUED Price: Call Us |
| 28 |
93-3526 |
SWITCH This part replaces 67-4500. Price: $177.42 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
93-3527 |
GASKET This part replaces 67-4490. Price: $4.82 |
| 30 |
67-4460 |
GASKET-FITTING, THERMOSTAT Price: $4.73 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
67-4450 |
FITTING-THERMOSTAT Price: $266.48 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 32 |
67-4470 |
DISCONTINUED Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 33 |
67-2330 |
BOLT Price: $2.25 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 34 |
67-4510 |
GUAGE-TEMP, WATER Price: $151.90 |
| 35 |
43-2710 |
O-RING Price: $6.47 |
| 36 |
67-4480 |
BY-PASS PIPE Price: $15.39 |
| 37 |
67-5050 |
THERMOSTAT (F/W) Price: $85.97 |
| 38 |
92-0844 |
GLOW PLUG This part replaces 92-2539. Price: $46.17 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH This part replaces 532197380. Price: $37.99 |
| 39 |
67-4690 |
GLOW PLUG PLATE Price: $11.69 |
| 40 |
99-1801 |
CAP - SEALING (DIA 20) This part replaces 67-2710. Price: $13.58 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 41 |
67-2700 |
VALVE GUIDE Price: $30.99 |
| 42 |
67-2730 |
BOLT Price: $13.81 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 43 |
67-4550 |
INTAKE MANIFOLD GASKET Price: $15.80 |
| 44 |
67-4430 |
GASKET-FITTING, WATER OUTLET Price: $4.75 |
| 45 |
67-4420 |
DISCONTINUED Price: Call Us |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
67-2330 |
BOLT Price: $2.25 |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 This part replaces 532196103. Price: $54.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 58 |
531168601 |
SERVICE KIT BAFFLE.RIGHT.54" This part replaces 532187342. Price: $12.99 |
| 59 |
531168701 |
SERVICE KIT BAFFLE.LEFT.54" BA This part replaces 532187344. Price: $19.99 |
| 60 |
531168801 |
SERVICE KIT BAFFLE BAFFLE CENT This part replaces 532187607. Price: $19.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 120 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 188 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 189 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $9.99 |
| 196 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 532199298 |
DECK.SVC.54".5GWB.GREY |
This part replaces 532199300. Price: $449.99 532199298 |
