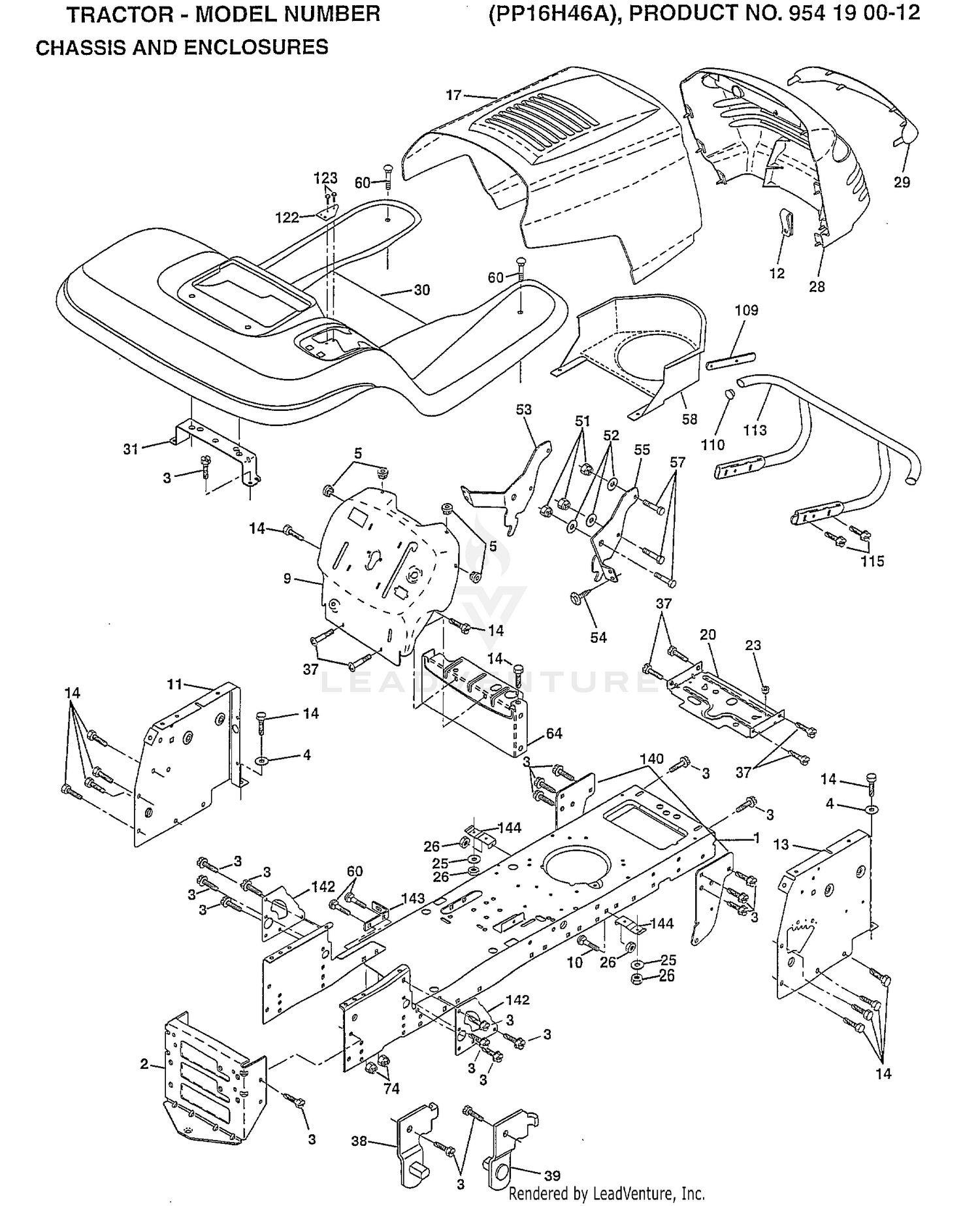

| Ref | Part Number | Description |
|---|
| 1 |
108-2017-03 |
PLATE-PANEL, CONTROL Price: $54.58 |
| 1 |
153871 |
SUB= 160525 Price: Call Us |
| 2 |
108-2018 |
DECAL-PANEL, CONTROL Price: $36.89 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
112-6349 |
SCREW-HWH Price: $0.27 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
100-8070 |
LAMP-WARNING Price: $38.50 |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 6 |
108-6581 |
COVER ASM Price: $97.98 |
| 7 |
108-2024 |
HINGE Price: $54.81 |
| 8 |
32149-8 |
NUT-KEPS Price: $0.88 |
| 9 |
100-8071 |
LAMP-WARNING Price: $38.50 |
| 9 |
154793X010 |
DASH SLKSCR Price: Call Us |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 10 |
93-9999 |
SWITCH-PTO Price: $42.99 |
| 11 |
161-7350 |
IGNITION SWITCH ASM This part replaces 106-5269. Price: $56.32 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 16 |
98-9321 |
RING-KEY Price: $1.80 |
| 17 |
108-8657 |
HARNESS-WIRE, SEAT Price: $19.96 |
| 17 |
139394X428 |
SUB= 159639X428 Price: Call Us |
| 18 |
108-2013 |
PAD-RUBBER Price: $8.15 |
| 19 |
108-6580 |
SEAT PLATE ASM Price: $230.31 |
| 20 |
108-6596 |
FUEL TANK ASM Price: $921.72 |
| 21 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 22 |
233-70 |
KNOB-STAR, THREE Price: $22.14 |
| 23 |
108-2027-03 |
COVER-BYPASS Price: $16.62 |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 24 |
240-5 |
GROMMET Price: $13.66 |
| 25 |
105-2511 |
DECAL-INSTRUCTIONS, STARTING Price: $49.24 |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 26 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 27 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 28 |
2412-133 |
CLAMP-R Price: $3.19 |
| 29 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 30 |
151287X505 |
FENDER/FOOTREST Price: Call Us |
| 30 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 31 |
139976 |
BRACKET SUPT FEND Price: Call Us |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 33 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 34 |
32128-20 |
NUT-HF Price: $0.99 |
| 35 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 36 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 37 |
3212-4 |
SCREW-HH Price: $2.73 |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 38 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 39 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 40 |
120-6555 |
SCREW-THUMB This part replaces 108-8689. Price: $10.99 |
| 41 |
321-9 |
SCREW-HH Price: $0.27 |
| 42 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 43 |
108-9688 |
SPACER Price: $5.63 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 60 |
72140606 |
BOLT Price: Call Us |
| 64 |
154798 |
DASH-LOWER Price: Call Us |
| 74 |
73680600 |
SUB= 73690600 Price: Call Us |
| 109 |
141461 |
BRACKET.EXT.BUMP. Price: Call Us |
| 110 |
143679 |
PLUG.PLASTIC Price: Call Us |
| 113 |
150300 |
BUMPER.ASM Price: Call Us |
| 115 |
17490620 |
SCREW Price: Call Us |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
| 142 |
156095 |
PLATE.REINFORCEMT Price: Call Us |
| 144 |
154207 |
BRKT-FOOTREST Price: Call Us |
