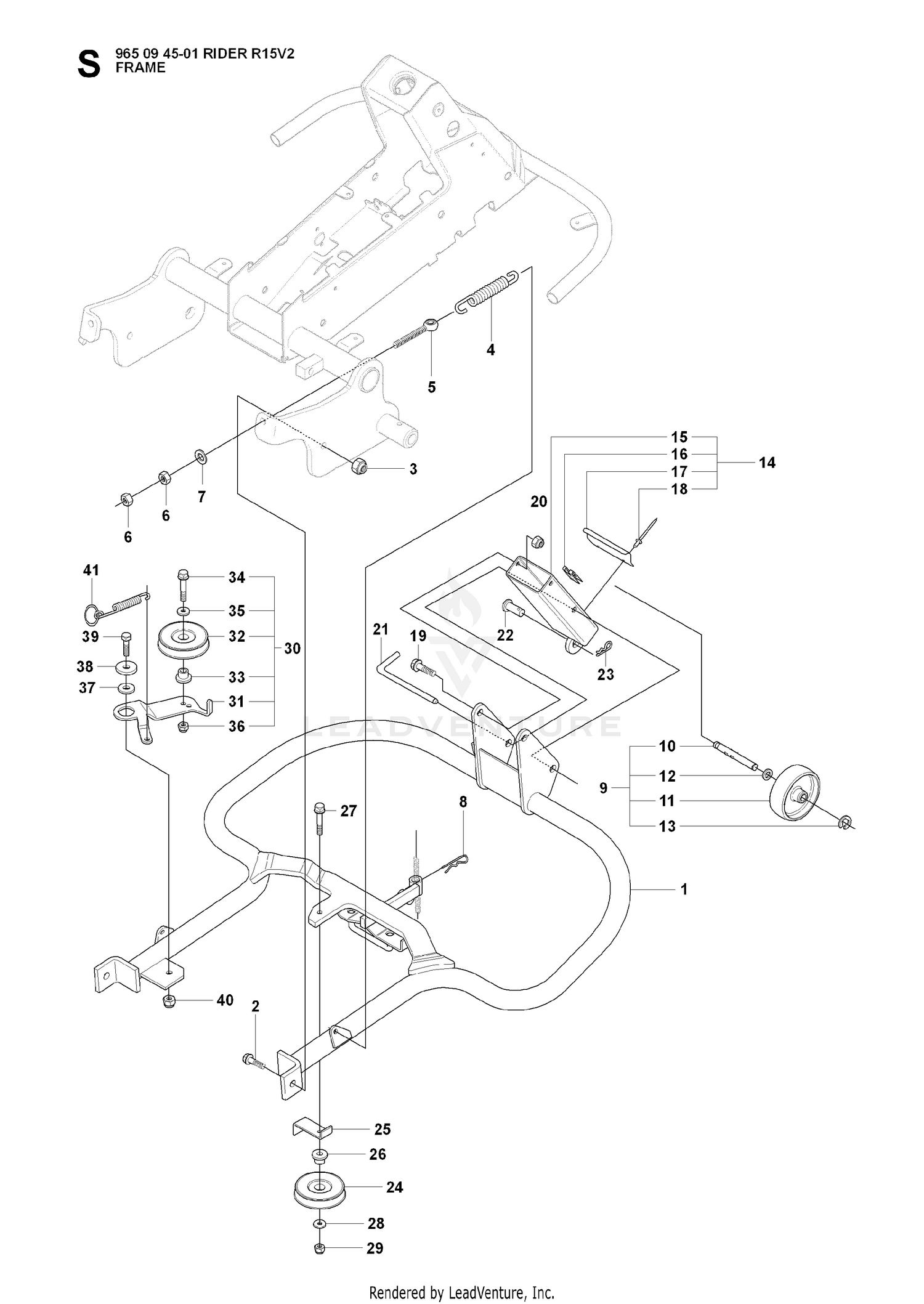

FRAME
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-8294-0P | TUBE-LONG This part replaces 115-8294-03. Price: $233.63 |
| 1 | 535471001 | FRAME Price: $379.99 |
| 2 | 114-5407 | SHAFT-LONG, REAR ROLLER Price: $84.05 |
| 2 | 506895801 | BOLT Price: $6.99 |
| 3 | 114-3717 | SEAL-OIL Price: $2.77 |
| 3 | 732252201 | Nut Price: $2.65 |
| 4 | 112-5290 | BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 | 506837601 | SPRING Price: $27.99 |
| 5 | 112-7494 | SEAL Price: $6.37 |
| 5 | 506837701 | SCREW Price: $8.99 |
| 6 | 114-5411 | NUT-LOCK, BEARING Price: $24.46 |
| 6 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 8 | 506966601 | RETAINER Price: $3.99 |
| 9 | 506981401 | WHEEL ASSY Price: $11.99 |
| 10 | 506980001 | SHAFT Price: $17.99 |
| 11 | 506979601 | WHEEL Price: $19.99 |
| 12 | 734117771 | BUSHING Price: $3.99 |
| 13 | 735311520 | RETAINING RING Price: $2.99 |
| 14 | 506997801 | LINK ASSY Price: $39.99 |
| 15 | 506997901 | LINK Price: $84.99 |
| 16 | 506963701 | BRACKET Price: $5.99 |
| 17 | 506982801 | BRACKET Price: $6.99 |
| 18 | 722783902 | Rivet Price: $1.99 |
| 19 | 506597401 | BOLT Price: $5.99 |
| 20 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 21 | 506974601 | PIN Price: $19.99 |
| 22 | 721861701 | BOLT Price: $8.99 |
| 23 | 721680251 | R-CLIP Price: $4.99 |
| 24 | 506974801 | PULLEY Price: $44.99 |
| 25 | 506975001 | Guide Price: $9.25 |
| 27 | 725246151 | BOLT Price: $4.99 |
| 28 | 734116441 | SPACER Price: $3.99 |
| 29 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 30 | 506976201 | BELT TENSIONER ASSY Price: $74.99 |
| 31 | 506976301 | ARM Price: $37.99 |
| 32 | 506532701 | PULLEY Price: $39.99 |
| 33 | 506826801 | BUSHING Price: $14.99 |
| 34 | 725245751 | SCREW Price: $4.99 |
| 35 | 734116441 | SPACER Price: $3.99 |
| 36 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 37 | 506597501 | WASHER Price: $6.99 |
| 38 | 506982501 | Washer Price: $6.01 |
| 39 | 725249571 | SCREW Price: $6.99 |
| 40 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 41 | 594020601 | Springs This part replaces 506976801. Price: $14.99 |
