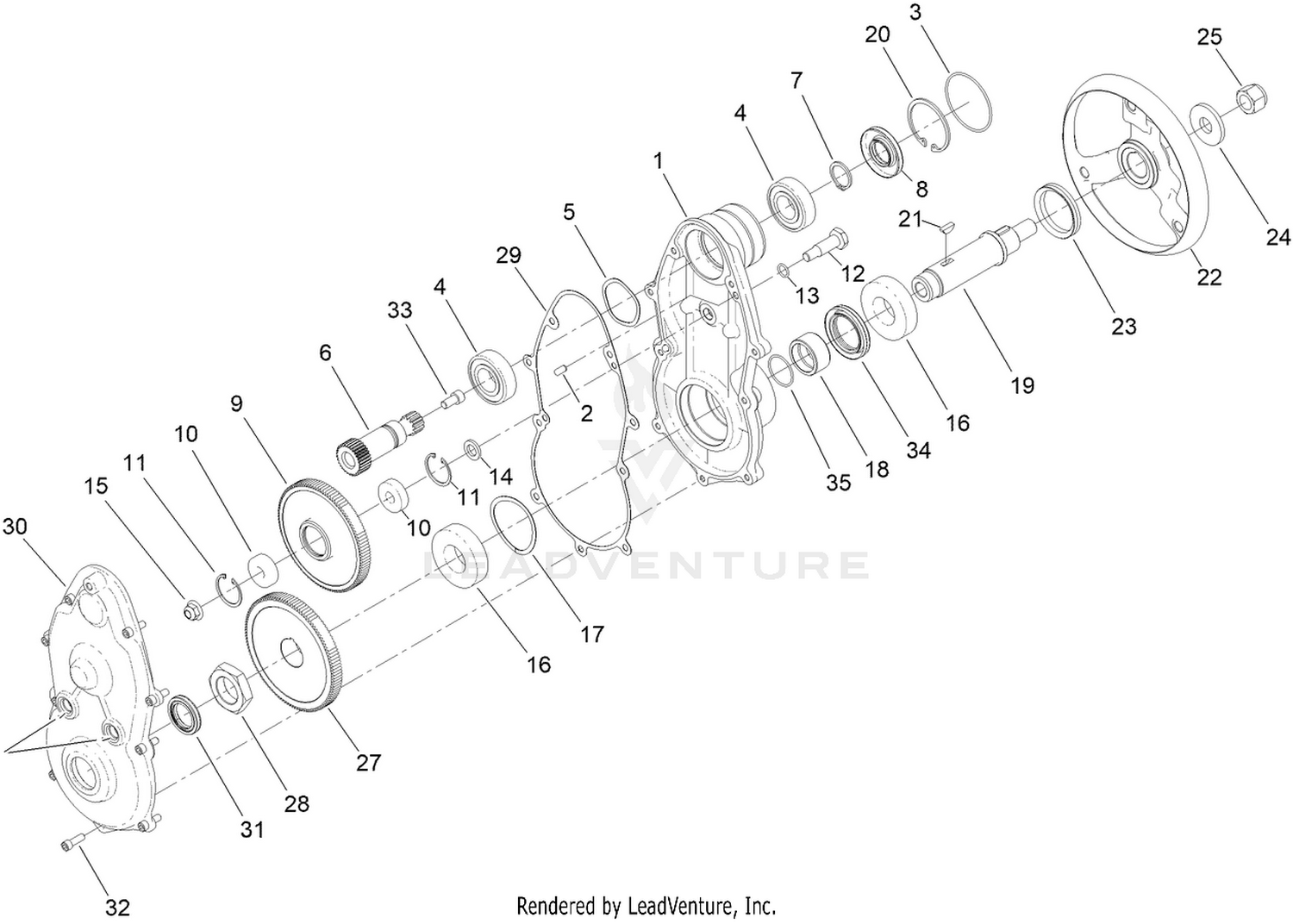

| Ref | Part Number | Description |
|---|
| 1 |
147-2321 |
HOUSING-DRIVE, DRUM Price: $122.71 |
| 2 |
133-4591 |
PIN-DOWEL Price: $2.45 |
| 3 |
133-9082 |
O'RING Price: $1.78 |
| 4 |
251-82 |
BEARING-BALL Price: $19.02 |
| 5 |
3290-485 |
WASHER-WAVE Price: $6.51 |
| 6 |
132-4565 |
GEAR-SPUR, 30T Price: $33.28 |
| 7 |
138-1507 |
RING-RETAINING, EXT (25MM) Price: $0.68 |
| 8 |
138-1491 |
SEAL-OIL Price: $11.91 |
| 9 |
137-0274 |
GEAR-SPUR, 108T Price: $59.94 |
| 10 |
49-2410 |
BEARING-BALL Price: $42.99 |
| 11 |
138-1506 |
RING-RETAINING, INT (32MM) Price: $0.68 |
| 12 |
133-4558 |
PIN-BEARING, SHORT Price: $13.78 |
| 13 |
80-8460 |
O-RING Price: $1.95 |
| 14 |
133-4553 |
SPACER-BEARING Price: $2.04 |
| 15 |
119-4042 |
NUT-HF, NI Price: $0.69 |
| 16 |
251-312 |
BALL BEARING Price: $19.88 |
| 17 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 18 |
147-2348 |
SPACER Price: $7.26 |
| 19 |
133-4562 |
SHAFT-DRUM, DRIVE Price: $63.30 |
| 20 |
138-1480 |
RING-RETAINING, INT (52MM) Price: $2.31 |
| 21 |
138-1504 |
KEY-WOODRUFF, 5MM Price: $1.78 |
| 22 |
133-9244 |
HUB-DRUM, OUTER Price: $42.69 |
| 23 |
253-161 |
SEAL-V-RING Price: $20.52 |
| 24 |
104-9216 |
WASHER-HARDENED Price: $5.60 |
| 25 |
126-3841 |
NUT-HEX, NI Price: $3.00 |
| 27 |
147-2349 |
GEAR-SPUR, 114T Price: $46.01 |
| 28 |
133-9078 |
NUT-HEX Price: $6.79 |
| 29 |
147-2324 |
GASKET-DRUM DRIVE Price: $46.51 |
| 30 |
147-2323 |
COVER-DRIVE, DRUM Price: $51.69 |
| 31 |
133-4559 |
SEAL-OIL Price: $10.50 |
| 32 |
140-9233 |
SCREW-HSH Price: $0.88 |
| 33 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 34 |
147-2346 |
SEAL-OIL Price: $5.71 |
