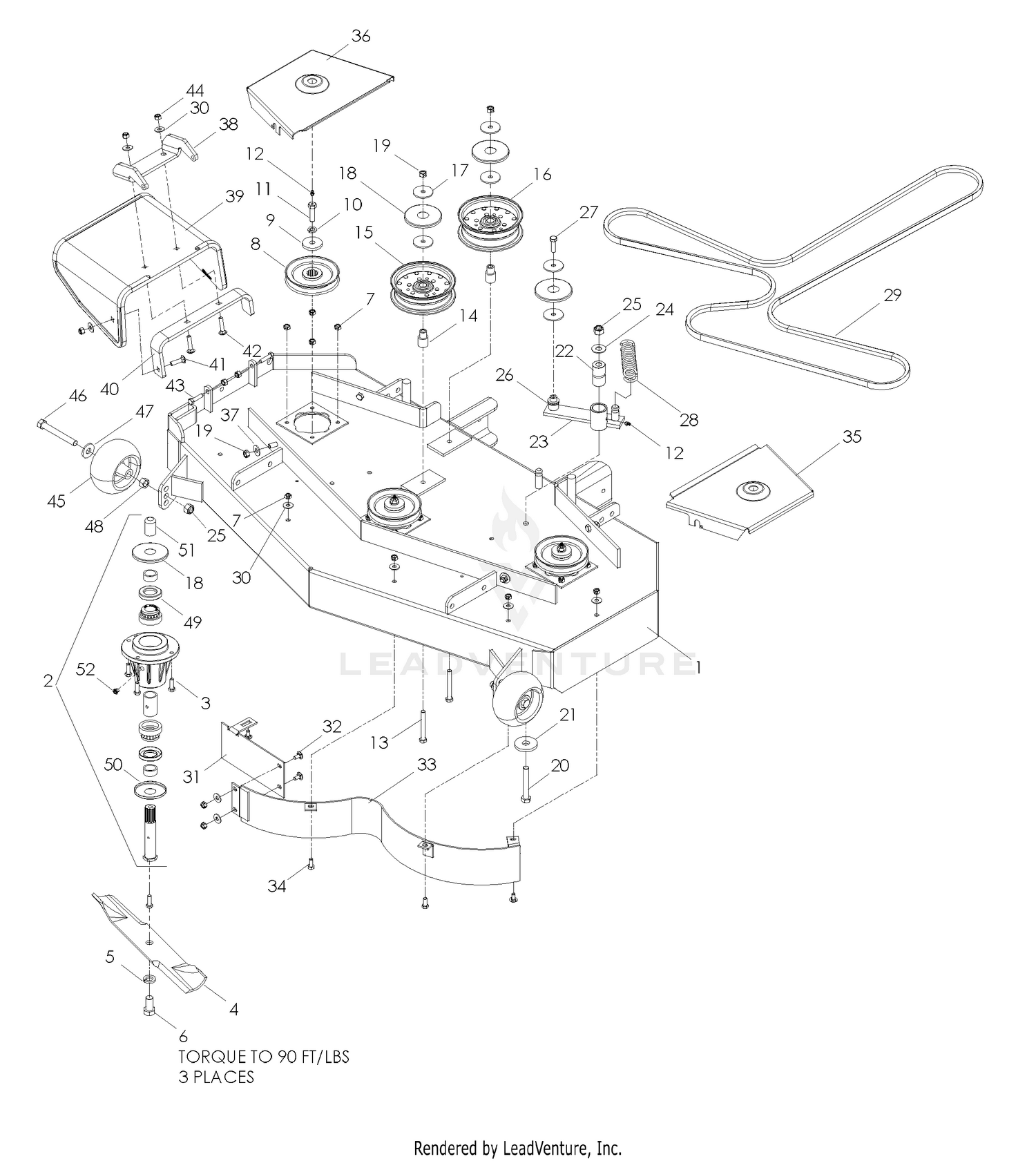

48" Cutting Deck

48" Cutting Deck

Parts (77)

RefPart NumberDescription
1 106-0050 LH INNER COVER ASM This part replaces 69-6800. Price: $186.64
1 539106576 DECK W/DECALS 48" Price: $787.99
2 3234-12 SCREW-HHF Price: $0.61
2 966956101 KIT HSG ASM 52/61 This part replaces 539112934. Price: $129.99
3 596580801 Bolts This part replaces 539990209. Price: $2.99
3 69-6360-01 PLATE-GEARBOX, LH ASM This part replaces 69-6360. Price: $258.21
4 32128-21 NUT-HF Price: $0.39
4 539100340 BLADE OEM 16 1/4" Price: $22.99
5 237-81 O-RING Price: $2.76
5 539990333 LOCKWASHER 5/8 Price: $2.99
6 340-8 FITTING-STRAIGHT Price: $9.70
6 539103299 HCS 5/8F X 1 1/4 Price: $5.99
7 237-65 O-RING Price: $2.50
7 596580701 Nuts This part replaces 539990184. Price: $2.99
8 539112141 PULLEY 42-48 Price: $37.99
8 88-9360 HOSE ASSY This part replaces 76-2730. Price: $386.10
9 596770301 Washers This part replaces 539106504. Price: $4.99
9 88-9370 HOSE ASSY This part replaces 76-2740. Price: $240.46
10 237-22 O-RING Price: $2.43
10 596238901 Washers This part replaces 539990247. Price: $2.99
11 340-2 FITTING-STRAIGHT Price: $11.43
11 539112120 HCS 7/16-20 GD 8 SPEC Price: $24.99
12 237-42 O-RING Price: $2.78
12 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
13 539101341 HCS 3/8C X 3 Price: $4.99
13 94-4907 MOTOR-HYD This part replaces 69-2780. Price: $1,685.80
14 539103295 IDLER BUSHING Price: $12.99
14 63-0660 GEARBOX PULLEY WA Price: $80.31
15 23-1640 BUSHING-TAPERLOCK Price: $68.50
15 539103257 IDLER PULLEY Price: $49.99
16 106-0051 LH OUTER COVER ASM This part replaces 69-6810. Price: $251.73
17 3269-25 RIVET-POP Price: $0.27
17 596917301 Washers This part replaces 539111897. Price: $4.99
18 539108450 TOP DUST CAP Price: $4.99
18 69-6870 PLATE-MAGNET Price: $4.91
19 3296-2 NUT-LOCK, NI Price: $1.89
19 595305901 Nuts This part replaces 539990546. Price: $2.99
20 539103433 HCS 1/2C X 3 1/4 Price: $5.99
20 69-6260 MAGNET Price: $58.32
21 32105-1 SCREW-SHH Price: $3.19
21 596437501 Washers This part replaces 539102243. Price: $8.99
22 3233-30 SCREW-CARR Price: $3.26
22 539103427 PIVOT BUSHING Price: $7.99
23 539103230 IDLER ARM Price: $159.99
23 69-6960 SPACER-IDLER Price: $22.57
24 140-5848 PULLEY-IDLER This part replaces 63-1540. Price: $62.48
24 595316401 Washers This part replaces 539990550. Price: $2.99
25 32128-23 NUT-HF Price: $1.51
25 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
26 596933401 Washers This part replaces 539991043. Price: $2.99
27 3231-28 SCREW-CARR Price: $1.92
27 539976941 HCS 3/8C X 1 1/4 GR5 Price: $3.99
28 539103256 SPRING Price: $9.99
28 95-0845 DECAL-HOC This part replaces 71-4260. Price: $11.75
29 539109243 BELT, DECK Price: $74.99
30 596134901 GSPH This part replaces 539990692. Price: $2.99
31 539105444 CENTER BAFFLE 48" Price: $59.99
32 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99
33 539105448 MAIN BAFFLE - 48" DECK BLK Price: $299.99
34 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99
35 539108904 LT 48 SHIELD, ORG Price: $44.99
36 539108902 RT 48 SHIELD, ORG Price: $24.99
37 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
38 539130916 PIVOT BRACKET - CHUTE Price: $32.99
39 539130903 CHUTE, RUBBER DISCHARGE WB Price: $49.99
40 539130922 BRKT, REINF-CHUTE WB Price: $34.99
41 596671401 Bolts This part replaces 539100472. Price: $3.99
42 596030801 Bolts This part replaces 539102933. Price: $3.99
43 539990627 HCS 5/16C X 1 1/4 Price: $3.99
44 596583702 Nuts This part replaces 539990717. Price: $2.99
45 532133957 WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99
46 539108366 HCS 1/2-13 X 4 GR 5 ZD Price: $5.99
47 595316401 Washers This part replaces 539109554. Price: $2.99
48 539990258 NUT HEX 1/2 Price: $3.99
49 539108754 SHAFT SEAL Price: $6.99
50 539108449 BOTTOM DUST CAP Price: $3.99
51 539107419 VINYL CAP Price: $0.45
