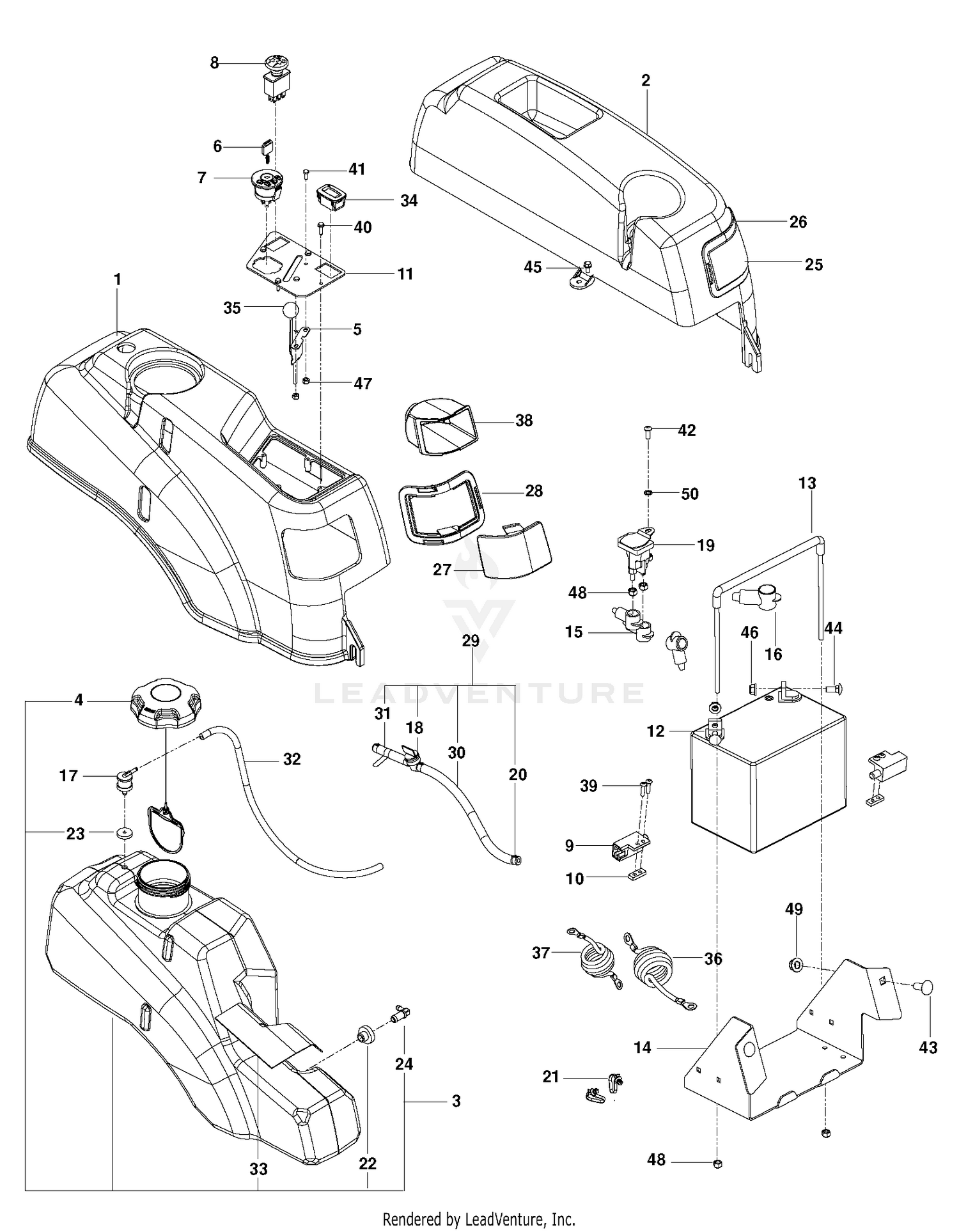

| Ref | Part Number | Description |
|---|
| 1 |
578178901 |
FENDER RT, GRAY Price: $99.99 |
| 2 |
539130374 |
FENDER, LT Price: $74.99 |
| 3 |
599306304 |
FUEL TANK, RZ, 2.25" NECK, 202 This part replaces 578180601. Price: $229.99 |
| 5 |
585974906 |
THROTTLE CABLE 37" This part replaces 585974902. Price: $32.99 |
| 6 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 7 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 8 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174652. Price: $24.99 |
| 9 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 10 |
581223002 |
Plates This part replaces 581223001. Price: $2.99 |
| 11 |
585813002 |
PLATE.CONTROL.R/START.RZ.X431 Price: $9.99 |
| 12 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 13 |
539131209 |
BATTERY TIE DOWN ASSEMBLY Price: $27.99 |
| 14 |
510231302 |
BOX, BATTERY, BLACK Price: $89.99 |
| 15 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 16 |
539102759 |
INSULATOR Price: $3.99 |
| 17 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 18 |
539916325 |
FUEL VALVE Price: $9.99 |
| 19 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 20 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 21 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 22 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 23 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 24 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 25 |
539110457 |
LEFT HEADLIGHT LENS Price: $4.99 |
| 26 |
539110455 |
LEFT HEADLIGHT RIM GREY Price: $4.99 |
| 27 |
539110453 |
RT HEADLIGHT LENS Price: $4.99 |
| 28 |
539110451 |
RT HEADLIGHT RIM GREY Price: $4.99 |
| 29 |
586123904 |
FUEL.HOSE.SHUT.OFF.ASM.10".3" This part replaces 576660701. Price: $11.99 |
| 30 |
539932956 |
GAS LINE 10" Price: $6.99 |
| 31 |
505215101 |
FUEL LINE 3" Price: $2.99 |
| 32 |
587044517 |
HOSE.3/16".VAPOR.LINE.17"LGTH This part replaces 574521302. Price: $7.99 |
| 33 |
522559101 |
SHIELD, HEAT Price: $32.99 |
| 34 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 35 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 36 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 37 |
539110068 |
BATTERY CABLE, NEGATIVE Price: $7.99 |
| 38 |
539130672 |
REFLECTOR, LEFT HEAD LIGHT Price: $22.99 |
| 39 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 40 |
596917001 |
Screws This part replaces 539110673. Price: $2.99 |
| 41 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 42 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 43 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 44 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 45 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 46 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 47 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 48 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 49 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 50 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 539110471 |
HEADLIGHT |
HARNESS Price: $19.99 539110471 |
| 585727701 |
HARNESS.WIRING.RZ |
Price: $74.99 585727701 |
