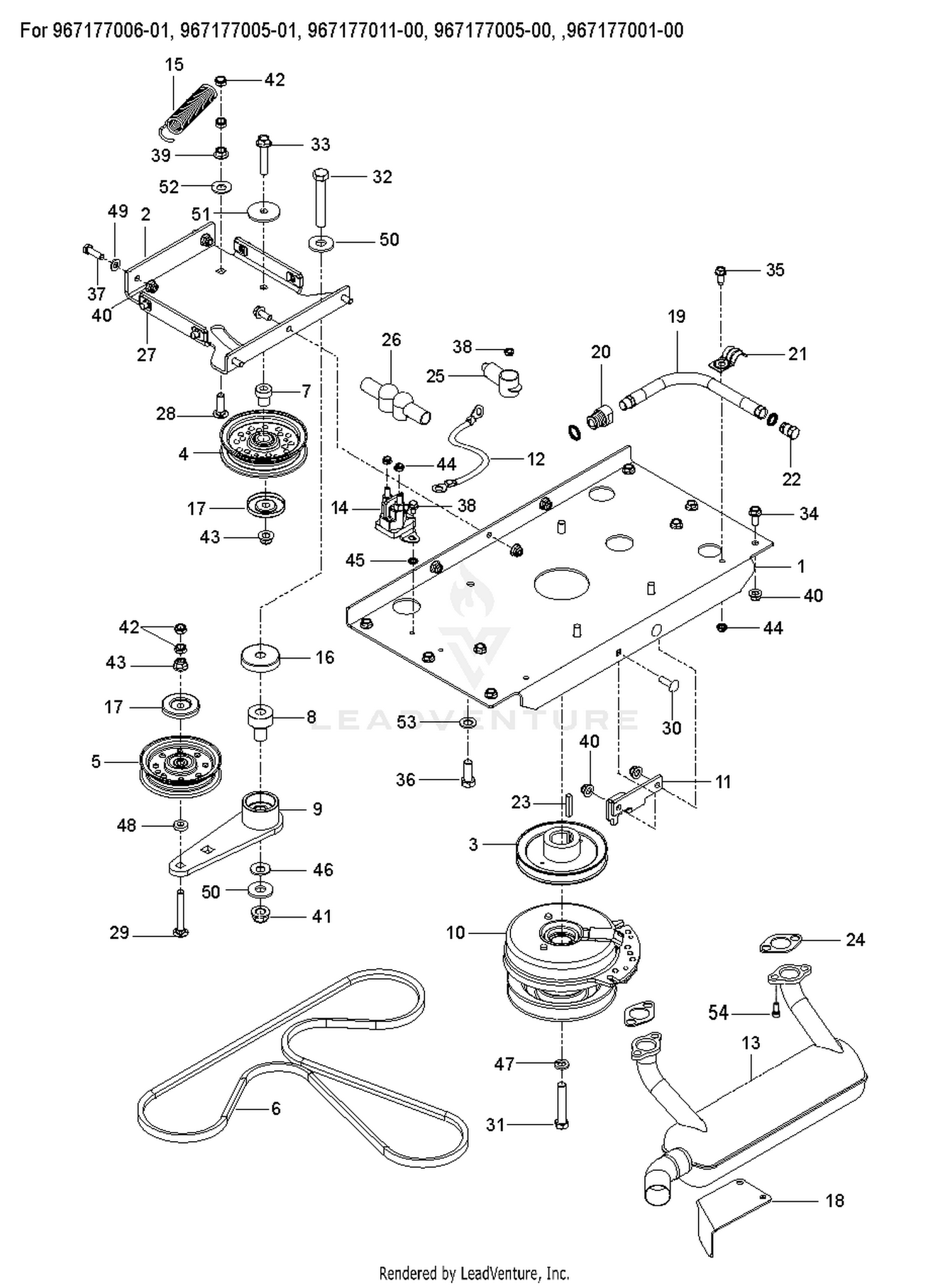

| Ref | Part Number | Description |
|---|
| 1 |
586651402 |
PLATE.PNT.ENGINE.E-DIP Price: $32.99 |
| 3 |
574811001 |
PULLEY, V, 1.125 BORE Price: $39.99 |
| 4 |
596739801 |
PULLEYS This part replaces 539976688. Price: $29.99 |
| 5 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 6 |
574870901 |
BELT, HYDRO, 3400 Price: $34.99 |
| 7 |
525435601 |
PIVOT, IDLER Price: $5.99 |
| 8 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 9 |
510041603 |
ARM, IDLER, STEEL, W/BGS Price: $49.99 |
| 10 |
574607001 |
CLUTCH 200 FT LB Price: $379.99 |
| 11 |
575017305 |
STOP CLUTCH STOP This part replaces 575017302. Price: $12.99 |
| 12 |
539102757 |
CABLE POSITIVE Price: $7.99 |
| 15 |
510254402 |
Springs This part replaces 510254401. Price: $5.99 |
| 16 |
596394601 |
Shields This part replaces 539114662. Price: $2.99 |
| 17 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 18 |
579150901 |
SHIELD MUFFLER Price: $14.99 |
| 19 |
584825501 |
HOSE.ASSEMBLY.OIL.DRAIN Price: $27.99 |
| 21 |
539101363 |
CLAMP Price: $2.99 |
| 23 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 24 |
532178151 |
GASKET This part replaces 586839701. Price: $4.99 |
| 25 |
539102759 |
INSULATOR Price: $3.99 |
| 26 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 27 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 29 |
596581801 |
Bolts This part replaces 539130235. Price: $2.99 |
| 30 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 35 |
596437001 |
Screws This part replaces 539990071. Price: $2.99 |
| 37 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 39 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 40 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 41 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 42 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 43 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 44 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 45 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 46 |
596581701 |
Washers This part replaces 539115528. Price: $2.99 |
| 48 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
| 49 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 51 |
596917301 |
Washers This part replaces 539111897. Price: $4.99 |
| 52 |
596433701 |
GSPW Washers This part replaces 819141614. Price: $2.99 |
| 53 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 539107516 |
KOHLER |
PIGTAIL-CV490S Price: $36.99 539107516 |
