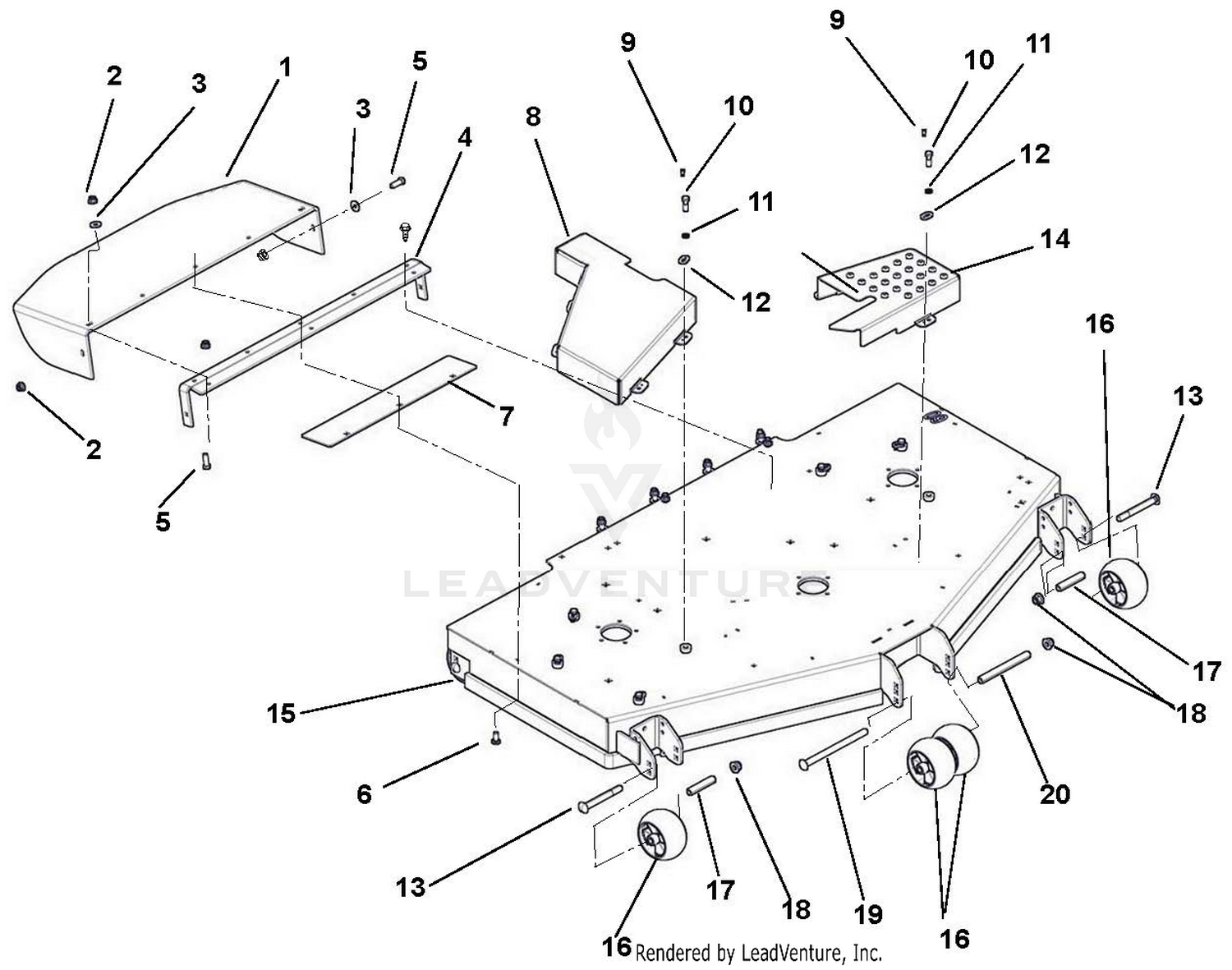

| Ref | Part Number | Description |
|---|
| 1 |
04309300 |
CHUTE, RUBBER DISCHARGE (RD) Price: $55.95 |
| 2 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 3 |
06401008 |
WSHR-FLT .438X1.00X.083 ZCC This part replaces 06435900. Price: $1.45 |
| 4 |
04309253 |
BRKT, MOUNT DISCHARGE CHUTE Price: $56.95 |
| 5 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45 |
| 6 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 7 |
04319051 |
PLATE, DISCHARGE CHUTE SUPPORT Price: $14.95 |
| 8 |
04353351 |
GUARD, 60" RH SPINDLE (RD) Price: $100.95 |
| 9 |
06800028 |
RVT-POP .187 YZ Price: Call Us |
| 10 |
07001625 |
BLT,HEX.38-16X1.25 GR5 CAPTIVE Price: $11.45 |
| 12 |
04183000 |
KEEPER, BOLT Price: $5.45 |
| 13 |
06200511 |
BOLT, RHNS .50-13X4.50 G5 ZCC NS This part replaces 06225900. Price: $3.95 |
| 14 |
04357551 |
GUARD, 60" LH SPINDLE (RD) Price: $56.95 |
| 15 |
04147453 |
WMT-60" REAR DISCHARGE DECK Price: $1,120.95 |
| 16 |
03905900 |
ANTI-SCALP WHEEL - 5X3 CTR Price: $11.95 |
| 17 |
00473700 |
SPACER, .510X.625X3.35 Price: $16.95 |
| 18 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 19 |
06200321 |
BLT, RHSN .50-13X8.50 G5 ZCC This part replaces 06206400. Price: $6.95 |
