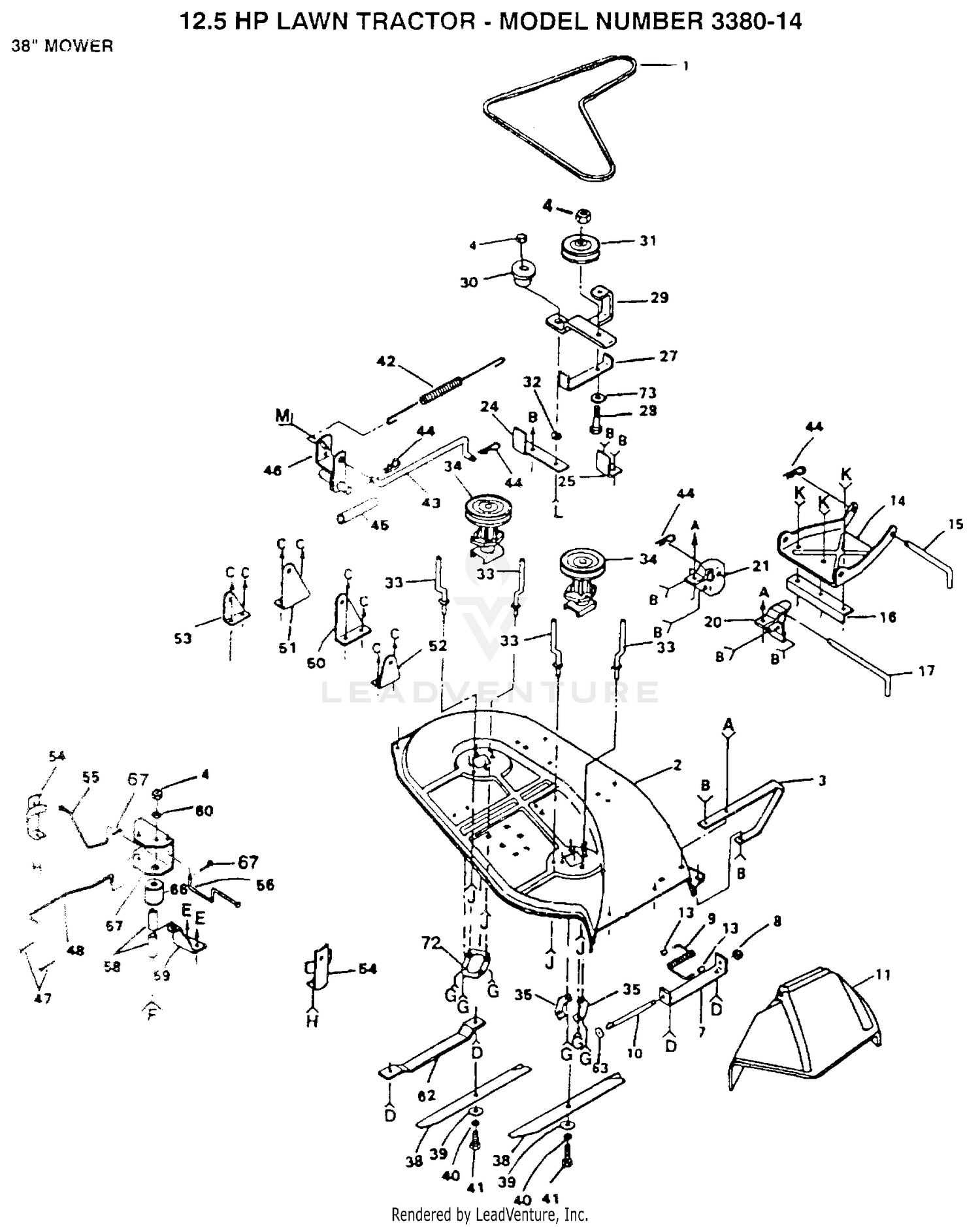

| Ref | Part Number | Description |
|---|
| 1 |
106085X |
BELT-V.79.1.MWR Price: Call Us |
| 2 |
121259X |
SUB= 144725 Price: Call Us |
| 3 |
8417J |
SUB= 128772 Price: Call Us |
| 4 |
73680600 |
SUB= 73690600 Price: Call Us |
| 7 |
105896X |
SUB= 137607 Price: Call Us |
| 8 |
110452X |
NUT PUSH M Price: Call Us |
| 9 |
106734X |
SUB= 123713X Price: Call Us |
| 10 |
106735X |
ROD-HINGE T Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 11 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 13 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 14 |
105662X |
LINK.PARALLEL Price: Call Us |
| 16 |
105872X |
LINK STOP Price: Call Us |
| 17 |
109835X |
HINGE PIN T Price: Call Us |
| 20 |
109598X |
BRACKET RH LT Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
109597X |
BRACKET LH T Price: Call Us |
| 24 |
109503X |
SUPPORT ARM T Price: Call Us |
| 25 |
109504X |
STOP T Price: Call Us |
| 27 |
126756X |
GUIDE.BELT Price: Call Us |
| 28 |
74760632 |
SUB= 74930632 Price: Call Us |
| 30 |
106902X |
SPACER RETAINER Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
123688X |
SUB= 121316X Price: Call Us |
| 33 |
102669X |
BELT KEEPER LT Price: Call Us |
| 34 |
121676X |
SUB= 121687X Price: Call Us |
| 35 |
100668L |
SUPPORT PLATE LT Price: Call Us |
| 39 |
19132012 |
WASHER Price: Call Us |
| 40 |
10030600 |
SUB= 10040600 Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
74610624 |
BOLT.3/8-24X1-1/2 Price: Call Us |
| 42 |
108250X |
SPRING LT Price: Call Us |
| 43 |
108235X |
ROD LT Price: Call Us |
| 44 |
4921H |
SPRING.RETAINER Price: Call Us |
| 45 |
6404J |
SPACER T Price: Call Us |
| 46 |
124066X |
SUB= 109892X Price: Call Us |
| 47 |
76020616 |
SUB= 76020624 Price: Call Us |
| 48 |
108247X |
ROD BRAKE LT Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 50 |
108243X |
BRACKET LT Price: Call Us |
| 51 |
108241X |
BRACKET LT Price: Call Us |
| 54 |
106578X |
BRAKE LT Price: Call Us |
| 56 |
108249X |
ROD BRAKE LT Price: Call Us |
| 58 |
100672K |
SPACER BRAKE LTV Price: Call Us |
| 59 |
100673L |
BRACKET SUPT LTV Price: Call Us |
| 60 |
19131614 |
WASHER Price: Call Us |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 62 |
7631J |
RUNNER-LH M Price: Call Us |
| 63 |
19111016 |
WASHER Price: Call Us |
| 66 |
122314X |
SPACER Price: Call Us |
| 67 |
76020308 |
SUB= 3145 Price: Call Us |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 72 |
110445X |
SUPPORT T Price: Call Us |
| 73 |
19131316 |
WASHER Price: Call Us |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
| 105814X |
DECAL.LT |
Price: Call Us 105814X |
| 109820X |
DECAL |
YT Price: Call Us 109820X |
| 123928X |
MOWER |
ASSY Price: Call Us 123928X |
