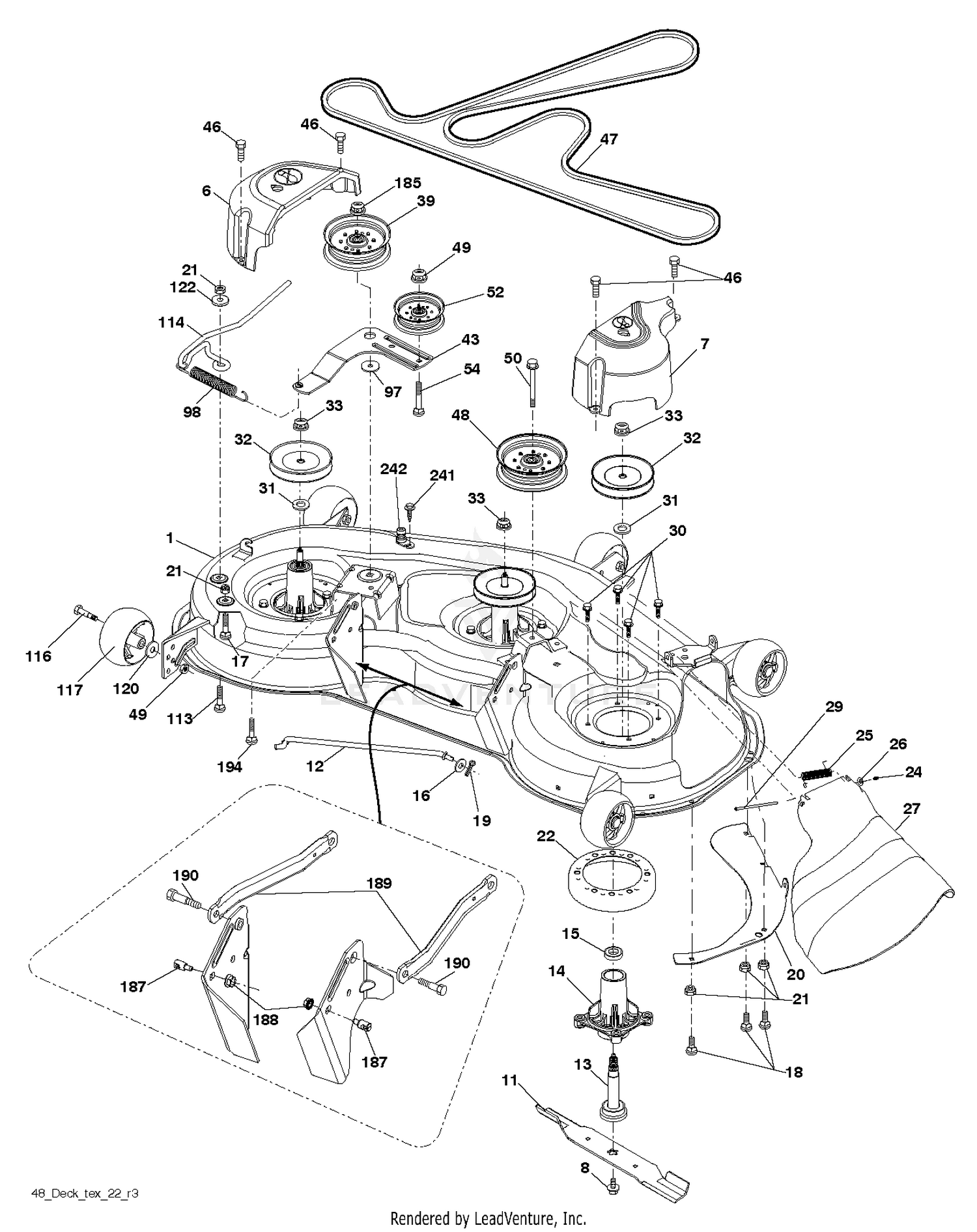

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
532401239 |
DECK.WLDMNT.48".4GWB.GREY This part replaces 532197216. Price: $399.99 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $17.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
532187291 |
SHAFT ASM MANDREL Price: $17.99 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
107-3273-01 |
BEDBAR Price: $303.02 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 17 |
872110505 |
BOLT Price: $3.99 |
| 18 |
872140505 |
BOLT Price: $2.99 |
| 19 |
137-6093 |
BEDKNIFE-EDGEMAX LOWCUT This part replaces 127-7132. Price: $166.88 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 20 |
532174378 |
BAFFLE, VORTEX MWR Price: $8.99 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK Price: $3.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 24 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $1.99 |
| 25 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 26 |
69-8980 |
WASHER Price: $0.58 |
| 27 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $29.99 |
| 28 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 29 |
127-4284 |
WASHER-SPECIAL Price: $5.88 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 32 |
532173435 |
MANDREL.PULLEY.38.YEL DICHROMA This part replaces 532153532. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
137-8447 |
ES REEL+,7IN FWY(22)11 BLD LD(FSR) This part replaces 131-6801. Price: $785.81 |
| 37 |
127-7111 |
INSERT-THREADED, 7 INCH (LH) Price: $42.48 |
| 38 |
127-7109 |
INSERT-THREADED, 7 INCH (RH) Price: $42.48 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATIONARY.LH This part replaces 532197380. Price: $22.99 |
| 43 |
532196065 |
ARM.IDLER Price: $11.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
532197242 |
BELT.DRIVE.DECK Price: $44.99 |
| 48 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 49 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 50 |
817490636 |
SCREW TT 3/8-16X2-1/4 UNC Price: $3.99 |
| 52 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 54 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 97 |
532178515 |
WASHER Price: $2.99 |
| 98 |
532196105 |
SPRING, DECK DRIVE Price: $4.99 |
| 114 |
532197451 |
ROD.TENSION.RELIEF.TEX (2 2) Price: $11.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8. Price: $1.99 |
| 120 |
819132012 |
WASHER Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $2.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 188 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $8.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $5.99 |
