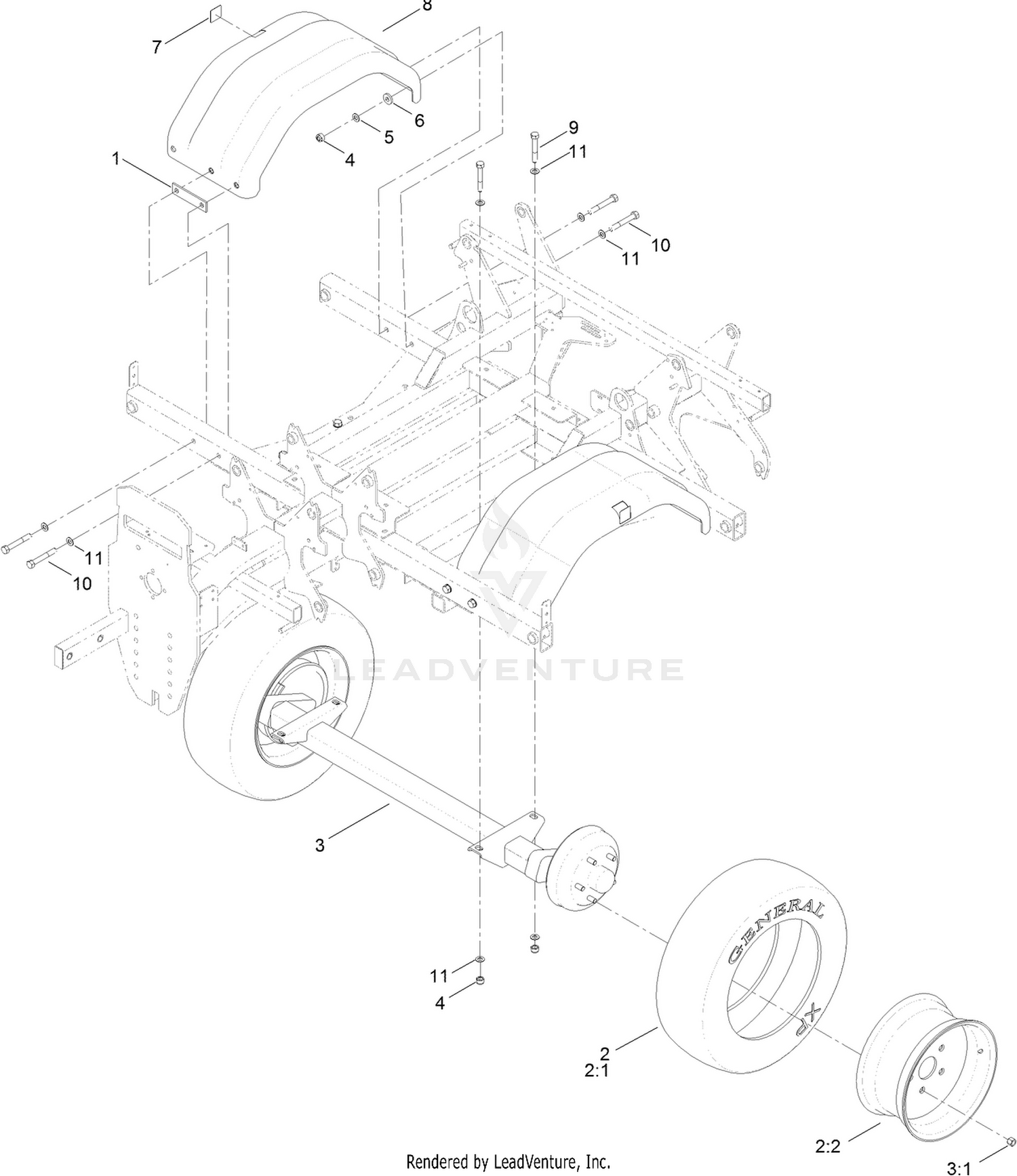

Axle Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 66-01-180W | PLATE - CLAMPING Price: $17.46 |
| 2 | 111-6883 | WHEEL ASM Price: $534.76 |
| 3 | 111-3975 | AXLE ASM Price: $1,600.11 |
| 4 | 09456 | NUT M16 X 2 NYL INS P TYPE Price: $1.40 |
| 5 | 09491 | WASHER M16 PLAIN Price: $1.42 |
| 6 | 767505 | WASHER-STEPPED Price: $6.00 |
| 7 | 767810 | DECAL Price: $25.09 |
| 8 | HY767801 | MUDGUARD Price: $144.15 |
| 9 | ZBH1P100U | BOLT M16*100 Price: $2.68 |
| 10 | ZBH1P110U | HEX HD BOLT M16*110 Price: $2.17 |
