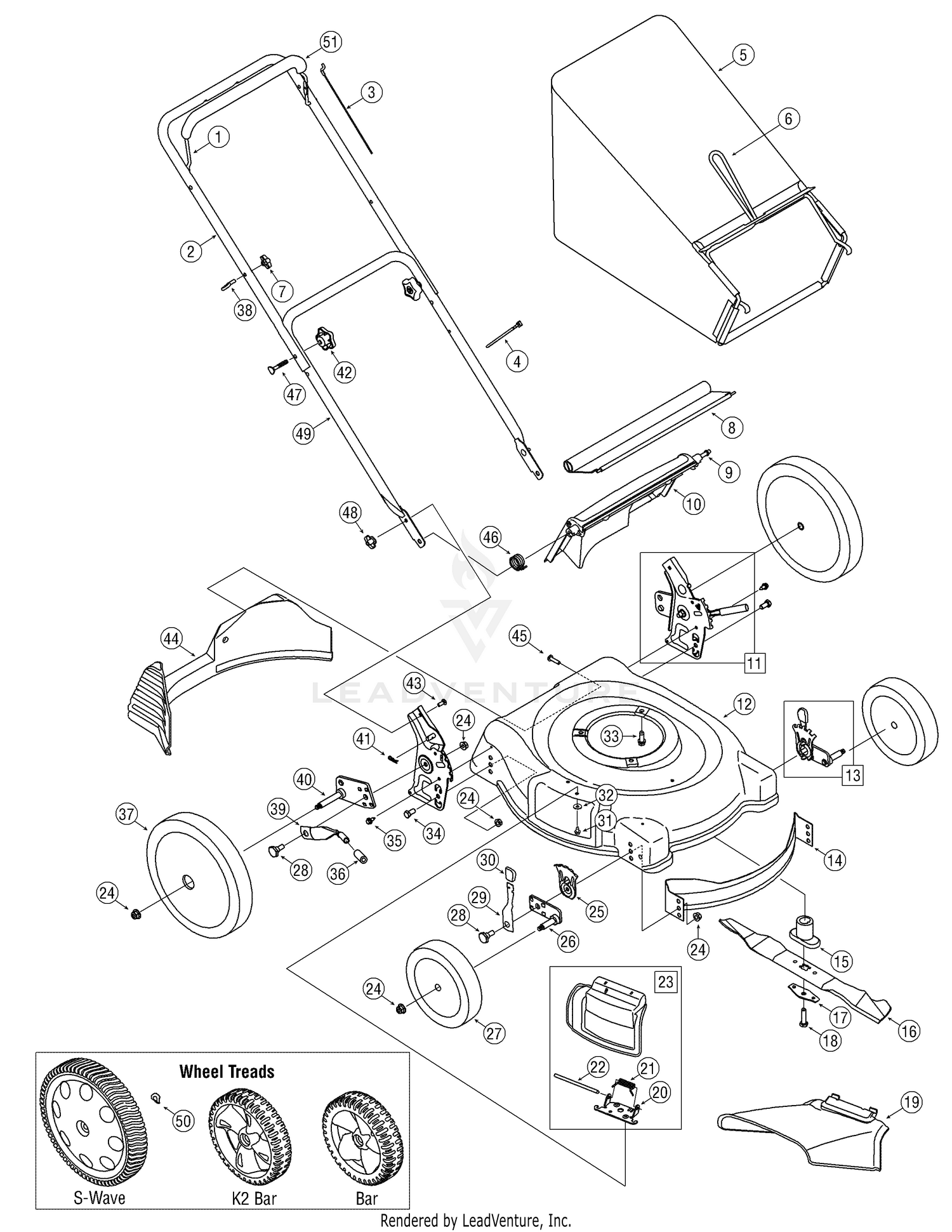

| Ref | Part Number | Description |
|---|
| 1 |
747-1161A |
Blade Control Price: $10.27 |
| 2 |
749-1092A |
Upper Handle Price: $42.79 |
| 3 |
946-1130 |
Control Cable 40" This part replaces 746-1130. Price: $16.01 |
| 5 |
964-04007A |
Grass Bag This part replaces 664-04011. Price: $114.46 |
| 6 |
747-04080A |
Grass Bag Frame This part replaces 747-04080. Price: $52.39 |
| 7 |
720-0279 |
Handle Knob Price: $3.93 |
| 8 |
731-05642A |
Trailshield This part replaces 731-05642. Price: $25.03 |
| 9 |
747-04588 |
Pivot Rod Price: $15.36 |
| 10 |
753-06366 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 731-04134A. Price: |
| 11 |
987-02279A |
Rear Handle Bracket Assy. - RH This part replaces 687-02279. Price: $47.18 |
| 11 |
987-02280A |
Rear Handle Bracket Assy. - LH This part replaces 687-02280. Price: $46.70 |
| 13 |
987-02074B |
Front Height Adjuster Assembly - RH This part replaces 687-02074A. Price: $35.46 |
| 13 |
987-02075B |
Front Height Adjuster Assembly - LH Not Available This part replaces 687-02075A. Price: |
| 14 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002B. Price: |
| 15 |
748-04082 |
Blade Adapter Price: $34.90 |
| 16 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 17 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 18 |
710-1257 |
Hex Screw, 3/8-24 x 2.5 Price: $7.02 |
| 19 |
731-04177 |
Side Discharge Chute Price: $16.88 |
| 20 |
17032A |
PLATE-ADAPTER Not Available Price: |
| 21 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 22 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 23 |
987-02055 |
Hinged Mulch Plug Assembly This part replaces 687-02055. Price: $24.18 |
| 24 |
712-04065 |
Flange Lock Nut 3/8-16 Price: $3.68 |
| 25 |
787-01290A |
Height Adjustment Plate This part replaces 787-01290. Price: $10.58 |
| 26 |
987-02076A |
PIVOT ARM ASSEMBLY (RH) Not Available This part replaces 687-02076A. Price: |
| 26 |
987-02077A |
Pivot Arm Assembly - LH This part replaces 687-02077A. Price: $15.25 |
| 27 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 28 |
738-0507B |
Shoulder Screw, .5D x .434 Price: $3.86 |
| 29 |
94832 |
Spring Lever This part replaces 732-0404. Price: $9.48 |
| 30 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 31 |
710-0599 |
TT Screw, 1/4-20 x .500 Price: $3.86 |
| 32 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 33 |
710-0654A |
TT Screw, 3/8-16 x 1.0 Price: $3.75 |
| 34 |
710-0216 |
Hex Screw, 3/8-16 x .75 Price: $3.93 |
| 35 |
710-1652 |
TT Screw, 1/4-20 x .625 Price: $3.86 |
| 36 |
720-0312 |
Foam Grip Price: $4.06 |
| 37 |
734-04019 |
REAR WHEEL12X2.1 This part replaces 734-04127. Price: $61.69 |
| 38 |
710-1205 |
Eye Bolt Price: $3.53 |
| 39 |
732-0866 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 40 |
987-02335 |
Pivot Bar RH This part replaces 687-02039A. Price: $23.73 |
| 40 |
987-02336 |
PIVOT ARM ASSEMBLY (LH) Not Available This part replaces 687-02040A. Price: |
| 41 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 42 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 43 |
710-0703 |
Carriage Bolt ,1/4-20 x .75 Price: $3.66 |
| 44 |
731-04150C |
REAR BAFFLE 21" Not Available Price: |
| 45 |
710-1241 |
Screw HL, 1/4-15 x 1.00 Price: $5.77 |
| 46 |
732-04090A |
Torsion Spring - RH Price: $6.66 |
| 47 |
710-1174 |
Carriage Bolt, 5/16-18 x 2 Price: $6.28 |
| 48 |
712-0397A |
WING NUT This part replaces 712-0397. Price: $3.71 |
| 49 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928A. Price: $29.67 |
| 50 |
736-0182 |
Spring Washer Price: $3.90 |
