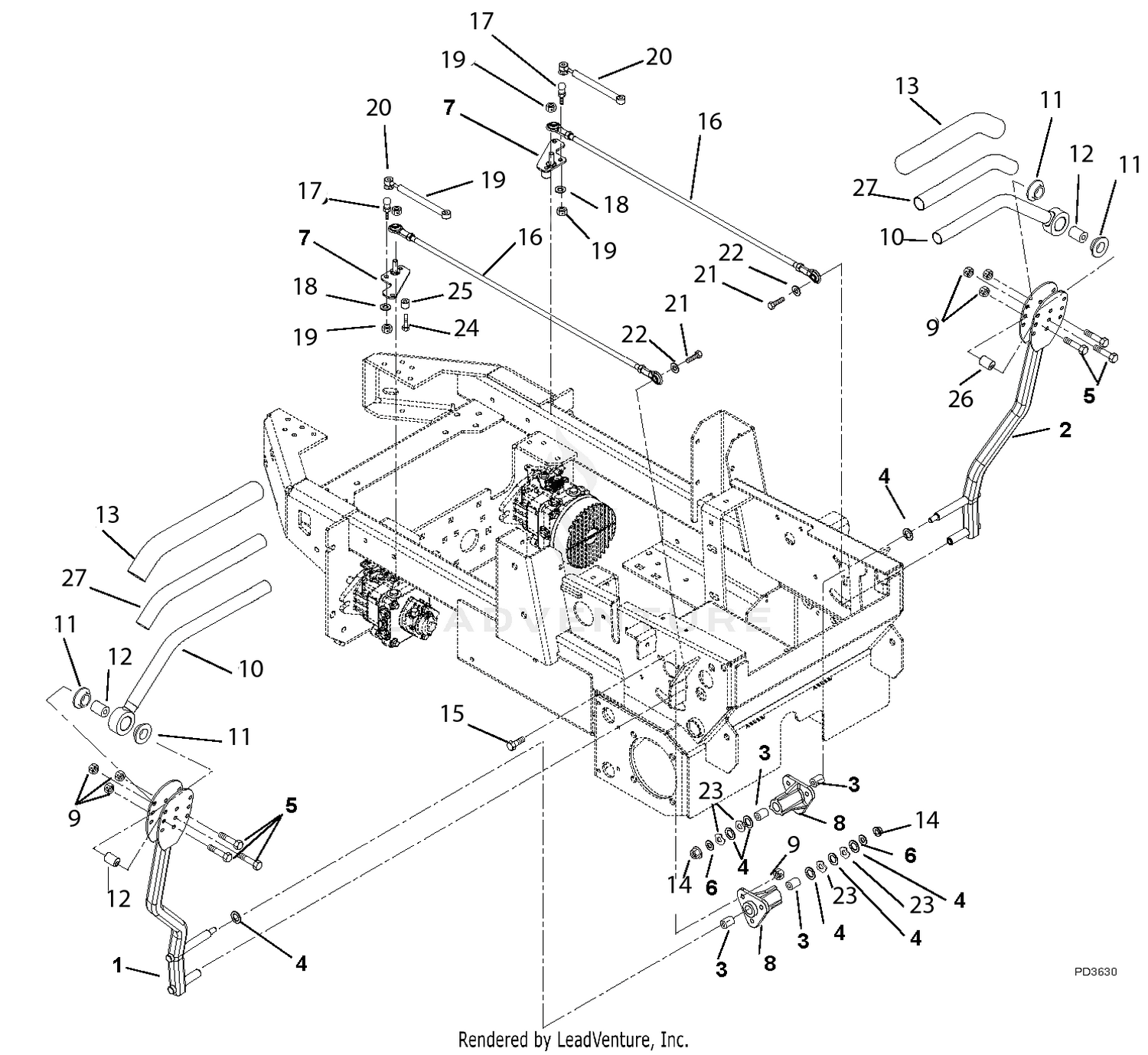

| Ref | Part Number | Description |
|---|
| 1 |
00585051 |
WMT, BENT STEERING ARM-RH Price: $107.95 |
| 2 |
00472951 |
WMT, BENT STEERING ARM-LH Price: $106.95 |
| 3 |
05436800 |
BSHG .625X.750X.500 Price: $8.95 |
| 4 |
06401117 |
WSHR, FLT .630X1.005X.062 ZCC This part replaces 06436100. Price: $0.45 |
| 5 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 6 |
06401008 |
WSHR-FLT .438X1.00X.083 ZCC This part replaces 06435900. Price: $1.45 |
| 7 |
00492400 |
WMT, RTN/DAMPER/STEERING (OF) Price: $65.45 |
| 8 |
09294600 |
BUSHING, FLANGE Price: $30.95 |
| 9 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 10 |
09235500 |
HANDLE WLDMT LH Price: $81.95 |
| 11 |
05501517 |
BSHG, FLANGED .762 X 1.48 X .44 IGLIDER This part replaces 05525200. Price: $2.45 |
| 12 |
09235400 |
SPACER .328 X .76 X 1.01 Price: $18.45 |
| 13 |
03929100 |
GRIP, HANDLEBAR 1.00X1.38X11.3 Price: $14.45 |
| 14 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 15 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 16 |
00587500 |
ASSY, STEERING ROD .38 ROD Price: $37.45 |
| 17 |
03652200 |
STUD- BALL Price: $3.45 |
| 18 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 19 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 20 |
09273400 |
DAMPER, CONTROL Price: $56.45 |
| 21 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95 |
| 22 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 23 |
03704900 |
WAVE WASHER .640X.875X.125FH Price: $1.95 |
| 24 |
05901803 |
BLT, HEX .31-18X1.25 G5 ZCC This part replaces 05947500. Price: $2.45 |
| 25 |
03101900 |
SPACER .318X.430X.375 Price: $5.20 |
| 26 |
05500932 |
BSHG, ECCENTRIC .328X.750X.970 Price: $1.95 |
| 09235600 |
WLDMT, |
RH HANDLE Price: $73.45 09235600 |
