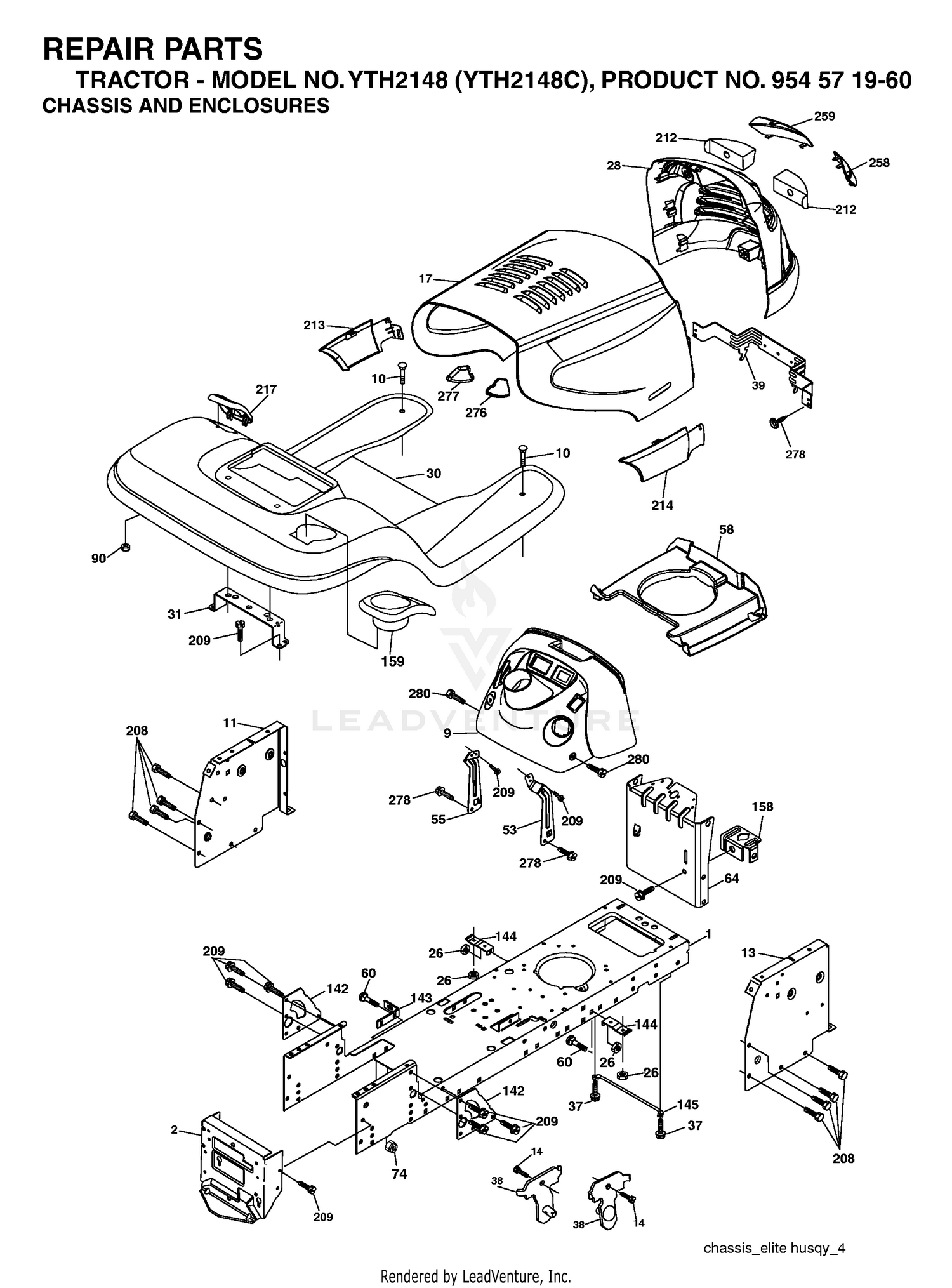

| Ref | Part Number | Description |
|---|
| 1 |
127-3086 |
BRACKET-CONNECTOR Price: $21.36 |
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 2 |
127-3018 |
CLIP Price: $8.87 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
127-3156 |
HARNESS B-E C O, ENGINE Price: $1,237.60 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 12 |
127-3125 |
HARNESS C Price: $544.61 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 17 |
127-3089 |
BOOT-TYPE, CAP Price: $10.73 |
| 18 |
127-3090 |
BRACKET-HARNESS Price: Call Us |
| 19 |
93-0362 |
BOLT Price: $3.89 |
| 20 |
93-0362 |
BOLT Price: $3.89 |
| 21 |
93-0362 |
BOLT Price: $3.89 |
| 22 |
127-3187 |
BAND Price: $1.43 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 30 |
532192814 |
FENDER.W/CUPHOLDER.ORANGE This part replaces 532191815. Price: $219.99 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532174997 |
DASH LOWER Price: $24.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 158 |
532162037 |
BRACKET PARKING BRAKE Price: $3.39 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 278 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 280 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
