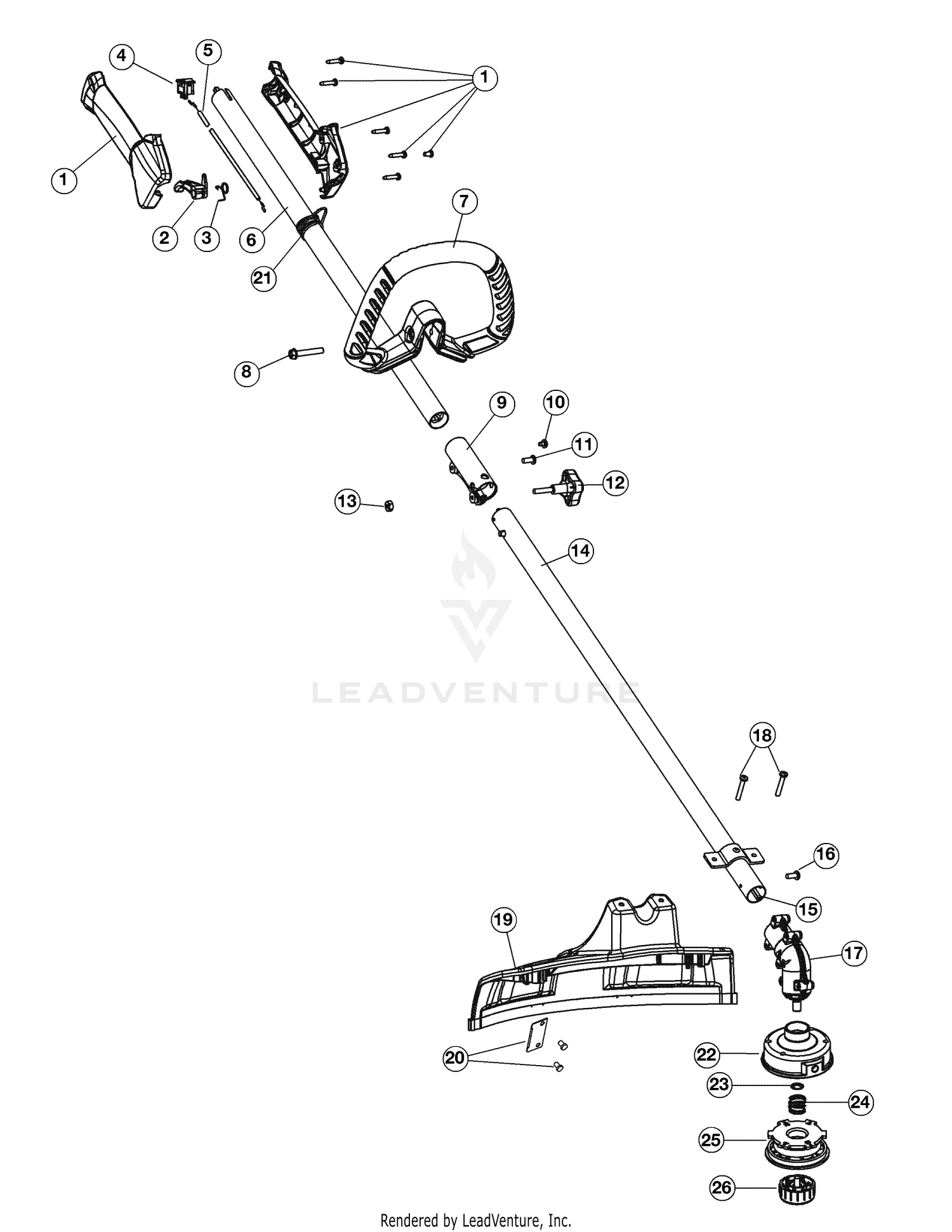

General Assembly

General Assembly

Parts (26)

RefPart NumberDescription
1 753-04234 Throttle Housing Assembly (Incl. Ref No. 2-4) Price: $18.62
2 753-04119 Throttle Trigger Price: $6.56
3 791-182690 Throttle Trigger Spring Price: $7.01
4 791-182405 Switch Price: $9.29
5 746-04085A Throttle Cable Assembly Price: $9.32
6 753-04344 Upper Drive Shaft Housing Assembly Price: $79.57
7 753-06039 Deluxe D-Handle Assembly (Incl.Ref No. 8) Price: $9.84
8 753-06040 Bolt Price: $6.01
9 753-1190 Split Boom Coupler (Incl. Ref No.10-13) Price: $20.56
10 791-182057 Screw Price: $3.93
11 791-181617 Bolt Price: $4.59
12 697-00661-9 CLICK LINK CLAMP Not Available This part replaces 791-181981. Price:
13 712-04018A Knob Retaining Nut Price: $3.78
14 753-08164 Lower Drive Shaft Housing Assembly Price: $18.34
15 753-05267 LOWER DRIVE SHAFT Price: $37.46
16 7039 Anti-Rotation Screw Price: $4.11
17 753-06571 GEARBOX ASSEMBLY Not Available This part replaces 753-06140. Price:
18 753-06125 Shield Mounting Screws Price: $5.94
19 753-06123 Shield Assembly (Incl. Ref No.18 & 20) Price: $18.15
20 753-06126 Blade Assembly Price: $2.81
21 4301A SHOULDER STRAP CLAMP Price: $3.06
21 791-610327 Shoulder Strap Clip Price: $28.62
23 791-610660 Retainer Price: $4.29
24 791-610317B Spring Price: $9.47
25 753-1155 Inner Reel Price: $21.18
26 791-153066B Bump Knob Assembly Price: $11.65
