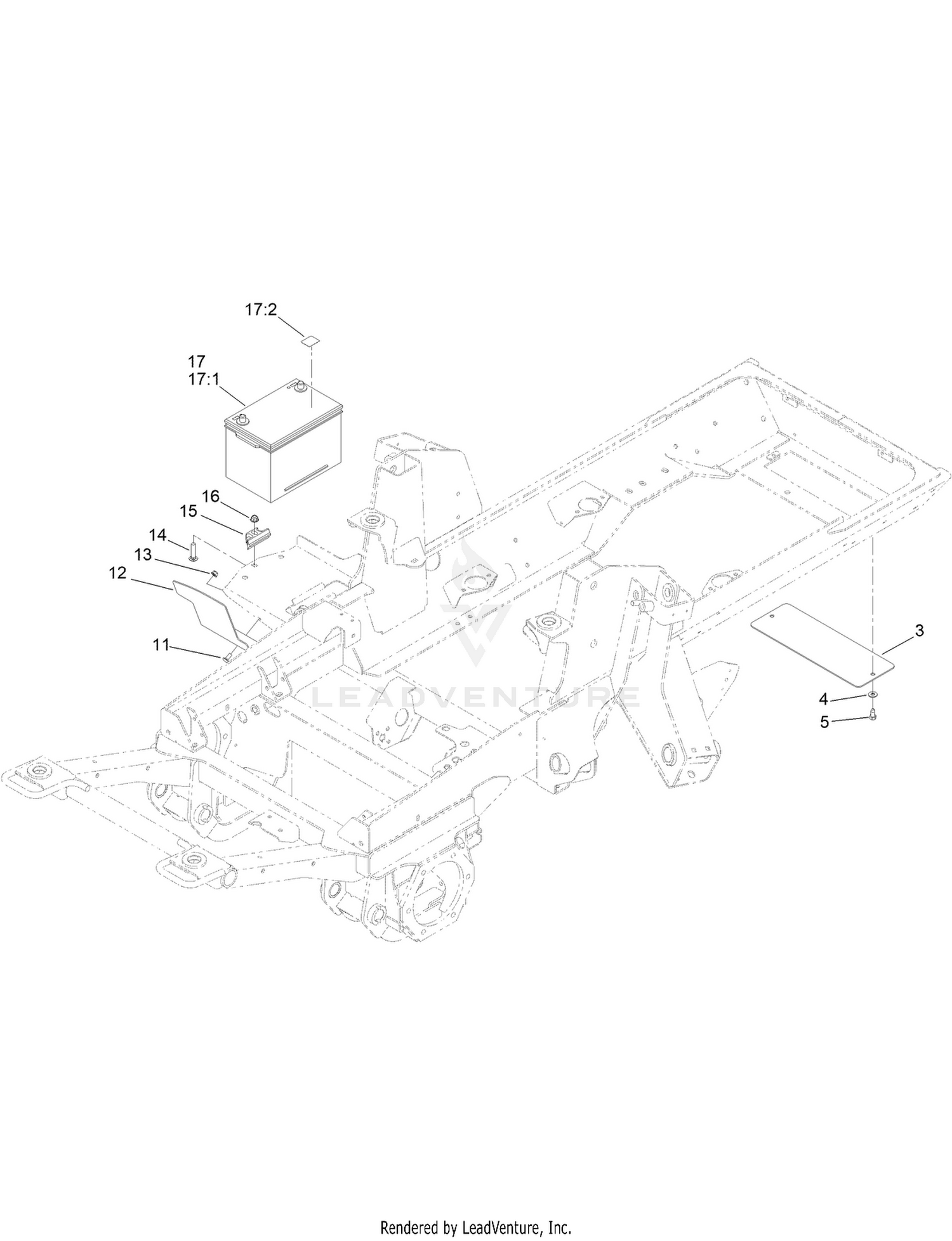

Battery, Shield and Rear Cover Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 131-1246-0P | PLATE-COVER Price: $17.40 |
| 4 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 5 | 32104-6 | SCREW-HH, TAP Price: $3.19 |
| 11 | 3230-23 | SCREW-CARR Price: $0.89 |
| 12 | 121-1512-0P | SHIELD, BATTERY Price: $33.85 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 3231-5 | SCREW-CARR Price: $1.39 |
| 15 | 138-6335 | RETAINER-BATTERY Price: $10.49 |
| 16 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 17 | 139-1005 | BATTERY KIT Price: $330.40 |
