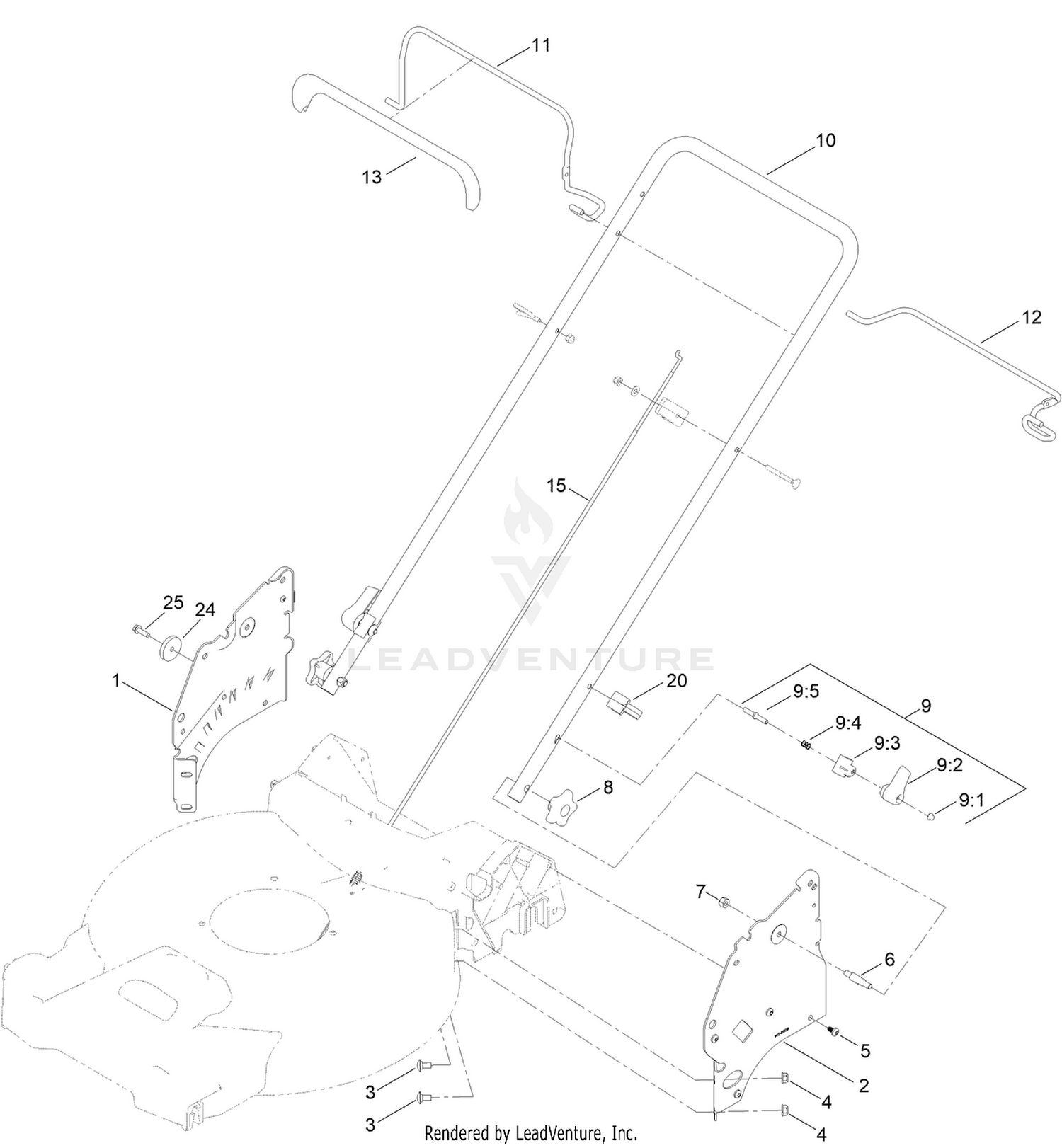

Handle Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-5507-05 | PLATE-HANDLE, RH Price: $33.99 |
| 2 | 145-5508-05 | PLATE-HANDLE, LH Price: $33.99 |
| 3 | 3230-18 | SCREW-CARR Price: $4.09 |
| 4 | 130-6655 | NUT-FLANGE, NI Price: $0.29 |
| 5 | 139-1679 | SCREW-PLASTIC,PH Price: $0.89 |
| 6 | 139-6588 | BOLT-SHOULDER, HANDLE Price: $1.59 |
| 7 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 8 | 117-5976 | KNOB-HANDLE Price: $2.49 |
| 9 | 138-3249 | QUICK RELEASE ASM Price: $10.99 |
| 10 | 145-5509-05 | HANDLE-UPPER Price: $50.99 |
| 11 | 138-3270-03 | BAIL-BRAKE Price: $13.99 |
| 12 | 137-4799-03 | BAIL-TRACTION Price: $15.99 |
| 13 | 137-4797 | COVER-BAIL Price: $4.19 |
| 15 | 127-0733 | CABLE-TRACTION Price: $17.99 |
| 20 | 114-7988 | GUIDE-CABLE Price: $2.59 |
| 24 | 161-4789 | WASHER-FLAT Price: $1.69 |
