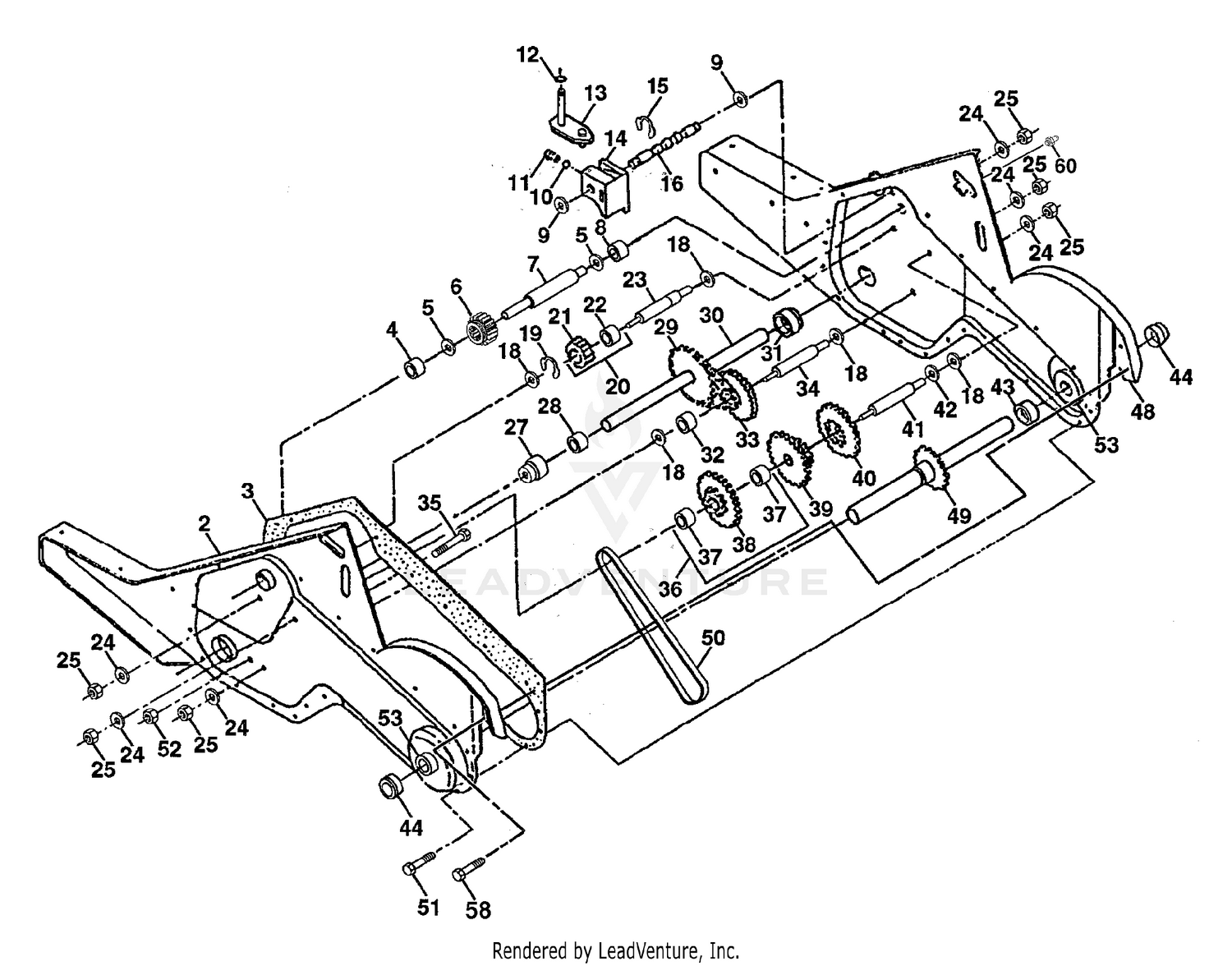

| Ref | Part Number | Description |
|---|
| 1 |
92-6564 |
DECAL-4 MATIC Price: $41.48 |
| 2 |
93-9416 |
PANEL - CONSOLE, GAUGES Price: $64.89 |
| 3 |
161963 |
Gasket, Gearcase Price: Call Us |
| 3 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 4 |
5020J |
Bearing, Needle Price: Call Us |
| 4 |
93-7483 |
LAMP-CLUSTER Price: $97.05 |
| 5 |
1370H |
Washer, Thrust 5/8 x 1.10 x 1/32 Price: Call Us |
| 5 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 6 |
137335 |
Pinion, Input Price: Call Us |
| 6 |
66-2940 |
GAUGE-FUEL Price: $178.34 |
| 7 |
145101 |
Shaft, Input Price: Call Us |
| 7 |
93-7484 |
CLUSTER-LAMP Price: $121.39 |
| 8 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 8 |
4895H |
Bearing, Needle Price: Call Us |
| 9 |
154467 |
Washer, Seal Price: Call Us |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 10 |
7392M |
Ball, Steel Price: Call Us |
| 11 |
100371K |
Spring, Shift, Fork Price: Call Us |
| 11 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 12 |
106160X |
O-Ring Price: Call Us |
| 12 |
82-3750-03 |
COVER-CONSOLE Price: $183.31 |
| 13 |
142145 |
Bracket, Shift Price: Call Us |
| 13 |
27-2360 |
SWITCH Price: $46.56 |
| 14 |
138-1911 |
PTO SWITCH KIT This part replaces 85-4980. Price: $320.00 |
| 14 |
8353J |
Fork, Shift Price: Call Us |
| 15 |
12000039 |
Ring, Klip Price: Call Us |
| 15 |
32128-33 |
NUT-HF Price: $0.25 |
| 16 |
154466 |
Shaft, Shift Price: Call Us |
| 16 |
3274-31 |
SCREW-HSBH Price: $0.89 |
| 17 |
70-1480 |
RELAY Price: $105.19 |
| 18 |
4358J |
Washer Price: Call Us |
| 19 |
12000040 |
Ring, Klip Price: Call Us |
| 21 |
102115X |
Gear, Reverse Idler Price: Call Us |
| 22 |
6803J |
Bearing, Needle Price: Call Us |
| 23 |
102111X |
Shaft, Reverse Idler Price: Call Us |
| 24 |
10040700 |
Washer, Lock 7/16 Price: Call Us |
| 25 |
73610700 |
Nut, Hex 7/16-20 Price: Call Us |
| 27 |
143009 |
Bearing, Shaft, Ground Drive L.H. Price: Call Us |
| 28 |
106390X |
Spacer 0.765 x 1.125 x 1.23 Price: Call Us |
| 29 |
102134X |
Chain #35-50 Pitch Price: Call Us |
| 30 |
150737 |
Ground Shaft Assembly Price: Call Us |
| 31 |
143008 |
Bearing, Shaft, Ground Drive R.H. Price: Call Us |
| 32 |
106388X |
Spacer 0.70 x 1.00 x 1.150 Price: Call Us |
| 33 |
102121X |
Sprocket and Gear Assembly Price: Call Us |
| 34 |
102112X |
Shaft, Reduction (2nd) Price: Call Us |
| 35 |
102101X |
Screw, Whiz, Lock 5/16-18 x 3-1/2 Price: Call Us |
| 37 |
4422J |
Bearing, Needle Price: Call Us |
| 38 |
154356 |
Sprocket, Tine Price: Call Us |
| 39 |
105345X |
Gear, Cluster, Red 1st & 2nd Price: Call Us |
| 40 |
105346X |
Gear, Reverse Price: Call Us |
| 41 |
8358J |
Shaft, Reduction (1st) Price: Call Us |
| 42 |
4220R |
Washer, Thrust Price: Call Us |
| 43 |
106146X |
Spacer 1.01 x 1.75 x 0.760 Price: Call Us |
| 44 |
155236 |
Seal, Asm. Oil Price: Call Us |
| 49 |
132688 |
Shaft, Tine Price: Call Us |
| 50 |
106147X |
Chain, Roller #50-50 Pitch Price: Call Us |
| 51 |
17720408 |
Screw 1/4-20 x 1/2 Price: Call Us |
| 52 |
73220500 |
Nut, Hex 5/16-18 Price: Call Us |
| 53 |
165140 |
Kit, Bearing, Tine Shaft Price: Call Us |
| 58 |
179520 |
Bolt Shoulder 1/4-20 x .875 Price: Call Us |
| 60 |
6855M |
Fitting Grease Price: Call Us |
