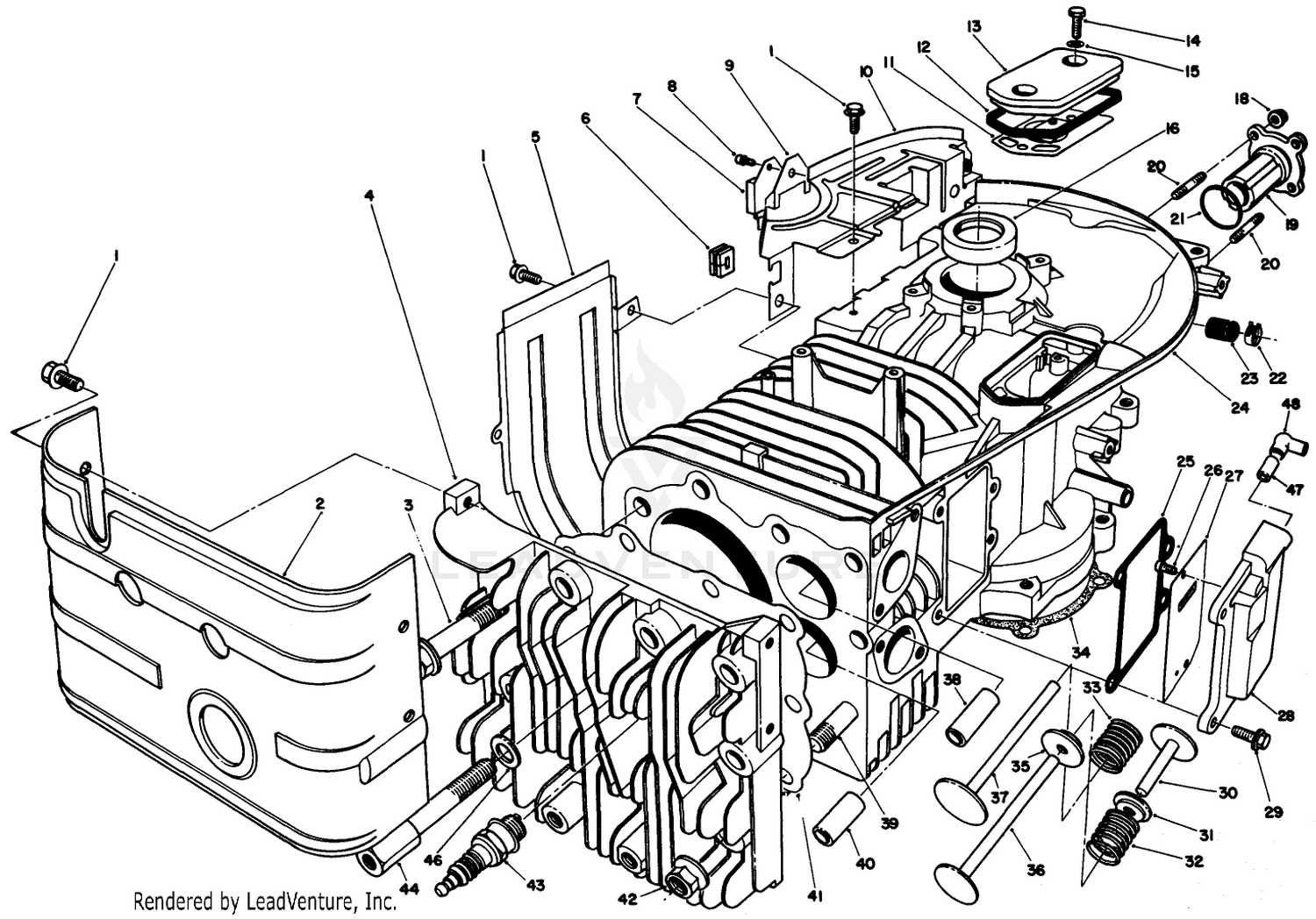

Engine Assembly
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130G0610 | Bolt-Flanged (6X10) Price: Call Us |
| 2 | 49089-2181-9H | Shroud Price: Call Us |
| 3 | 130G1055 | Bolt Price: Call Us |
| 4 | 11001-2102 | Cylinder Head Price: Call Us |
| 5 | 49089-2199-9H | Shroud Price: Call Us |
| 6 | 92071-2099 | Grommet Price: Call Us |
| 7 | 21119-2095 | Igniter Price: Call Us |
| 8 | 234b0408 | Screw Price: Call Us |
| 9 | 310702-8137A | Bracket Price: Call Us |
| 10 | 59066-2295-9H | Fan Housing Price: Call Us |
| 11 | 14069-2062 | Breather Price: Call Us |
| 12 | 11009-2339 | Gasket Price: Call Us |
| 13 | 14025-2040 | Cover Price: Call Us |
| 14 | 315501-5381A | Bolt Price: Call Us |
| 15 | 312200-7415-02 | Gasket Price: Call Us |
| 16 | 92049-2049 | Seal-Oil Price: Call Us |
| 18 | 92015-1193 | Nut Price: Call Us |
| 19 | 13107-2091 | Shaft Price: Call Us |
| 20 | 92004-2083 | Stud Price: Call Us |
| 21 | 92055-2072 | O-Ring Price: Call Us |
| 22 | 31796-6812-00 | Clip Price: Call Us |
| 23 | 92066-2096 | Plug Price: Call Us |
| 24 | 49120-6025 | Crankcase Assembly Price: Call Us |
| 25 | 11009-2502 | Gasket Price: Call Us |
| 26 | 314405-3092A | Screw Price: Call Us |
| 27 | 14025-2143 | Cover Price: Call Us |
| 28 | 49108-2011 | Cover-Valve Chamber Price: Call Us |
| 29 | 130G0616 | Bolt-Flanged (6X16) Price: Call Us |
| 30 | 12032-2058 | Tappet Price: Call Us |
| 31 | 39108-2054 | Retainer-Spring Price: Call Us |
| 32 | 49078-2058 | Spring-Valve Price: Call Us |
| 33 | 49078-2059 | Spring-Valve Price: Call Us |
| 34 | 49015-6001 | Gasket Price: Call Us |
| 35 | 12039-2052 | Rotator Price: Call Us |
| 36 | 12005-2066 | Exhaust Valve Price: Call Us |
| 37 | 12004-2076 | Intake Valve Price: Call Us |
| 38 | 49002-2070 | Guide-Intake Valve Price: Call Us |
| 39 | 92004-2082 | Stud Price: Call Us |
| 40 | 49002-2071 | Guide-Exhaust Valve Price: Call Us |
| 41 | 11004-2079 | Gasket Price: Call Us |
| 42 | 92015-2115 | Nut Price: Call Us |
| 43 | 92070-2072 | Spark Plug Price: Call Us |
| 44 | 92002-2258 | Bolt Price: Call Us |
| 46 | 410B1000 | Washer Price: Call Us |
| 47 | 92059-2142 | Tube Price: Call Us |
