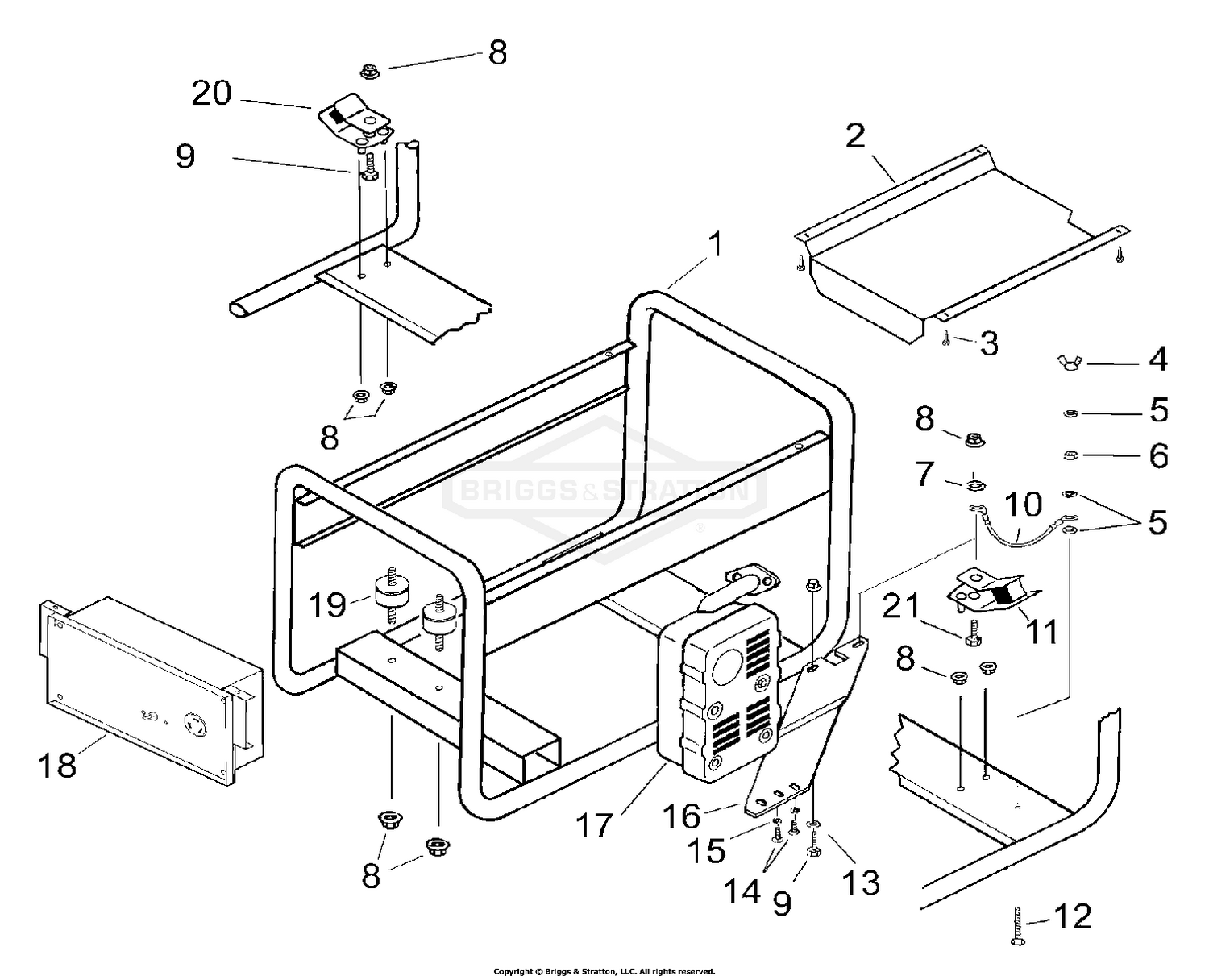

Cradle Assembly

Cradle Assembly

Parts (21)

RefPart NumberDescription
1 102698GS Cradle Pro Max 2600/3500 Price: Call Us
2 102994GS Heatshield Price: Call Us
3 ~NSP Screw self-tap PPHd 5.5-1.8 x 13mm Price: Call Us
4 102036GS Nut Wing M6-1.0 Price: Call Us
5 ~NSP Washer Shakeproof 1/4" & M6 Int Price: Call Us
6 ~NSP Nut Full M6-1.0 Price: Call Us
7 ~NSP Washer Shakeproof M8 int Price: Call Us
8 ~NSP Nut Flange M8-1.25 Price: Call Us
9 ~NSP SCREW SET M8-1.25*35MM Price: Call Us
10 102050GS Lead Earth Assy 145mm Price: Call Us
11 102031GS Vibration Mount 45 Degree Hard Price: Call Us
12 ~NSP Screw Set M6-1.0x25mm Plated Price: Call Us
13 ~NSP Washer Flat M8 & 5/16" Price: Call Us
14 ~NSP Screw Set HHD M6-1.0*12mm Price: Call Us
15 ~NSP Washer Spring M6 & 1/4" Price: Call Us
16 102081GS Bracket Exhaust Mounting Price: Call Us
17 102043GS Muffler Intek 6.5HP Price: Call Us
18 102995GS Outlet Panel assembly Price: Call Us
19 102034GS Vibration Mount 32mm Diameter Price: Call Us
20 102033GS Vibration Mount 45 Degree Soft Price: Call Us
21 102264GS Screw Set M8-1.25*40mm Price: Call Us
