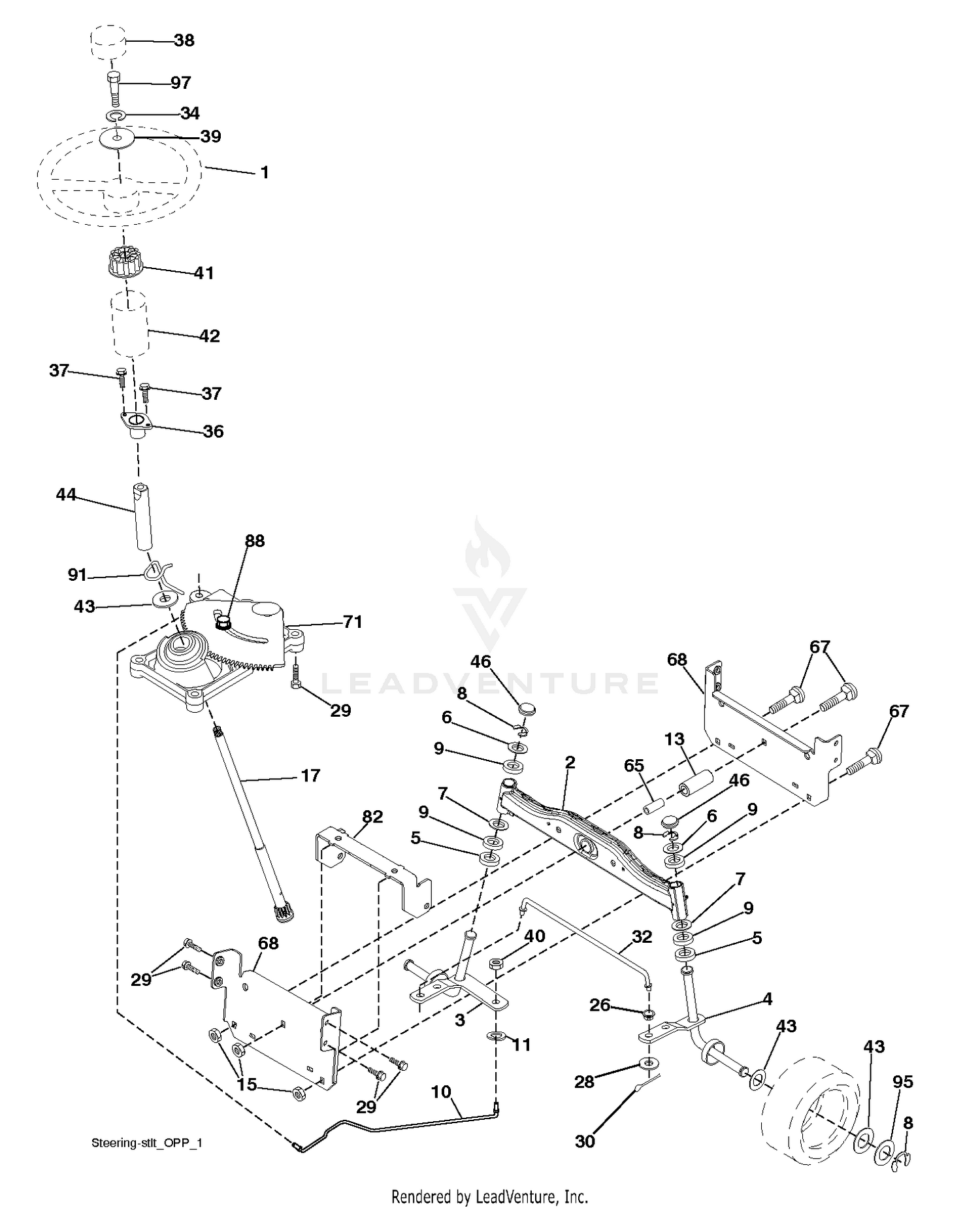

| Ref | Part Number | Description |
|---|
| 1 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 1 |
532424543 |
WHEEL.STEERING.HARD.RIM.BLAC Price: $27.99 |
| 2 |
3-6514 |
THRUST WASHER Price: $1.74 |
| 2 |
532418168 |
AXLE HALF ASM-WELDED Price: $34.99 |
| 3 |
26-1340 |
GEAR Price: $488.25 |
| 4 |
18-6430 |
KEY-SQUARE Price: $3.56 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 6 |
532121748 |
WASHER Price: $1.99 |
| 7 |
819272016 |
WASHER Price: $2.99 |
| 8 |
33-2040 |
SHIM Price: $2.71 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
26-1290 |
DISCONTINUED Price: Call Us |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 10 |
302-14 |
VENT Price: $8.03 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $44.99 |
| 11 |
253-137 |
OIL SEAL Price: $5.70 |
| 11 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 12 |
26-1310 |
DISCONTINUED Price: Call Us |
| 13 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 13 |
532136518 |
TUBE, PIVOT AXLE (2 2) Price: $6.99 |
| 14 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
237-97 |
O-RING Price: $3.43 |
| 15 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 16 |
254-90 |
BEARING-CUP Price: $11.29 |
| 17 |
254-91 |
CONE-BEARING Price: $18.65 |
| 17 |
532190753 |
SHAFT STEERING SPLINE This part replaces 532411386. Price: $32.99 |
| 18 |
26-1320 |
DISCONTINUED Price: Call Us |
| 19 |
26-1380 |
OUTPUT BRG HSG Price: $162.98 |
| 20 |
26-1330 |
DISCONTINUED Price: Call Us |
| 21 |
26-1270 |
DISCONTINUED Price: Call Us |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) Price: $2.99 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 30 |
876020412 |
COTTER PIN Price: $3.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM Price: $12.99 |
| 34 |
810040500 |
LOCKWASHER Price: $2.99 |
| 36 |
532155106 |
KIT.BUSHING This part replaces 532155099. Price: $5.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532424691 |
INSERT, WHEEL STEERING Price: $4.99 |
| 39 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.99 |
| 41 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 42 |
532169633 |
BOOT.STEERING.SHAFT.BLACK Price: $5.99 |
| 43 |
532121749 |
WASHER Price: $1.99 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $1.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE Price: $2.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $2.99 |
| 68 |
532169827 |
BRACE.AXLE.15"TIRES Price: $14.99 |
| 71 |
532175146 |
STEERING ASM Price: $64.99 |
| 82 |
532199978 |
BRACKET.SUSP.CHASSIS.FRONT.15 Price: $11.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $3.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $8.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $2.99 |
