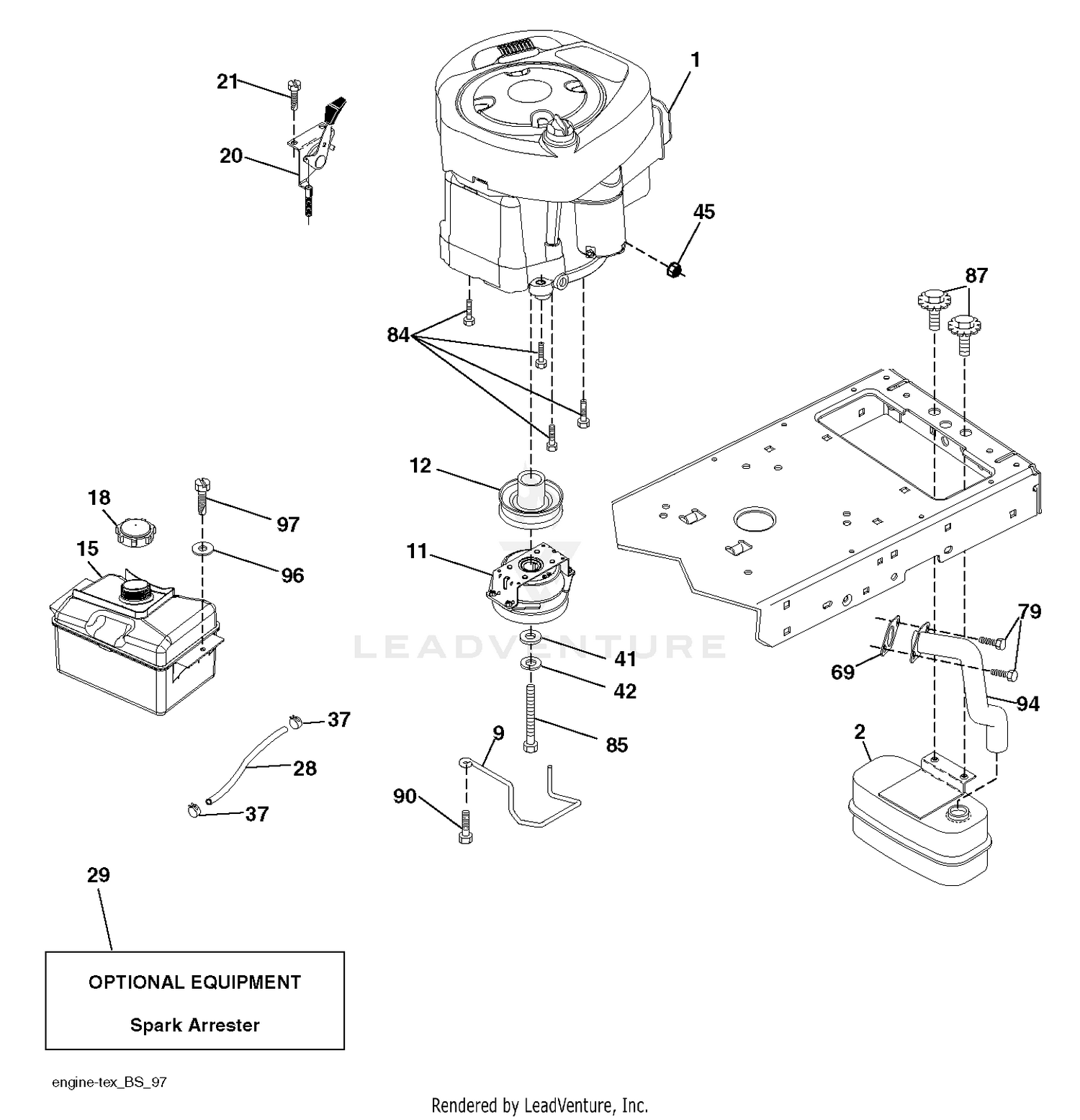

| Ref | Part Number | Description |
|---|
| 9 |
596501502 |
Keepers This part replaces 584908001. Price: $9.99 |
| 010 |
98-7531 |
HOOK-ENGINE Price: $7.56 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA Price: $44.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 020 |
100-9195 |
BOLT Price: $0.72 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 030 |
105-3780 |
GASKET-HEAD, CYLINDER Price: $189.76 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 040 |
106-6866 |
CYLINDER HEAD ASM This part replaces 98-9460. Price: $1,257.68 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 050 |
105-3705 |
CAP-SEALING This part replaces 98-9395. Price: $6.44 |
| 060 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 070 |
107-9066 |
GUIDE-VALVE, INLET This part replaces 98-9499. Price: $12.65 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 080 |
107-9067 |
GUIDE-VALVE, EXHAUST This part replaces 98-9500. Price: $13.17 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 090 |
98-9389 |
CAP-SEALING Price: $5.22 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 Price: $19.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
98-9479 |
BOLT-HEAD, CYLINDER Price: $14.42 |
| 110 |
98-9647 |
BOLT-HEAD, CYLINDER Price: $15.60 |
| 120 |
98-7509 |
O-RING Price: $4.31 |
