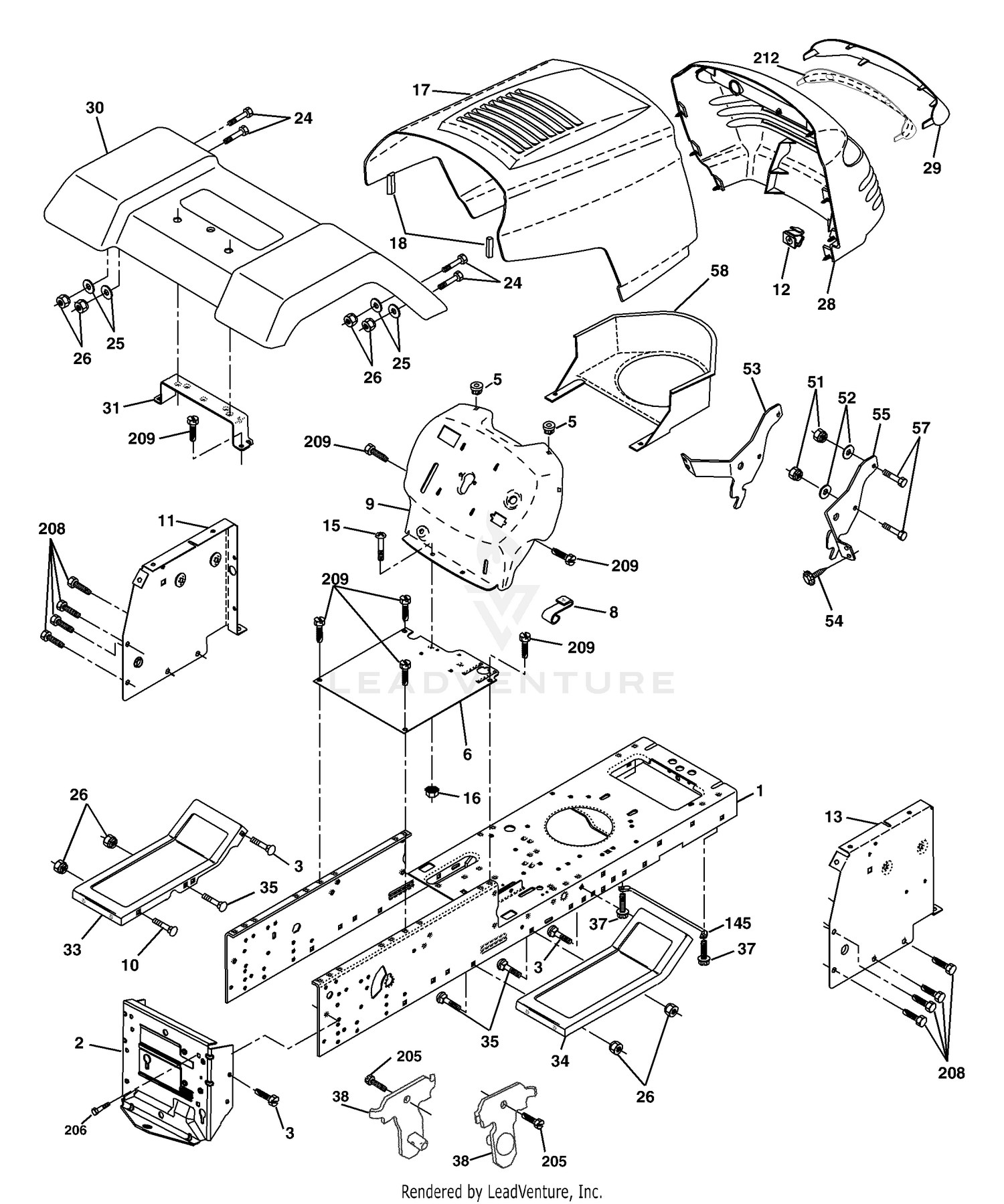

| Ref | Part Number | Description |
|---|
| 1 |
174620 |
Chassis Price: Call Us |
| 1 |
95-7508 |
SUPPORT-AXLE Price: $931.33 |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 2 |
95-7506 |
SUPPORT-AXLE Price: $360.26 |
| 3 |
106-1067 |
O-RING Price: $18.12 |
| 3 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 4 |
95-7537 |
BUSHING-FLANGED Price: $64.20 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 5 |
99-7589 |
PLUG Price: $3.73 |
| 6 |
174643X013 |
Saddle Silkscreen Price: Call Us |
| 6 |
99-7590 |
WASHER-SEAL Price: $2.94 |
| 7 |
110-4812 |
AXLE VENT ASM Price: $11.06 |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 8 |
99-7592 |
BOLT Price: $1.44 |
| 9 |
106-1068 |
O-RING Price: $7.27 |
| 9 |
168347X011 |
Dash Price: Call Us |
| 10 |
104-8643 |
PLUG Price: $10.18 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
104-8644 |
O-RING Price: $3.09 |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Grille P.L Price: Call Us |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 15 |
74180512 |
Screw Mach TRHD 5/16-18uncx3/4 Price: Call Us |
| 16 |
73510500 |
Nut Keps 5/16-18 Unc Price: Call Us |
| 17 |
159639X428 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 Unc Price: Call Us |
| 28 |
179101 |
Grille/Lens Asm. Price: Call Us |
| 29 |
140273X599 |
Lens Grille Private Label Price: Call Us |
| 30 |
169465X428 |
Fender Price: Call Us |
| 31 |
136619 |
Bracket Fender Repl 109873x Price: Call Us |
| 33 |
179716X428 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt RH Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 51 |
73800400 |
Nut Lock W/Insert 1/4-20unc Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8x16 Ga. Price: Call Us |
| 53 |
144697 |
Bracket Grille Lh Price: Call Us |
| 54 |
161464 |
Screw Hex 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Fin Hex 1/4-20 unc x .75 Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
156229 |
Insert Lens Reflect Price: Call Us |
