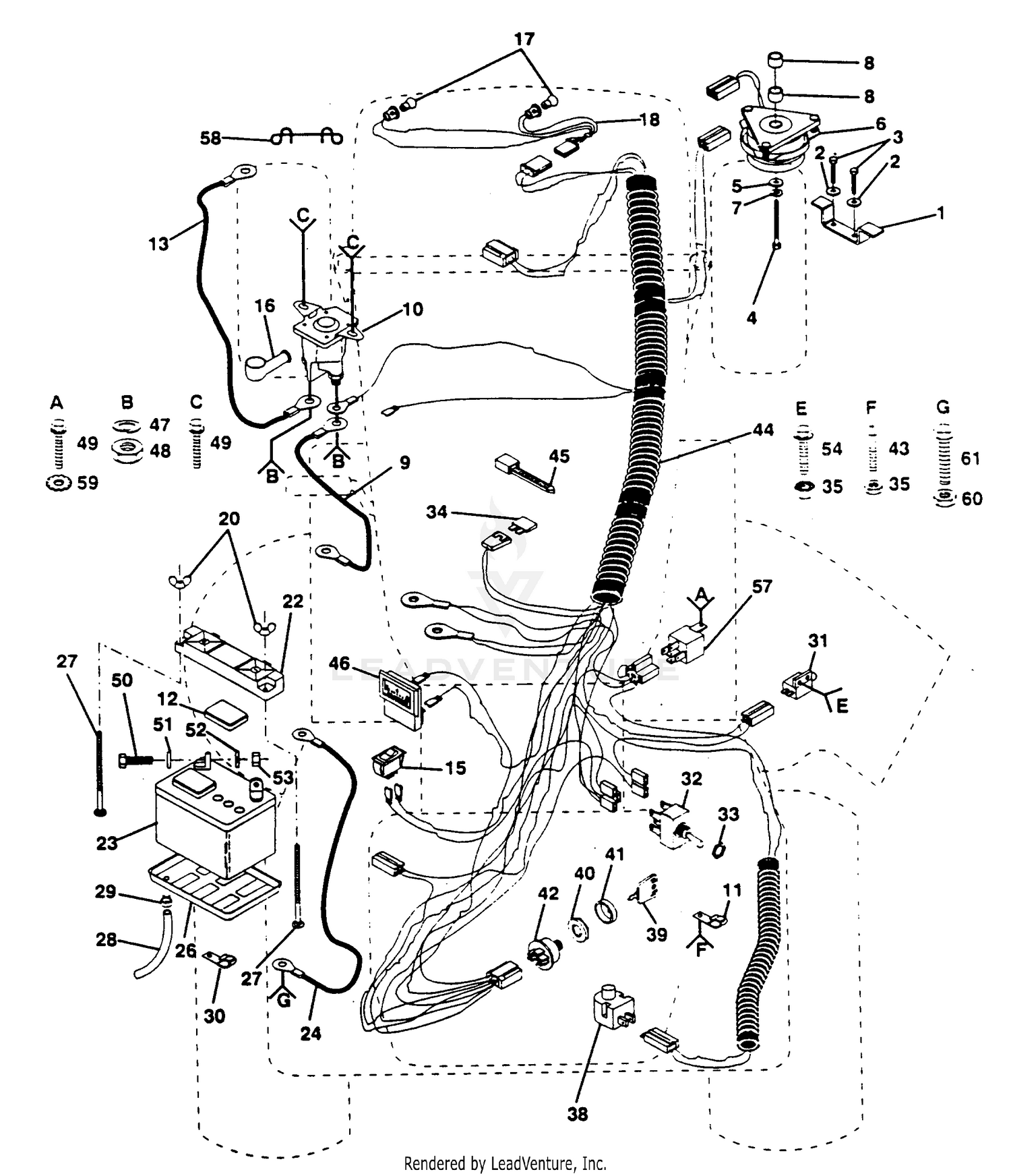

| Ref | Part Number | Description |
|---|
| 1 |
532110882 |
Stop, Clutch (AYP part number) Price: $2.27 |
| 1 |
7-0536 |
HOLD DOWN This part replaces 7-0534. Price: $15.71 |
| 2 |
239-18 |
DISCONTINUED Price: Call Us |
| 2 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 3 |
32103-12 |
NUT-WING Price: $1.15 |
| 3 |
874780612 |
Bolt, Hex 3/8-16 x 3,4 (AYP part number) Price: $3.99 |
| 4 |
27-2140 |
DISCONTINUED Price: Call Us |
| 4 |
871130724 |
Bolt, Hex 7/16-20 x 1-1/2 Grade 5 Price: $2.99 |
| 5 |
108-3831 |
FILTER-FUEL This part replaces 18-1520. Price: $10.09 |
| 5 |
532126197 |
Washer (AYP part number) Price: $4.99 |
| 6 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 6 |
532109550 |
Clutch, Electric (AYP part number) Price: $255.01 |
| 7 |
108-3283 |
HOSE-FUEL This part replaces 27-2120. Price: $4.60 |
| 7 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 8 |
10-9080 |
DISCONTINUED Price: Call Us |
| 8 |
532106367 |
Spacer, Clutch (AYP part number) Price: $9.17 |
| 9 |
3258-20 |
DISCONTINUED Price: Call Us |
| 9 |
532124770 |
Cable, Battery (AYP part number) Price: $8.99 |
| 10 |
28-2060 |
DISCONTINUED Price: Call Us |
| 10 |
532109081 |
Solenoid (AYP part number) Price: $22.99 |
| 11 |
10-7950 |
GAS CAP Price: $59.46 |
| 11 |
532124967 |
Clip, Insulated (AYP part number) Price: $5.46 |
| 12 |
321-4 |
SCREW-HH Price: $0.99 |
| 12 |
532121264 |
Battery, Caps (AYP part number) Price: $10.91 |
| 13 |
322-2 |
SCREW-HH Price: $0.69 |
| 13 |
532005114 |
Cable, Battery (AYP part number) This part replaces 532005115. Price: $8.46 |
| 14 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 15 |
13-3710 |
WASHER Price: $3.05 |
| 15 |
532110712 |
Switch, Light (AYP part number) Price: $4.99 |
| 16 |
10-6130 |
DISCONTINUED Price: Call Us |
| 16 |
532124783 |
Cover, Terminal (AYP part number) Price: $4.99 |
| 17 |
353-561 |
DISCONTINUED Price: Call Us |
| 17 |
532004152 |
LIGHTBULB This part replaces 532124893. Price: $2.99 |
| 18 |
5-0946 |
KEY-SQUARE Price: $1.76 |
| 18 |
532110859 |
Harness, Light Socket (AYP part number) Price: $17.84 |
| 19 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 20 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 20 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 21 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 22 |
3-8516 |
DISCONTINUED Price: Call Us |
| 22 |
532150109 |
BATTERY HOLDDOWN This part replaces 532102476. Price: $4.99 |
| 23 |
3218-2 |
NUT-JAM Price: $0.25 |
| 23 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121537. Price: $139.99 |
| 24 |
532124773 |
Cable, Ground (AYP part number) Price: $4.99 |
| 25 |
51-2710 |
DISCONTINUED This part replaces 5-1894. Price: Call Us |
| 26 |
3217-6 |
NUT-HEX Price: $1.19 |
| 26 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $3.99 |
| 27 |
3217-5 |
NUT-HEX Price: $0.25 |
| 27 |
872240460 |
Bolt, Carriage 1/4-20 x 7-1/2 (AYP part number) Price: $3.99 |
| 28 |
3-6558 |
THRUST WASHER Price: $14.45 |
| 28 |
532007697 |
Tube, Tray, Battery (AYP part number) This part replaces 532100541. Price: $6.23 |
| 29 |
23-4590 |
DISCONTINUED Price: Call Us |
| 29 |
532109596 |
Clamp, Hose (AYP part number) Price: $2.99 |
| 30 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 30 |
532100207 |
Clip (AYP part number) Price: $2.99 |
| 31 |
5-3934 |
BOLT-CASTER Price: $55.92 |
| 31 |
532104445 |
Switch, Interlock (AYP part number) Price: $9.99 |
| 32 |
532126018 |
Switch, P.T.O. Price: $17.96 |
| 32 |
74-3730 |
SPACER-SPINDLE, REAR This part replaces 217-96. Price: $5.06 |
| 33 |
253-111 |
SEAL-OIL Price: $6.87 |
| 33 |
532004022 |
Hex Nut (AYP part number) This part replaces 532124932. Price: $2.99 |
| 34 |
254-78 |
BEARING-CONE Price: $12.22 |
| 34 |
532108824 |
Fuse (AYP part number) Price: $3.99 |
| 35 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 35 |
873951000 |
Nut, Keps #10-32 (AYP part number) Price: $5.99 |
| 36 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 37 |
75-9440 |
HUB ASM This part replaces 217-95. Price: $131.34 |
| 38 |
217-60 |
RIM Price: $110.16 |
| 38 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 39 |
28-3680 |
TIRE Price: $118.18 |
| 39 |
532122147 |
Key (AYP part number) Price: $4.99 |
| 40 |
232-24 |
STEM-VALVE Price: $4.03 |
| 40 |
532124211 |
Nut, Ignition (AYP part number) This part replaces 532109788. Price: $3.99 |
| 41 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 41 |
584446901 |
KIT.IGN.BOOT/NUT This part replaces 532109787. Price: $4.99 |
| 42 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 42 |
532365402 |
KIT.SWITCH.IGNITN This part replaces 532125104. Price: $17.99 |
| 43 |
3219-14 |
NUT-HEX Price: $0.25 |
| 43 |
874641008 |
Screw. Slot Pan Hd. #10-32 x 1/2 (AYP part number) Price: $2.99 |
| 44 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 44 |
532124219 |
Harness. Ignition Price: $3.33 |
| 45 |
32153-4 |
NUT-HEX, SIDE DEFORM Price: $0.75 |
| 45 |
532007192 |
WIRE TIE This part replaces 532124756. Price: $3.99 |
| 46 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 46 |
532122822 |
Ammeter (AYP part number) Price: $11.99 |
| 47 |
6-1600 |
SOLENOID Price: $55.95 |
| 47 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 48 |
3218-3 |
NUT-JAM Price: $0.25 |
| 48 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 49 |
27-2490 |
DISCONTINUED Price: Call Us |
| 49 |
817190408 |
Screw, Hex Washer Hd. Thd. Cutting 1 4-20 x 1/2 (AYP part number) Price: $5.99 |
| 50 |
3-6685 |
SPRING Price: $10.99 |
| 50 |
874760412 |
Bolt, Hex 1/4-20 x 3/4 (AYP part number) Price: $3.99 |
| 51 |
42-2390 |
SWITCH This part replaces 27-5760. Price: $79.18 |
| 51 |
819091016 |
Washer 9/32 x 5/8 x 16 Ga. (AYP part number) Price: $2.99 |
| 52 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 52 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 53 |
218-461 |
NUT-HH Price: $2.50 |
| 53 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 54 |
28-2100 |
DISCONTINUED Price: Call Us |
| 54 |
874641008 |
Screw, Slotted Pan Head #10-32 x 1/2 (AYP part number) This part replaces 871031008. Price: $2.99 |
| 55 |
10-8120 |
BATTERY BOLT Price: $29.86 |
| 56 |
24-7930 |
DISCONTINUED Price: Call Us |
| 57 |
3-8168 |
NEG GROUND DECAL Price: $27.05 |
| 57 |
532109748 |
Assembly, Relay (AYP part number) Price: $19.99 |
| 58 |
104-8162 |
BATTERY-DRY This part replaces 28-1400. Price: $114.99 |
| 58 |
532121465 |
Tie, Wire (AYP part number) Price: $2.38 |
| 59 |
218-331 |
BATTERY BOOT Price: $9.89 |
| 59 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 60 |
321-3 |
SCREW-HH Price: $0.28 |
| 60 |
873680600 |
Nut, Crownlock 3/8 Price: $1.99 |
| 61 |
874760612 |
Bolt, Hex, Fin 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
