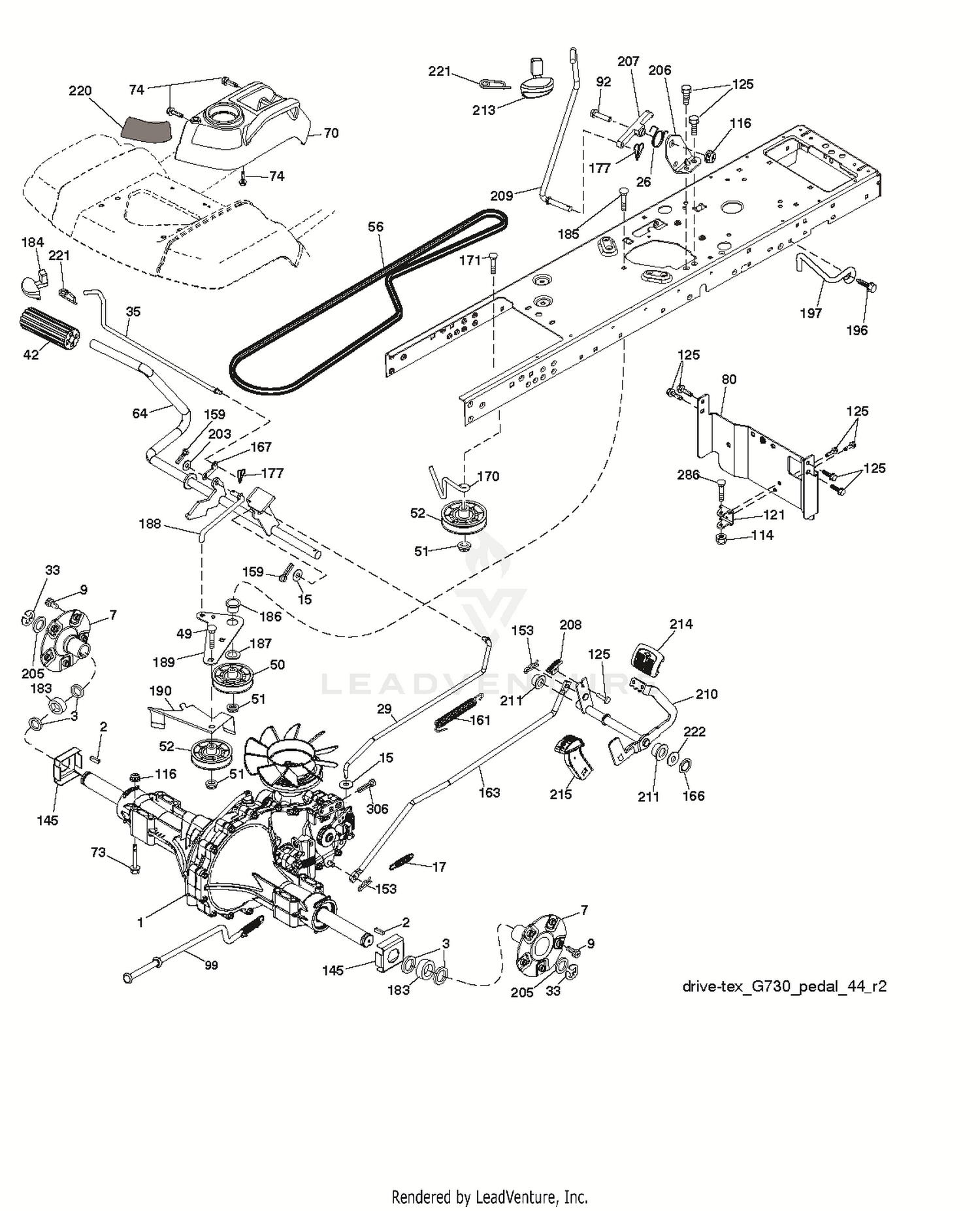

| Ref | Part Number | Description |
|---|
| 2 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 7 |
586935402 |
HUB.PNT.GT.PM.1IN.AXLE.E-DIP Price: $54.99 |
| 9 |
596218701 |
Bolts Price: $2.99 |
| 10 |
115-3038 |
CYLINDER HEAD COVER ASM This part replaces 115-4130. Price: $314.51 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 20 |
108-2857 |
SHIELD-BREATHER Price: $0.97 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 29 |
532418186 |
ROD BRAKE Price: $29.99 |
| 30 |
105-3712 |
GASKET-COVER, HEAD Price: $24.05 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 35 |
590605902 |
ROD ROD.PARKINGBRAKE.GT.HUSQ/P Price: $7.99 |
| 40 |
110-3715 |
VALVE-BREATHER Price: $173.99 |
| 42 |
532008833 |
NEEDS DESCRIPTION Price: Call Us |
| 49 |
596136201 |
Bolts Price: $3.99 |
| 50 |
110-3714 |
COVER-BREATHER Price: $22.08 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855001 |
Belts Price: $34.99 |
| 60 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 70 |
98-7766 |
PIPE-RETURN, WATER Price: $9.95 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws Price: $2.99 |
| 80 |
532418184 |
STRAP.TORQUE.YT.G700 Price: $27.99 |
| 80 |
98-9455 |
NUT-CAP Price: $4.77 |
| 90 |
98-9454 |
GASKET Price: $1.43 |
| 92 |
595305701 |
Screws Price: $3.99 |
| 99 |
590640201 |
ROD ASSY BYPASS G730 Price: $6.99 |
| 100 |
107-9075 |
PLUG-FILLER, OIL Price: $7.25 |
| 110 |
99-3446 |
O-RING This part replaces 120-2560. Price: $7.11 |
| 114 |
596583702 |
Nuts Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 120 |
108-2858 |
TUBE-BREATHER Price: $8.87 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 130 |
108-2859 |
CLAMP-HOSE Price: $2.19 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 153 |
532004497 |
RETAINER M Price: $4.99 |
| 159 |
596029501 |
Pins Price: $2.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
532418185 |
ROD PEDAL CONTROL Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts Price: $2.99 |
| 177 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 183 |
598873001 |
SPACER Price: $4.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop Price: $4.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T Price: $2.99 |
| 205 |
532123800 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch Price: $5.99 |
| 208 |
596564101 |
Gears Price: $4.99 |
| 209 |
590527802 |
ROD ROD.CRUISECONTROL.GT.HUSQ/ Price: $6.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 286 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 306 |
596029601 |
Pins Price: $1.99 |
