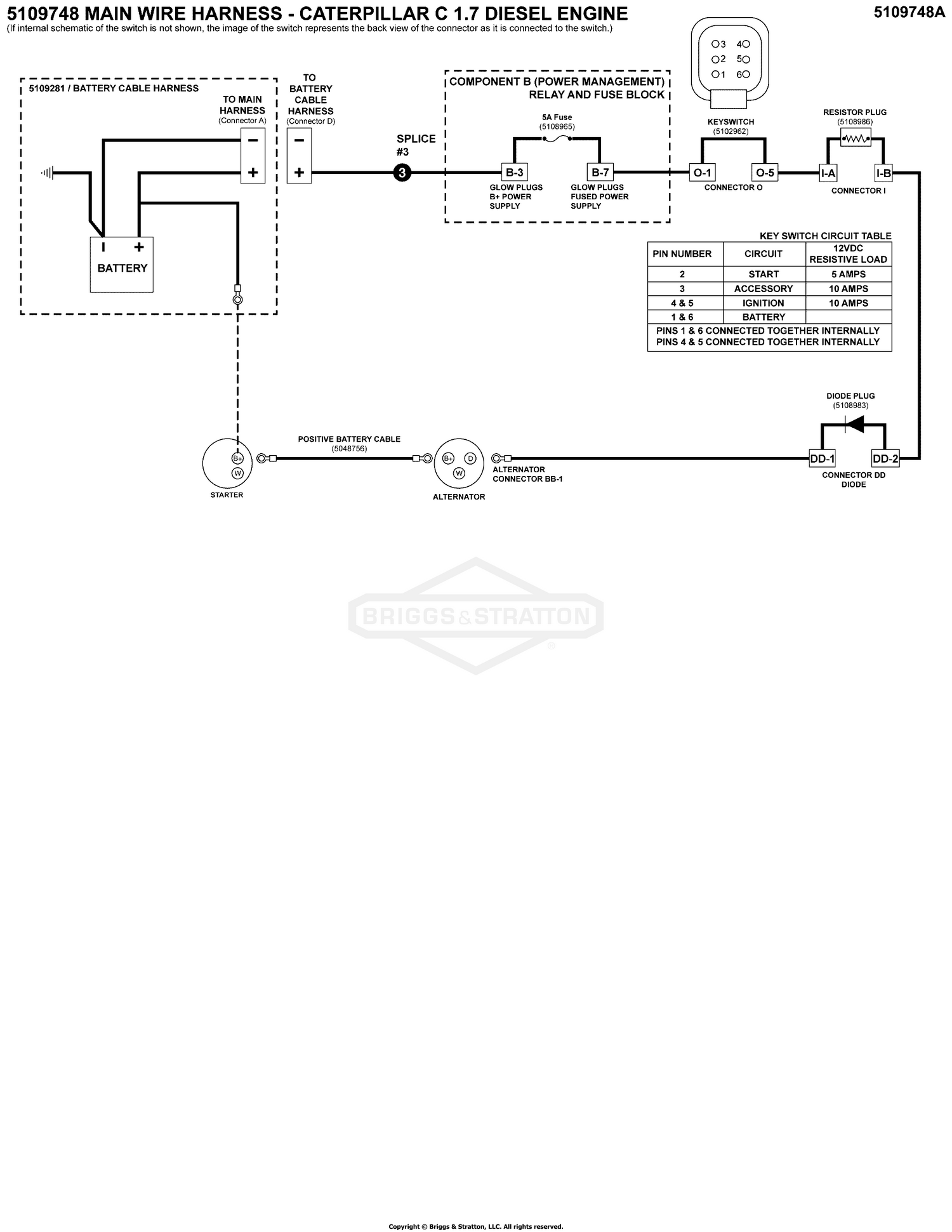

Electrical Schematic - Charging Circuit
Parts (6)
| Ref | Part Number | Description |
|---|---|---|
| 5048756 | 5048756SM | BATTERY CABLE, POSITI This part replaces 5048756. Price: $18.51 |
| 5102962 | 5102962FS | SWITCH, Ignition This part replaces 5102962. Price: $91.67 |
| 5108965 | 5108965 | FUSE, MINI 5 AMP 0297005 Price: Call Us |
| 5108986 | 5108986 | RECEPTACLE,DEUTSCH RESISTOR DT04-3P-EP10 Price: Call Us |
| 5109281 | 5109281FS | HARNESS This part replaces 5109281. Price: $137.45 |
| 5109748 | 5109748FS | HARNESS, WIRING This part replaces 5109748. Price: $897.82 |
