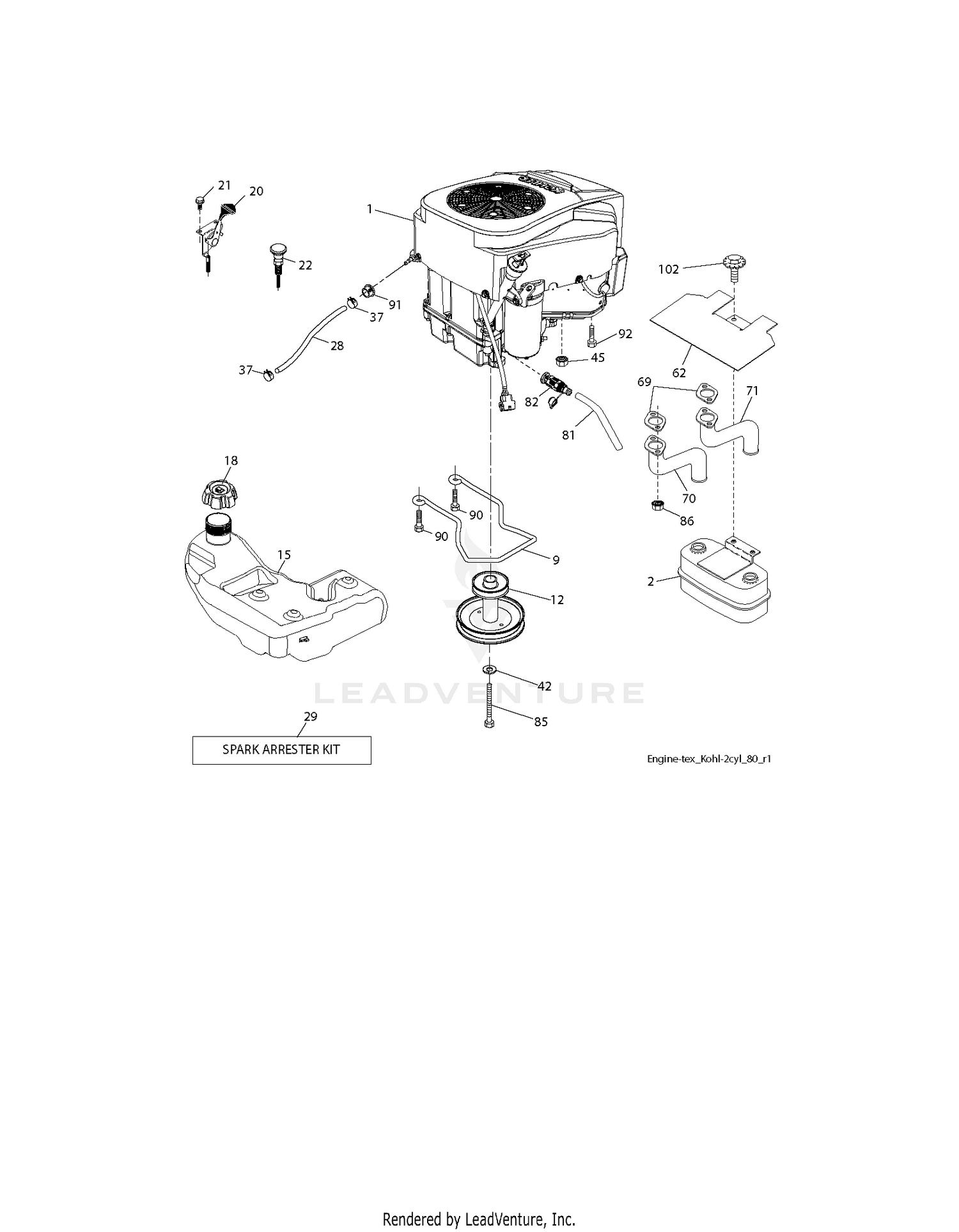

| Ref | Part Number | Description |
|---|
| 1 |
325-5 |
SCREW-HH Price: $1.20 |
| 2 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 4 |
53-5250-01 |
HANDLE - LIFT, LONG Price: $58.10 |
| 5 |
62-9130 |
GRIP-HANDLE Price: $7.92 |
| 6 |
53-5260-01 |
HANDLE - LIFT, SHORT Price: $107.16 |
| 7 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 8 |
5-4693 |
CHAIN Price: $30.29 |
| 9 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 9 |
596501502 |
Keepers Price: $9.99 |
| 10 |
282-13 |
DISCONTINUED Price: Call Us |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 12 |
532405472 |
RP_PULLEY ENGINE This part replaces 586728901. Price: $34.99 |
| 13 |
53-5100-01 |
CENTER FRAME Price: $2,251.94 |
| 14 |
32153-5 |
NUT-HEX Price: $1.59 |
| 15 |
12-0010 |
U BOLT W.A. Price: $81.76 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
596321701 |
Screws Price: $2.99 |
| 22 |
5-1091 |
SPACER Price: $4.98 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 23 |
325-10 |
SCREW-HH Price: $1.82 |
| 24 |
53-4910-01 |
DRAWBAR Price: $939.13 |
| 25 |
3272-38 |
PIN-COTTER Price: $3.05 |
| 26 |
53-5230-01 |
SUPPORT-FRAME Price: $157.68 |
| 27 |
327-23 |
SCREW-HH Price: $3.60 |
| 28 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
3296-24 |
NUT-HEX Price: $4.44 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 31 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550-01. Price: $161.64 |
| 32 |
53-4970-01 |
HITCH EXTENSION Price: $164.85 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers Price: $2.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 Price: $17.99 |
| 71 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 Price: $19.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
