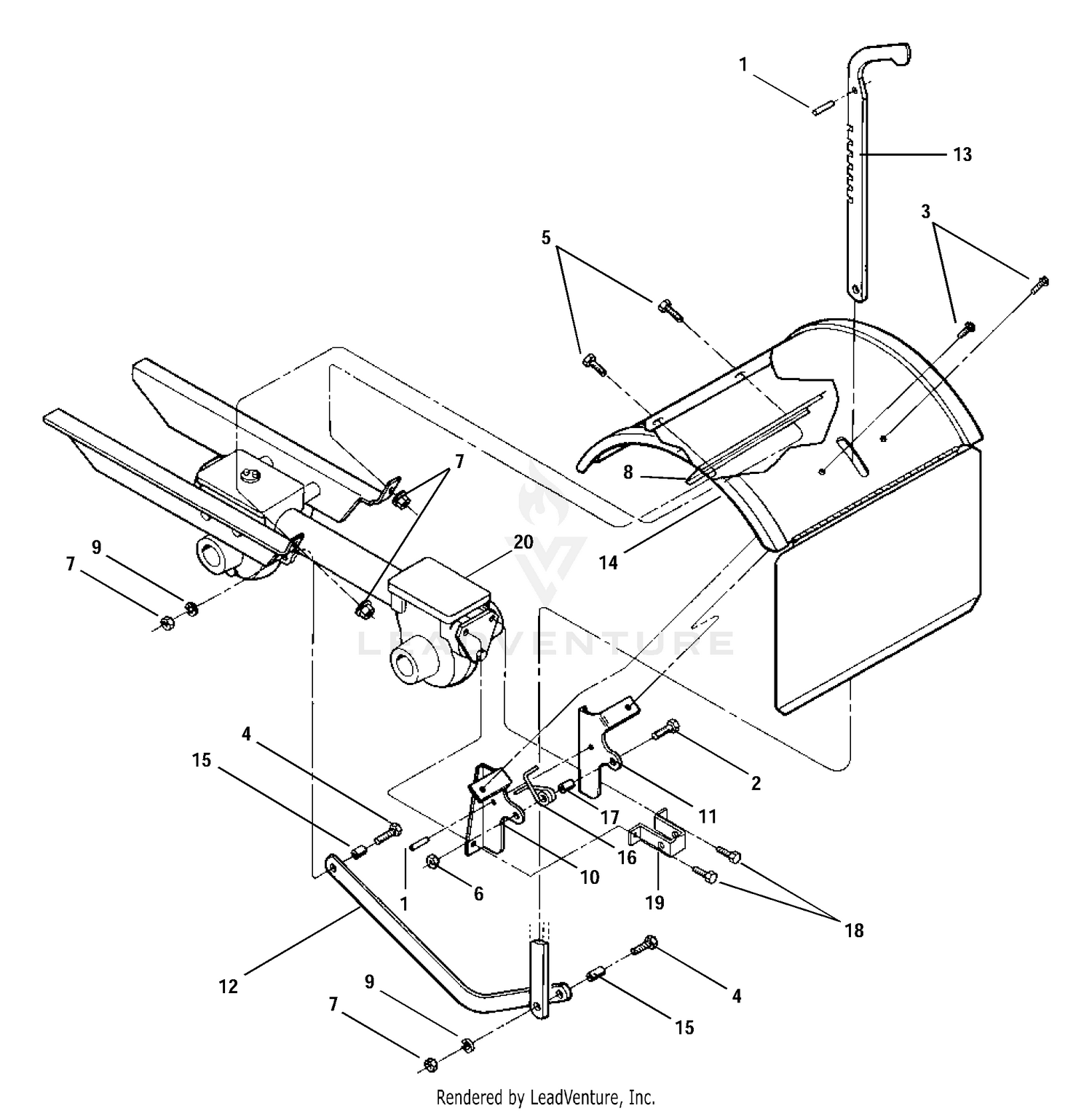

| Ref | Part Number | Description |
|---|
| 1 |
715-04034 |
ROLL PIN This part replaces 1185469. Price: $6.01 |
| 2 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 3 |
710-0599 |
Screw, Self-Tapping,1/4-20 x 1/2 Price: $3.86 |
| 4 |
710-0874 |
Hex Hd. Screw, 5/16-18 x 1-1/4 Price: $6.01 |
| 5 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 |
712-0324 |
Lock Nut, 1/4-20 Price: $3.38 |
| 7 |
712-0429 |
Lock Nut, 5/16-18 Price: $3.56 |
| 8 |
1916707001 |
SUPPORT BRACKET CHANN Not Available This part replaces 1916707. Price: |
| 9 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 10 |
786-04290-0638 |
HOOD BRACKET (LH) Not Available This part replaces 1916120001. Price: |
| 11 |
786-04291-0638 |
HOOD BRACKET (RH) Not Available This part replaces 1916119001. Price: |
| 12 |
786-04104-0638 |
Depth Drag Bar This part replaces 1916121001. Price: $32.17 |
| 13 |
786-04292A-0638 |
Depth Adjuster Bar This part replaces 1916118001. Price: $58.80 |
| 15 |
GW-55088 |
BUSHING Not Available Price: |
| 16 |
732-04320 |
Torsion Spring This part replaces GW-9384. Price: $3.85 |
| 17 |
GW-9534 |
Spacer Price: $3.70 |
| 18 |
710-04048 |
Hex Hd. Flange Screw, 5/16-18 x 1 Price: $4.19 |
| 19 |
786-04191-0637 |
HOOD STOP BRACKET Not Available This part replaces 786-04191. Price: |
