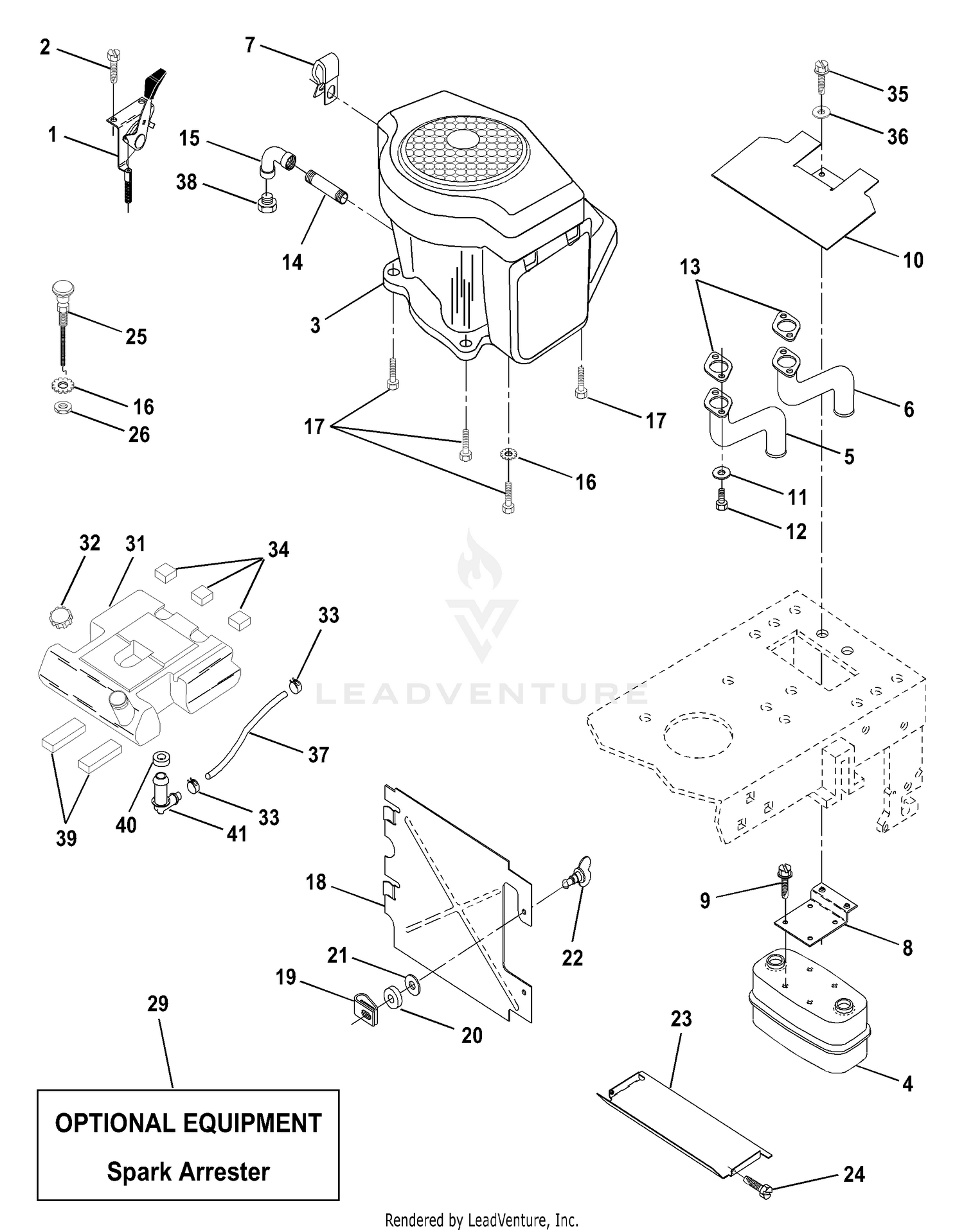

| Ref | Part Number | Description |
|---|
| 1 |
532143443 |
CONTROL.THROTTLE This part replaces 532137214. Price: $29.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE This part replaces 532137978. Price: $39.99 |
| 5 |
532136215 |
MANIFOLD TUBE LH Price: $23.27 |
| 6 |
532136216 |
MANIFOLD TUBE RH Price: $23.71 |
| 7 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 8 |
532122439 |
BRACKET MUFFLER Price: $6.27 |
| 9 |
596437001 |
Screws This part replaces 817190408. Price: $2.99 |
| 10 |
532143600 |
HEAT SHIELD Price: $6.99 |
| 11 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 12 |
874570512 |
Screw Hex Skt 5/16-18 unc x 3/4 Price: $3.99 |
| 14 |
813280336 |
Nipple Pipe 3/8 Npt X 4-1/2" Price: $2.42 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 18 |
532133747 |
HEAT SHIELD Price: $3.99 |
| 19 |
532105839 |
RECEPTACLE LT Price: $3.99 |
| 20 |
532105838 |
RETAINER LT Price: $4.99 |
| 21 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 22 |
532123650 |
STUD 1/4 TURN Price: $4.99 |
| 23 |
532128953 |
HEAT SHIELD Price: $3.08 |
| 24 |
817021008 |
SCREW Price: $3.99 |
| 25 |
532132781 |
CHOKE CONTROL This part replaces 532132782. Price: $22.99 |
| 26 |
873610600 |
NUT Price: $2.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532151346 |
FUEL TANK 3.5G This part replaces 532141070. Price: $84.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532008543. Price: $14.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
