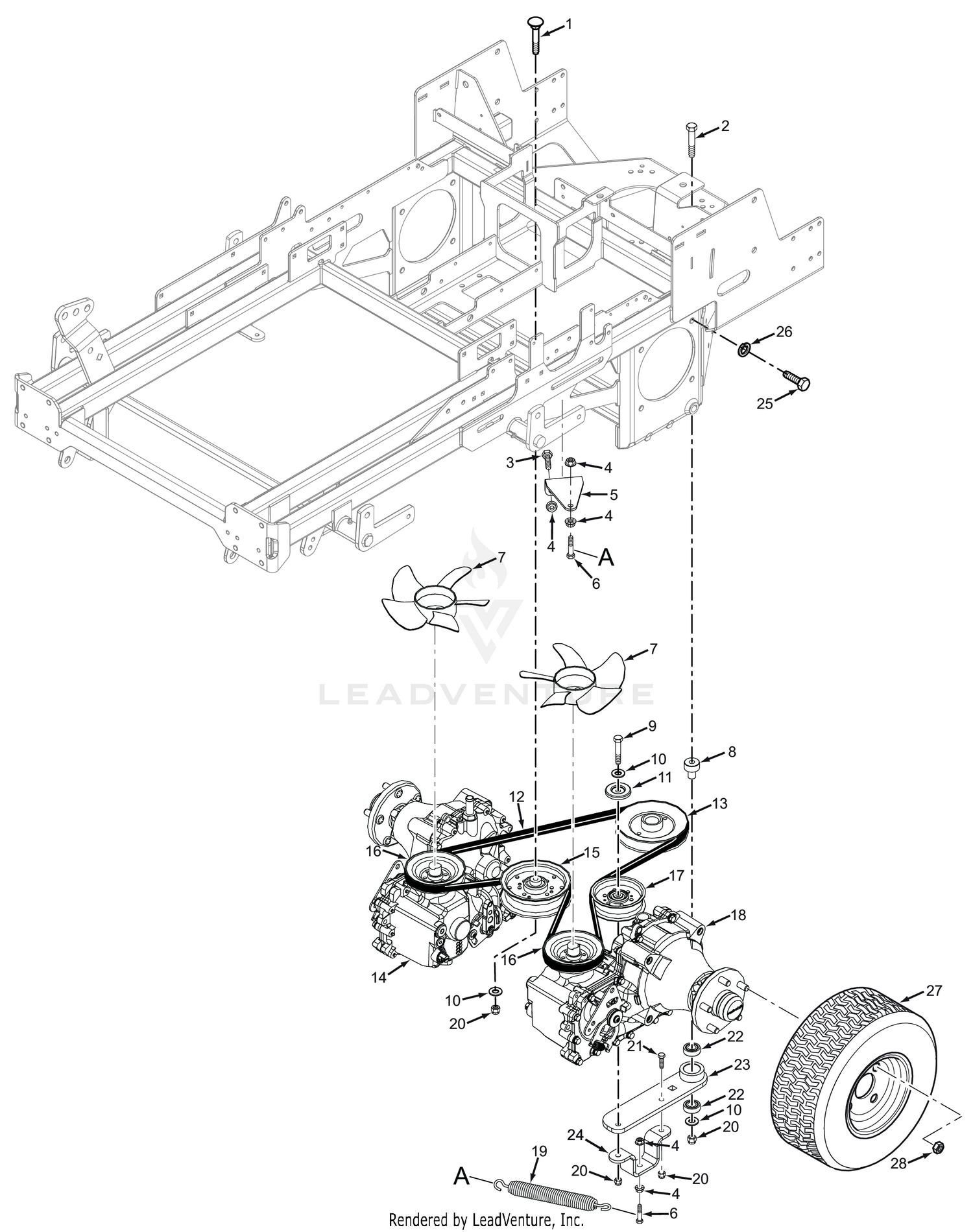

SCZII DRIVE SYSTEM COMPONENTS

SCZII DRIVE SYSTEM COMPONENTS

Parts (76)

RefPart NumberDescription
1 04003-21 Carriage Bolt, 3/8-16 x 2-1/2" Price: Call Us
1 139-2564 NUT-LUG This part replaces 242-50. Price: $0.99
2 04001-54 Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us
2 28-3680 TIRE This part replaces 231-64. Price: $118.18
3 04001-19 Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us
3 217-60 RIM Price: $110.16
4 04019-04 NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us
4 3272-13 PIN-COTTER Price: $0.25
5 425385 Mounting Bracket, Spring - Idler Arm Price: Call Us
5 99-3139 NUT This part replaces 11-5800. Price: $16.11
6 04001-136 Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us
6 10-6821 BRAKE DRUM ASM This part replaces 10-6820. Price: $170.90
7 111512 DISCONTINUED This part replaces 10-6830. Price: Call Us
7 HG71906 Kit, Fan / Pulley Price: Call Us
8 11-1579 DISCONTINUED-SEE MPV NOTES This part replaces 215-73. Price: Call Us
8 43504 Pivot, Idler Long - 52" Price: Call Us
9 04001-22 Capscrew, Hex Head 3/8-16 x 2.75" Price: Call Us
9 329-3 SCREW-HH Price: $0.22
10 04043-04 Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us
10 3255-7 WASHER-LOCK/EXT Price: $1.39
11 325-11 SCREW-HH Price: $1.93
11 424367 Quick Pin, 5/16" Dia. Price: Call Us
12 10-8000 BRAKE BRACKET *B Price: $37.62
12 483165 Belt, Pump Drive STT Price: Call Us
13 237-80 O-RING Price: $6.10
13 484098 Pulley, 5.80" Dia. - 1.125 Bore Price: Call Us
14 353-389 FITTING-ELBOW, 45 DEG Price: $36.57
14 483798 Transaxle, RH Price: Call Us
15 32108-10 DISCONTINUED Price: Call Us
15 483215 Idler Pulley, Belt Clutch Price: Call Us
16 27-2580 DISCONTINUED This part replaces 10-6450. Price: Call Us
16 HG71906 Kit, Fan / Pulley Price: Call Us
17 10-8180 TUBING CLAMP Price: $30.53
17 484128 Pulley, 4" Dia. Idler Price: Call Us
18 3220-2 NUT-JAM Price: $0.50
18 483797 Transaxle, LH Price: Call Us
19 3290-318 DISCONTINUED Price: Call Us
19 484202 Spring, Pump Drive Price: Call Us
20 04021-09 HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us
20 10-6350 CONTROL ROD WA Price: $102.40
21 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us
21 321-2 SCREW-HH Price: $2.79
22 3253-3 WASHER-LOCK Price: $0.31
22 48224 BEARINGS, BALL, NEUTRAL RETURN Price: Call Us
23 3256-22 WASHER-FLAT Price: $0.39
23 462259 Idler Arm Assembly Price: Call Us
24 10-8220 TOOL BOX PAD Price: $24.12
24 425386 Mounting Bracket, Idler Price: Call Us
25 04001-70 Bolt, Hex Head 1/2-13 x 1-1/4" Price: Call Us
25 10-6430 DISCONTINUED Price: Call Us
26 04030-06 Lockwasher, 1/2" Spring Price: Call Us
26 3253-7 WASHER-LOCK Price: $0.27
27 3217-9 NUT-HH Price: $0.37
27 484024 Wheel Assembly, 24 x 12-12 4-Ply (5-Hole) Price: Call Us
28 04028-02 Wheel Nut, 1/2-20 x 13/16 Price: Call Us
28 3296-3 NUT-LOCK Price: $0.54
29 3272-2 PIN-COTTER Price: $2.29
30 10-5890 DISCONTINUED Price: Call Us
31 329-7 SCREW-HH Price: $0.22
32 11-8840 DISCONTINUED Price: Call Us
33 125-5196 BUSHING This part replaces 3-0348. Price: $6.00
34 20-7650 DISCONTINUED Price: Call Us
35 3217-5 NUT-HEX Price: $0.25
36 136-8446 KIT, CENTER PULL FRAME This part replaces 12-8200. Price: $340.89
37 283-1 PIN-CLEVIS Price: $1.63
38 282-2 YOKE Price: $30.04
39 3272-6 PIN-COTTER Price: $0.25
40 10-8010 DISCONTINUED X-REF Price: Call Us
41 11-5790 KEY-SQUARE Price: $17.50
42 3256-26 WASHER-FLAT Price: $0.39
43 215-75 HOLD DOWN SPRING Price: $7.60
44 99-5652 BRAKE ASM & LEVER This part replaces 3-6944. Price: $179.21
45 215-74 DISCONTINUED Price: Call Us
46 215-76 DISCONTINUED Price: Call Us
47 232-24 STEM-VALVE Price: $4.03
487422 Wheel Assembly, 24 x 12-12 4-Ply (5-Hole) - (Black) Price: Call Us 487422
