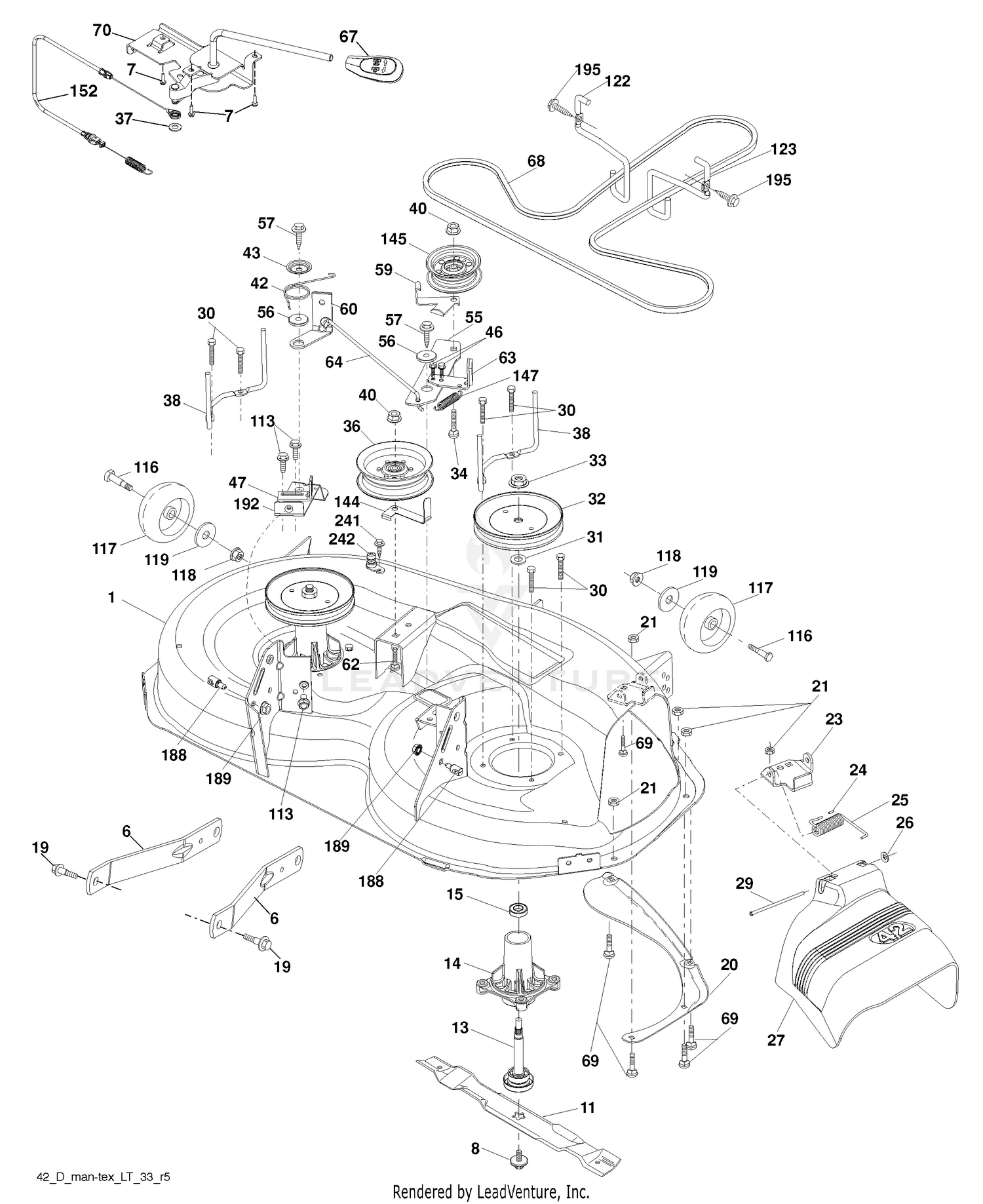

| Ref | Part Number | Description |
|---|
| 1 |
196495 |
Mower Housing Price: Call Us |
| 6 |
195186 |
Arm Suspension Price: Call Us |
| 7 |
416358 |
Screw #10 x 0.750 BOS Thread Price: Call Us |
| 8 |
139775 |
Blade, 42" Mulching Premium (For better wear when mulching) Price: Call Us |
| 8 |
193003 |
Bolt/Washer Asm 7/16-20 unf Price: Call Us |
| 11 |
134149 |
Blade, 42" Mulching Std (For bagging or discharge) Price: Call Us |
| 11 |
138971 |
Blade, 42" Hi-Lift Price: Call Us |
| 13 |
192872 |
Shaft Assembly, Mandrel (For mulching mowers only) Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 19 |
196539 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 23 |
192557 |
Bracket, Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
197026 |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
193108X428 |
Shield, Deflector Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol Rolling Wsh Hd Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
197473 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 36 |
197379 |
Pulley, Idler 4.50 RAW Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 38 |
199189 |
Keeper Belt LH Mandrel Price: Call Us |
| 40 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 42 |
198410 |
Spring Torsion Brake Price: Call Us |
| 43 |
197256 |
Spring Torsion Retainer Price: Call Us |
| 46 |
137729 |
Screw Thd Roll 1/4-20 x 5/8 Price: Call Us |
| 47 |
197250 |
Bracket Clutch Cable Price: Call Us |
| 55 |
197249 |
Arm, Idler Price: Call Us |
| 56 |
199092 |
Spacer, Retainer Price: Call Us |
| 57 |
17000616 |
Screw Hexwsh Thd 3/8-16 x 1 Price: Call Us |
| 59 |
141043 |
Guard, Tuv Idler (94) Price: Call Us |
| 60 |
197261 |
Arm Brake Mower Price: Call Us |
| 62 |
72110616 |
Bolt Rdhd Sqnk 3/8-16 unc x 2 Price: Call Us |
| 63 |
199477 |
Arm Brake Mower Price: Call Us |
| 64 |
199790 |
Linkage Brake Price: Call Us |
| 67 |
198398X428 |
Handle, Clutch Cable Price: Call Us |
| 68 |
197253 |
V-Belt Price: Call Us |
| 69 |
72140505 |
Bolt Rdhd Sqnk 5/16-18 x 5/8 Price: Call Us |
| 70 |
198332 |
Clutch Asm. Manual Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt Price: Call Us |
| 117 |
188606 |
Wheel Gauge Price: Call Us |
| 118 |
73930600 |
Nut Lock 3/8-16 unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8-7/8 x 14 Ga. Price: Call Us |
| 122 |
197258 |
Keeper Belt Eng. LH Price: Call Us |
| 123 |
197259 |
Keeper Belt Eng. RH Price: Call Us |
| 144 |
199204 |
Keeper Belt Price: Call Us |
| 145 |
193197 |
Pulley Idler Primary Price: Call Us |
| 147 |
401971 |
Spring Return Price: Call Us |
| 152 |
408714 |
Cable Clutch Manual w/Spr. Price: Call Us |
| 188 |
195161 |
Stud Fastener Price: Call Us |
| 189 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 192 |
197260 |
Bracket Brake Stand LH Price: Call Us |
| 195 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 241 |
152927 |
Screw Price: Call Us |
| 242 |
415598 |
Washout Port Price: Call Us |
