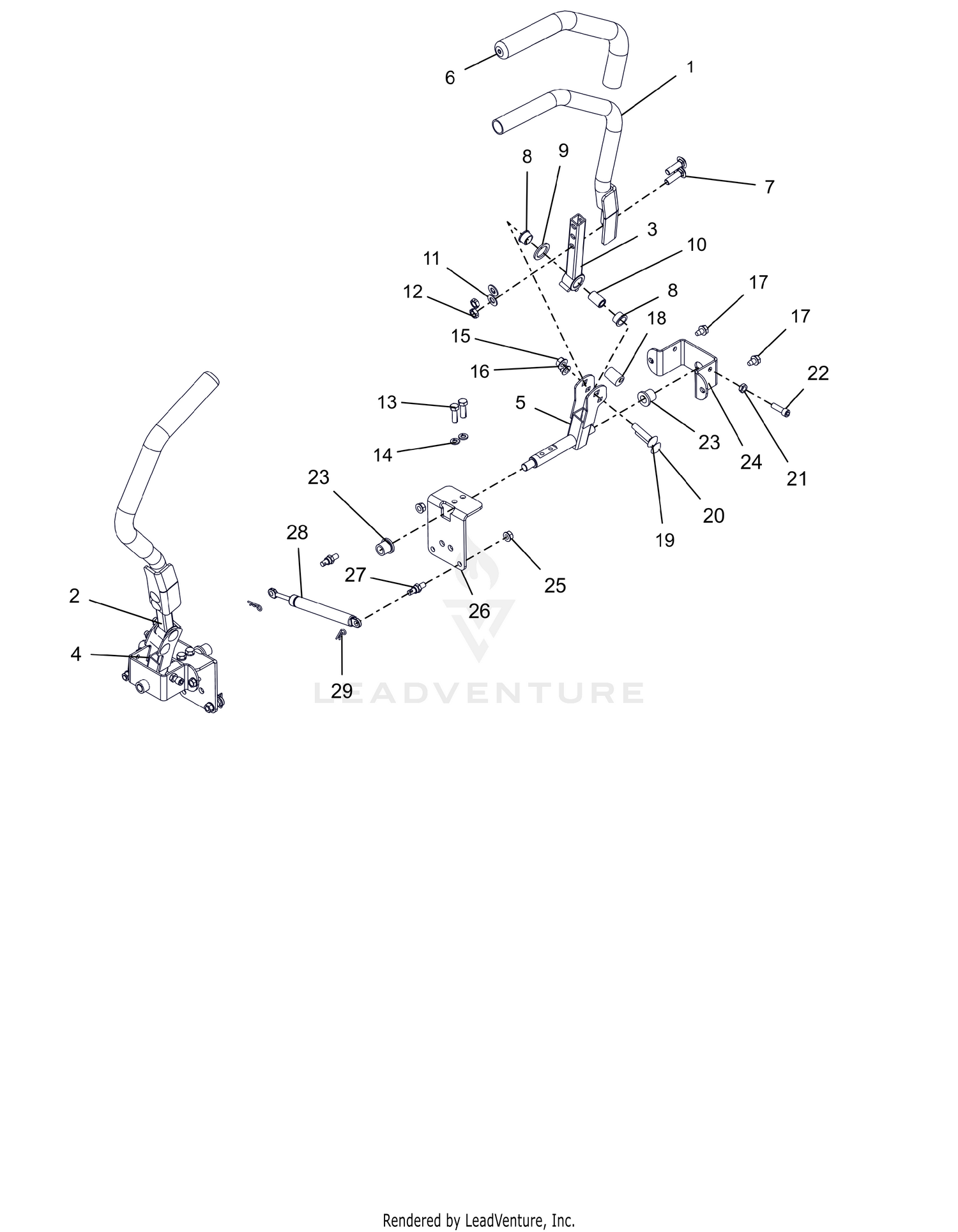

| Ref | Part Number | Description |
|---|
| 1 |
04796151 |
WLDMT, STEERING HANDLE LH Price: $40.95 |
| 2 |
04796051 |
WLDMT, STEERING HANDLE RH Price: $50.95 |
| 3 |
04959251 |
WLDMT, UPPER CONTROL ARM Price: $71.45 |
| 4 |
04959051 |
WLDMT,STEERING ARM LOWER RIGHT Price: $100.95 |
| 5 |
04959151 |
WLDMT,STEERING ARM LOWER LEFT Price: $112.45 |
| 6 |
04257400 |
GRIP, HANDLEBAR 15" FOAM Price: $14.45 |
| 7 |
06200236 |
BLT,RHSSN .38-16X1.25 G5 ZCC This part replaces 06200220. Price: $2.45 |
| 8 |
05501017 |
BSHG-FLG, .625X.75X.450X.875 Price: $7.45 |
| 9 |
04832600 |
WASHER, FRICTION .875X1.25X.10 Price: $5.45 |
| 10 |
04193500 |
SPACER, .375X.625X.970 (PM) Price: $0.95 |
| 11 |
06401013 |
WSHR,FLT .406X.812X.065 ZCC Price: $0.95 |
| 12 |
06500914 |
NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95 |
| 13 |
05901802 |
BLT, HEX .31-18X1.00 G8 ZCC Price: $1.45 |
| 14 |
06300119 |
WSHR,LK-REG .312X.078 ZCC Price: $0.95 |
| 15 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 16 |
06500809 |
NUT,LK-NYL-FLG .31-18 G5ZC120 Price: $1.45 |
| 17 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC Price: $1.45 |
| 18 |
00372300 |
BSHG,ECCEN .328X.750X1.01 PM Price: $10.45 |
| 19 |
06200221 |
BLT,RHSSN .38-16X1.75 G5 BFP Price: $5.45 |
| 20 |
06200222 |
BLT,RHSSN .31-18X1.75 G5 BFP Price: $2.45 |
| 21 |
06500909 |
NUT-JAM .312-18 G2 ZCC Price: $0.95 |
| 22 |
05901733 |
SCR, SKH .312-18X1.00 G8 SS Price: $2.95 |
| 23 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 24 |
04990951 |
BRKT, STEERING Price: $30.95 |
| 25 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC Price: $0.95 |
| 26 |
04764151 |
BRKT, STEEERING Price: $30.95 |
| 27 |
05171400 |
COUPLER, DAMPER MOUNT Price: $6.45 |
| 28 |
05160400 |
DAMPER, STRAIGHT MOUNT Price: $35.45 |
