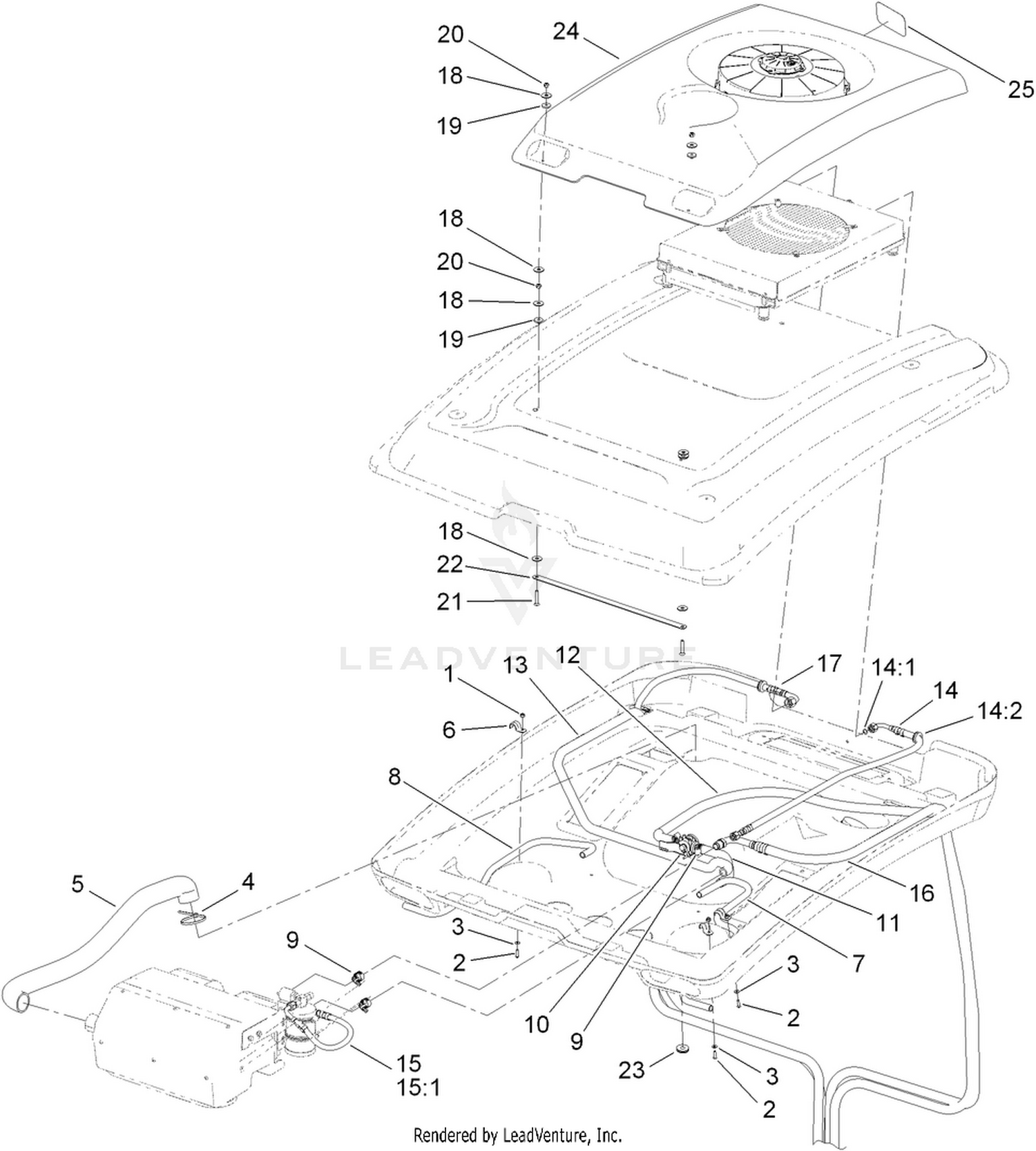

| Ref | Part Number | Description |
|---|
| 1 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 2 |
104-2408 |
SCREW-HSBH Price: $2.19 |
| 3 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 4 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 5 |
115-8835 |
HOSE-AIR DUCT Price: $84.83 |
| 6 |
119-4517 |
CLAMP-HOSE Price: $5.63 |
| 7 |
120-0376 |
HOSE-DRAIN, LH Price: $38.36 |
| 8 |
120-0377 |
HOSE-DRAIN, RH Price: $44.73 |
| 9 |
2412-141 |
CLAMP-DRIVE, WORM Price: $2.40 |
| 10 |
115-8840 |
VALVE-HEATER Price: $224.24 |
| 11 |
115-8844 |
HOSE Price: $37.24 |
| 12 |
120-0375 |
HOSE (THERMOSTAT TO VALVE) Price: $243.11 |
| 13 |
120-0346 |
HOSE ASM Price: $132.58 |
| 14 |
115-8837 |
HOSE ASM Price: $834.15 |
| 15 |
115-8838 |
HOSE ASM Price: $516.74 |
| 16 |
120-0384 |
HOSE ASM Price: $914.19 |
| 17 |
120-0385 |
HOSE ASM Price: $949.75 |
| 18 |
115-5581 |
WASHER-FLAT Price: $7.33 |
| 19 |
115-5570 |
BUSHING-THIN Price: $5.22 |
| 20 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 21 |
3229-4 |
SCREW-CARR Price: $0.34 |
| 22 |
119-4505 |
STRAP-MOUNTING Price: $14.38 |
| 23 |
117-2782 |
GROMMET Price: $4.26 |
| 24 |
119-4503 |
COVER-CONDENSER This part replaces 115-5552. Price: $1,483.25 |
