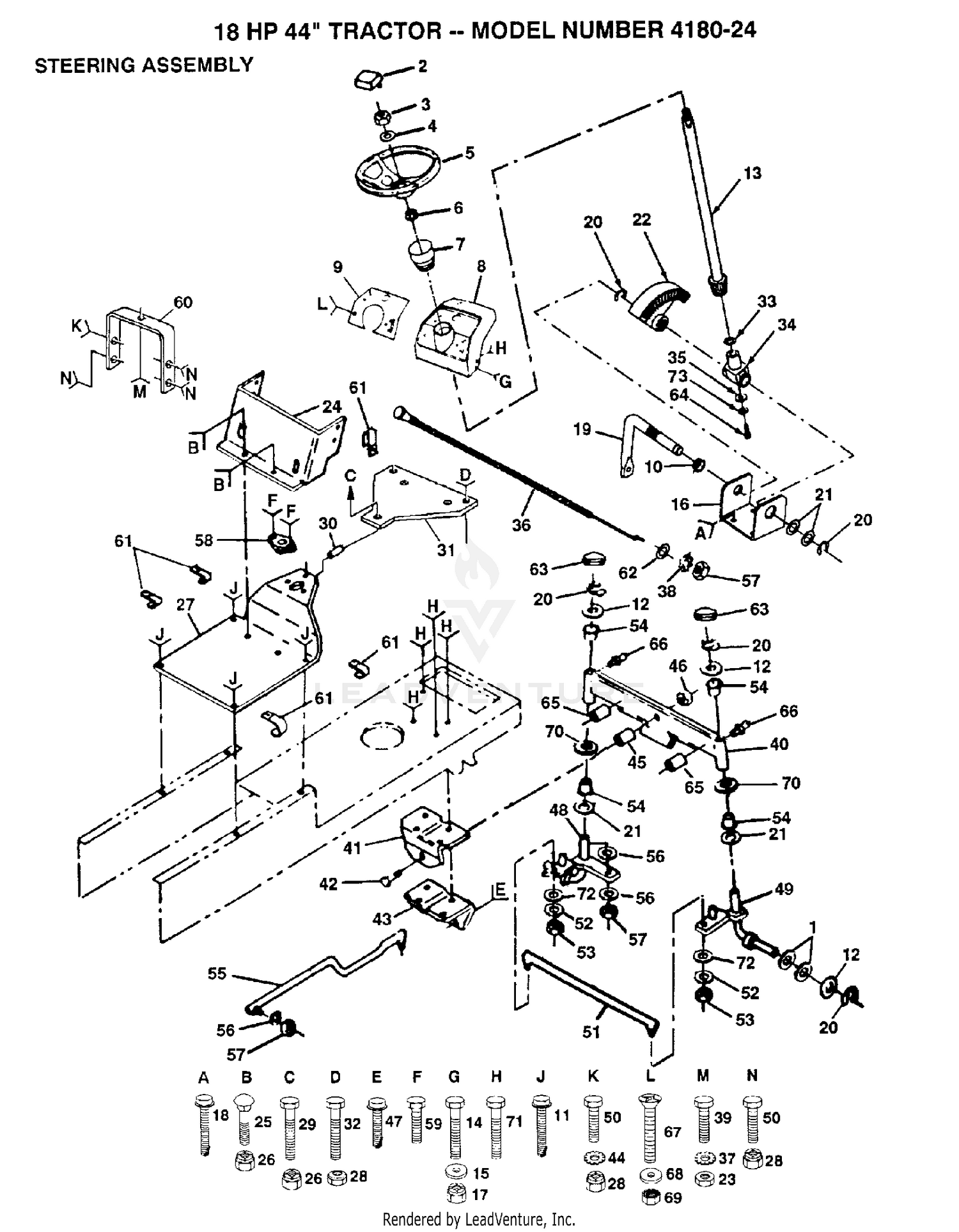

| Ref | Part Number | Description |
|---|
| 1 |
47_123_08 |
Tube-Oil Fill Price: Call Us |
| 1 |
532121749 |
WASHER Price: $1.99 |
| 2 |
532150546 |
STEERING WHEEL KIT This part replaces 532126805. Price: $59.99 |
| 3 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 4 |
532100712 |
Washer 17/32 x 2-1/4 x .160 (AYP part number) Price: $2.42 |
| 5 |
532150546 |
STEERING WHEEL KIT This part replaces 532121472. Price: $59.99 |
| 6 |
532100711 |
Adapter Wheel Strg 758/ 753id (AYP part number) Price: $11.99 |
| 7 |
532110709 |
SUPPORT Price: $22.99 |
| 8 |
532140398 |
Dash Black Yard Pro (AYP part number) This part replaces 532124252. Price: $129.99 |
| 9 |
TBD |
Price: Call Us |
| 10 |
532109816 |
NYLINER T (7283A) Price: $2.99 |
| 11 |
817490608 |
SCREW LT Price: $3.99 |
| 12 |
532121748 |
WASHER Price: $1.99 |
| 13 |
532156544 |
STEERING SHAFT This part replaces 532124043. Price: $64.99 |
| 14 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 15 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 16 |
532124036 |
BRKT,STEERING Price: $4.99 |
| 17 |
873680600 |
LOCKNUT Price: $1.99 |
| 18 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 19 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532124033. Price: $27.99 |
| 20 |
812000029 |
RING CLIP Price: $1.99 |
| 21 |
532006266 |
WASHER THRUST Price: $5.99 |
| 22 |
532136874 |
Gear Sector (AYP part number) This part replaces 532124034. Price: $49.99 |
| 23 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 24 |
532104805 |
Dash Assembly, Lower (AYP part number) Price: $34.49 |
| 25 |
874180512 |
SCREW Price: $3.99 |
| 26 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 27 |
532123783 |
Price: $25.85 |
| 28 |
873680600 |
LOCKNUT Price: $1.99 |
| 29 |
874760532 |
BOLT Price: $2.99 |
| 30 |
532121236 |
Spacer Split 59/ x 1.25 Blk/zin (AYP part number) Price: $2.38 |
| 31 |
532106965 |
Plate, Support, Battery (AYP part number) Price: $10.37 |
| 32 |
874760612 |
BOLT Price: $1.99 |
| 33 |
532057079 |
THRUST WASHER Price: $2.99 |
| 34 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $6.99 |
| 35 |
819091016 |
WASHER This part replaces 532126684. Price: $2.99 |
| 36 |
532132781 |
Control, Choke (AYP part number) This part replaces 532122926. Price: $19.99 |
| 37 |
810040400 |
LOCKWASHER This part replaces 811050400. Price: $3.99 |
| 38 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 39 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 40 |
532108075 |
Axle, Assembly, Front (AYP part number) Price: $62.55 |
| 41 |
532105663 |
Support, Saddle, Rear (AYP part number) Price: $8.25 |
| 42 |
874761060 |
BOLT LT Price: $3.99 |
| 43 |
532105664 |
SUP-SADDLE FRT LT Price: $9.99 |
| 44 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 45 |
532110438 |
Spacer, Bearing, Axle, Front (AYP part number) Price: $5.99 |
| 46 |
583612401 |
LOCKNUT M (1 2) (5 2) This part replaces 873601000. Price: $2.99 |
| 47 |
817490508 |
SCREW LT Price: $3.99 |
| 48 |
532156483 |
SPINDLE ASM LH This part replaces 532130460. Price: $14.99 |
| 49 |
532130459 |
Spindle, Assembly, R.H. Price: $29.86 |
| 50 |
874760612 |
BOLT Price: $1.99 |
| 51 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN This part replaces 532130467. Price: $59.99 |
| 52 |
810040500 |
LOCKWASHER Price: $2.99 |
| 53 |
873610500 |
This part replaces 873810500. Price: Call Us |
| 54 |
532003366 |
BEARING.STEERING.COLUMN Price: $1.99 |
| 55 |
532130468 |
DRAG LINK Price: $49.99 |
| 56 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 57 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 58 |
532155108 |
KIT/BUSH This part replaces 532001554. Price: $3.99 |
| 59 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 60 |
532124130 |
Support, Assembly, Dash (AYP part number) Price: $12.22 |
| 61 |
532002751 |
CLIP T Price: $2.42 |
| 62 |
819131316 |
WASHER Price: $2.99 |
| 63 |
532121232 |
CAP.SPINDLE.BLACK Price: $1.99 |
| 64 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871070410. Price: $2.99 |
| 65 |
532132624 |
Pin, Axle 5/8 x 1.55/1.54 LG. (AYP part number) Price: $2.42 |
| 66 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532006855. Price: $3.99 |
| 67 |
874180512 |
SCREW Price: $3.99 |
| 68 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 69 |
873310500 |
NUT Price: $3.99 |
| 70 |
819272016 |
WASHER Price: $2.99 |
| 71 |
532122819 |
Thd. Form Washer Hd. Hex Screw (AYP part number) Price: $2.38 |
| 72 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
