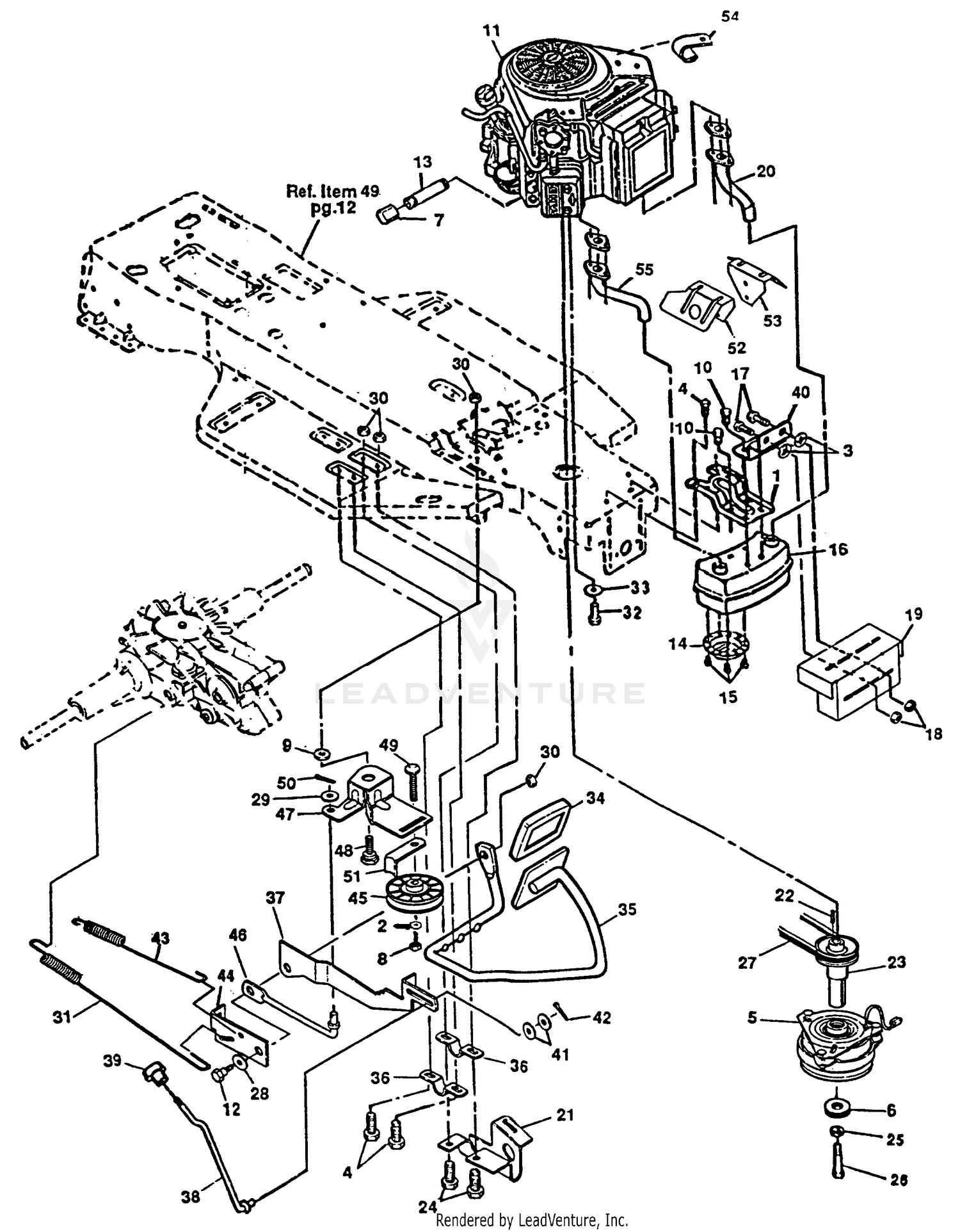

| Ref | Part Number | Description |
|---|
| 1 |
306577 |
Muffler Bracket Price: Call Us |
| 1 |
32120-8 |
RING-SNAP Price: $1.76 |
| 2 |
120382 |
Washer, Reg. Split Lock Price: Call Us |
| 2 |
72-3750 |
BEARING-ROLLER Price: $180.02 |
| 3 |
309436 |
Pushnut, 5/16 Bolt Retainer Price: Call Us |
| 3 |
323-56 |
SCREW-HH Price: $2.18 |
| 4 |
35497 |
Screw, 5/16-18 x 1/2 Price: Call Us |
| 4 |
67-9080 |
HOUSING-MOTOR Price: $1,756.34 |
| 5 |
308950 |
Electric Clutch Price: Call Us |
| 5 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 6 |
25-2650 |
PLUG-VALVE, CHECK Price: $89.01 |
| 6 |
302879 |
Bearing, Sleeve Sector Gear Price: Call Us |
| 7 |
237-86 |
O-RING Price: $5.47 |
| 7 |
47828 |
Pipe Cap Price: Call Us |
| 8 |
120377 |
Nut, 3/8-16 Thd. Price: Call Us |
| 8 |
25-2640 |
SPRING-VALVE Price: $4.22 |
| 9 |
25-2490 |
BALL Price: $14.47 |
| 9 |
45602 |
Flatwasher, .333 x .87 x .119 Price: Call Us |
| 10 |
67-9100 |
GASKET Price: $15.83 |
| 10 |
995338 |
Screw, 1/4-20 x 5/9 In. Price: Call Us |
| 11 |
99-5689 |
CHECK VALVE KIT This part replaces 25-3180. Price: $83.29 |
| 12 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 12 |
310087 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 13 |
237-22 |
O-RING Price: $2.43 |
| 13 |
307174 |
Nipple, 3/8-18 Price: Call Us |
| 14 |
25-2630 |
RING-BACK UP Price: $3.55 |
| 14 |
56472 |
Deflector Side Out Price: Call Us |
| 15 |
35287 |
Screw, #8-32 x .3/8 Price: Call Us |
| 15 |
88-8220 |
VALVE-BY PASS Price: $189.03 |
| 16 |
25-2610 |
SPRING-VALVE Price: $29.42 |
| 16 |
305553 |
Muffler Price: Call Us |
| 17 |
126211 |
Bolt, 5/16-18x5/8 Price: Call Us |
| 17 |
25-2410 |
VALVE ASM Price: $514.54 |
| 18 |
55273 |
Nut, 5/16-18 Price: Call Us |
| 18 |
76-1900 |
O-RING Price: $3.64 |
| 19 |
308144 |
Heat Shield Price: Call Us |
| 19 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 20 |
119-2895 |
SPLINED SHAFT KIT This part replaces 67-8020. Price: $1,116.09 |
| 20 |
305555 |
Tube, Muffler Exhaust, L.H. Price: Call Us |
| 21 |
308340 |
Bracket, Front Hanger Price: Call Us |
| 21 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 22 |
117-2700 |
HOUSING KIT This part replaces 54-7890. Price: $2,321.28 |
| 22 |
305562 |
Key, Square Price: Call Us |
| 23 |
252-82 |
BEARING-NEEDLE Price: $51.31 |
| 23 |
309388 |
Engine Pulley Assembly Price: Call Us |
| 24 |
122007 |
Screw, 5/16-18 x 3/4 In. Price: Call Us |
| 24 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 25 |
120383 |
Lockwasher, .459 x .78 x .12 Price: Call Us |
| 25 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 26 |
215649 |
Screw, 7/16-20 x 51/2 In. Price: Call Us |
| 26 |
25-2580 |
SHAFT-TRUNNION Price: $215.33 |
| 27 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 27 |
910275 |
Hydro Traction Belt Price: Call Us |
| 28 |
25-2460 |
PLUG-HH Price: $37.38 |
| 28 |
30289 |
Wave Washer Price: Call Us |
| 29 |
120394 |
Flatwasher, .406 x .81 x .06 Price: Call Us |
| 29 |
25-2470 |
PACK-SHIM Price: $47.36 |
| 30 |
1498 |
Nut, 5/16-18 Price: Call Us |
| 30 |
25-2570 |
SPRING-VALVE Price: $12.67 |
| 31 |
309935 |
Spring, Hydro Brake Price: Call Us |
| 31 |
83-7260 |
CONE-RELIEF, CHARGE Price: $50.57 |
| 32 |
353-551 |
PLUG-HH Price: $18.48 |
| 32 |
50947 |
Screw, 7/16-20 x 51/2 In. Price: Call Us |
| 33 |
138489 |
External Lockwasher Price: Call Us |
| 33 |
237-80 |
O-RING Price: $6.10 |
| 34 |
25-2550 |
DISCONTINUED-SEE PB#945 Price: Call Us |
| 34 |
304490 |
Clutch Brake Pad Price: Call Us |
| 35 |
310258 |
Clutch Brake Weld Assy. Price: Call Us |
| 35 |
67-8050 |
BEARING-NEEDLE Price: $54.10 |
| 36 |
313271 |
Clutch Brake Arm Bracket Price: Call Us |
| 36 |
93-4133 |
SEAL-LIP This part replaces 67-8060. Price: $37.43 |
| 37 |
310260 |
Park Brake Lever Price: Call Us |
| 37 |
322-4 |
SCREW-HH Price: $0.35 |
| 38 |
25-2680 |
GEROTOR ASM Price: $651.02 |
| 38 |
304217 |
Parking Brake Rod Price: Call Us |
| 39 |
25-2530 |
PIN-STRAIGHT, HEADLESS Price: $21.24 |
| 39 |
304367 |
Knob, Parking Brake Price: Call Us |
| 40 |
25-3190 |
DISCONTINUED-SEE PB#945 Price: Call Us |
| 40 |
9796 |
Transaxle Brkt. Price: Call Us |
| 41 |
120385 |
Flatwasher, .250 x .56 x .04 Price: Call Us |
| 41 |
237-95 |
O-RING Price: $11.97 |
| 42 |
121223 |
Cotter Pin Price: Call Us |
| 42 |
67-9090 |
PLUG Price: $41.68 |
| 43 |
25-2500 |
SHAFT-TRUNNION Price: $191.66 |
| 43 |
313660 |
Electric Clutch Spring Price: Call Us |
| 44 |
25-2460 |
PLUG-HH Price: $37.38 |
| 44 |
310259 |
Bracket-Brake, Neutral Price: Call Us |
| 45 |
303031 |
Idler Pulley Price: Call Us |
| 45 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 46 |
251-8 |
BEARING-BALL Price: $30.06 |
| 46 |
314738 |
Clutch Rod Price: Call Us |
| 47 |
314786 |
Idler Arm Price: Call Us |
| 47 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 48 |
25-2450 |
PLATE-SWASH, VARIABLE Price: $896.81 |
| 48 |
310269 |
Bolt, Shoulder, 5/16-18 Price: Call Us |
| 49 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 49 |
45892 |
Screw, 3/8-16 x 1-1/2 In. Price: Call Us |
| 50 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 50 |
36368 |
Cotter Pin Price: Call Us |
| 51 |
25-2440 |
PLATE-VALVE, PUMP Price: $491.90 |
| 51 |
39659 |
Retainer Belt Price: Call Us |
| 52 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 52 |
313044 |
Air Deflector Price: Call Us |
| 53 |
110-6341 |
BEARING-ROLLER This part replaces 46-8400. Price: $41.33 |
| 53 |
313043 |
Air Deflector Price: Call Us |
| 54 |
57569 |
Wire Retainer Price: Call Us |
| 54 |
93-4132 |
O-RING This part replaces 62-4290. Price: $6.84 |
| 55 |
92-8918 |
SECTION-CENTER Price: $1,338.76 |
| 57 |
25-2390 |
PLATE-VALVE, MOTOR Price: $832.97 |
| 58 |
46-8410 |
SHAFT-MOTOR Price: $968.23 |
| 59 |
25-2400 |
GASKET Price: $19.26 |
| 60 |
93-0312 |
WASHER-HARDENED Price: $0.78 |
| 61 |
75-0170 |
PLUG-THREAD, STRAIGHT This part replaces 92-8776. Price: $18.20 |
| 62 |
92-8777 |
O-RING Price: $3.02 |
