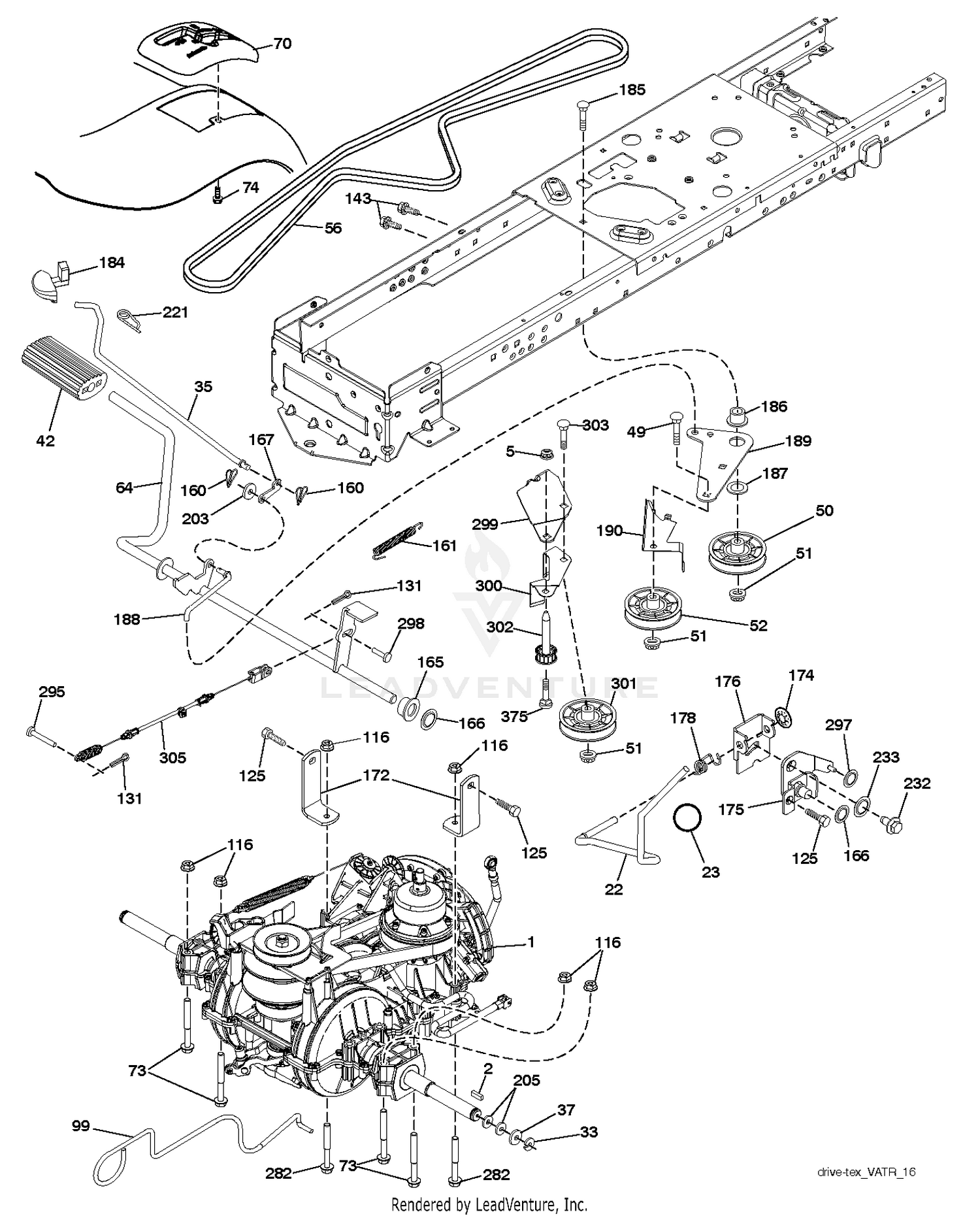

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 2 |
532123583 |
SQUARE KEY Price: $2.99 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
873680600 |
LOCKNUT Price: $1.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 15 |
112-1718-01 |
BEDBAR Price: $300.88 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 17 |
137-6091 |
BEDKNIFE-EDGEMAX This part replaces 121-3165. Price: $172.72 |
| 22 |
532421063 |
ROD.SHIFT.LT.TEX.VARIATOR Price: $29.99 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $8.99 |
| 24 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 25 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 26 |
69-8980 |
WASHER Price: $0.58 |
| 27 |
120-9941 |
BOLT-BEDBAR Price: $13.66 |
| 28 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 29 |
127-4284 |
WASHER-SPECIAL Price: $5.88 |
| 30 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 31 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 32 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 34 |
137-8407 |
ES REEL+,5IN FWY(18)11 BLD LD(FSR) This part replaces 133-0112. Price: $767.86 |
| 35 |
532197722 |
ROD.BRAKE.PARKING.LT.T Price: $8.99 |
| 37 |
130-0064 |
INSERT-THREADED, 5 INCH (LH) Price: $42.48 |
| 37 |
532121749 |
WASHER Price: $1.99 |
| 38 |
130-0063 |
INSERT-THREADED, 5 INCH (RH) Price: $42.48 |
| 39 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532197253 |
BELT.DRIVE.MOWER.TEX.42" Price: $27.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $22.99 |
| 70 |
532440323 |
CONSOLE.AUTO.VARIATOR.BLACK Price: $14.99 |
| 73 |
874490544 |
BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 99 |
532427340 |
ROD.BYPASS.VARIATOR Price: $8.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 131 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) This part replaces 876020312. Price: $1.99 |
| 143 |
817490508 |
SCREW LT Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 165 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 172 |
583974201 |
STRAP.TORQUE.VARIATOR Price: $1.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532408539 |
SHAFT.ASM.SHFT.T2.TLT Price: $14.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $4.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $2.99 |
| 184 |
532441504 |
HANDLE.PARKING.BRAKE.LTTEX.667 Price: $5.99 |
| 185 |
872110622 |
BOLT Price: $0.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 203 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 232 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 Price: $2.99 |
| 233 |
532405296 |
WASHER SERRATED Price: $3.99 |
| 282 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $2.99 |
| 295 |
532420306 |
PIN.CLEVIS.183 Price: $2.99 |
| 297 |
532415694 |
PIN.CLEVIS.CBL.BRK.VARIATOR.TX Price: $2.99 |
| 298 |
532415694 |
PIN.CLEVIS.CBL.BRK.VARIATOR.TX Price: $2.99 |
| 299 |
532415683 |
BRACKET.MOUNT.IDLERS Price: $6.99 |
| 300 |
532415680 |
PULLEY.IDLER.V-GROOVE Price: $17.99 |
| 301 |
532415680 |
PULLEY.IDLER.V-GROOVE Price: $17.99 |
| 302 |
581583601 |
KIT.IDLER.2.INCH This part replaces 532415666. Price: $17.99 |
| 303 |
872110618 |
BOLT CARRIAGE Price: $2.99 |
| 305 |
532415692 |
CABLE.BRAKE.VARIATOR.TEX Price: $27.99 |
