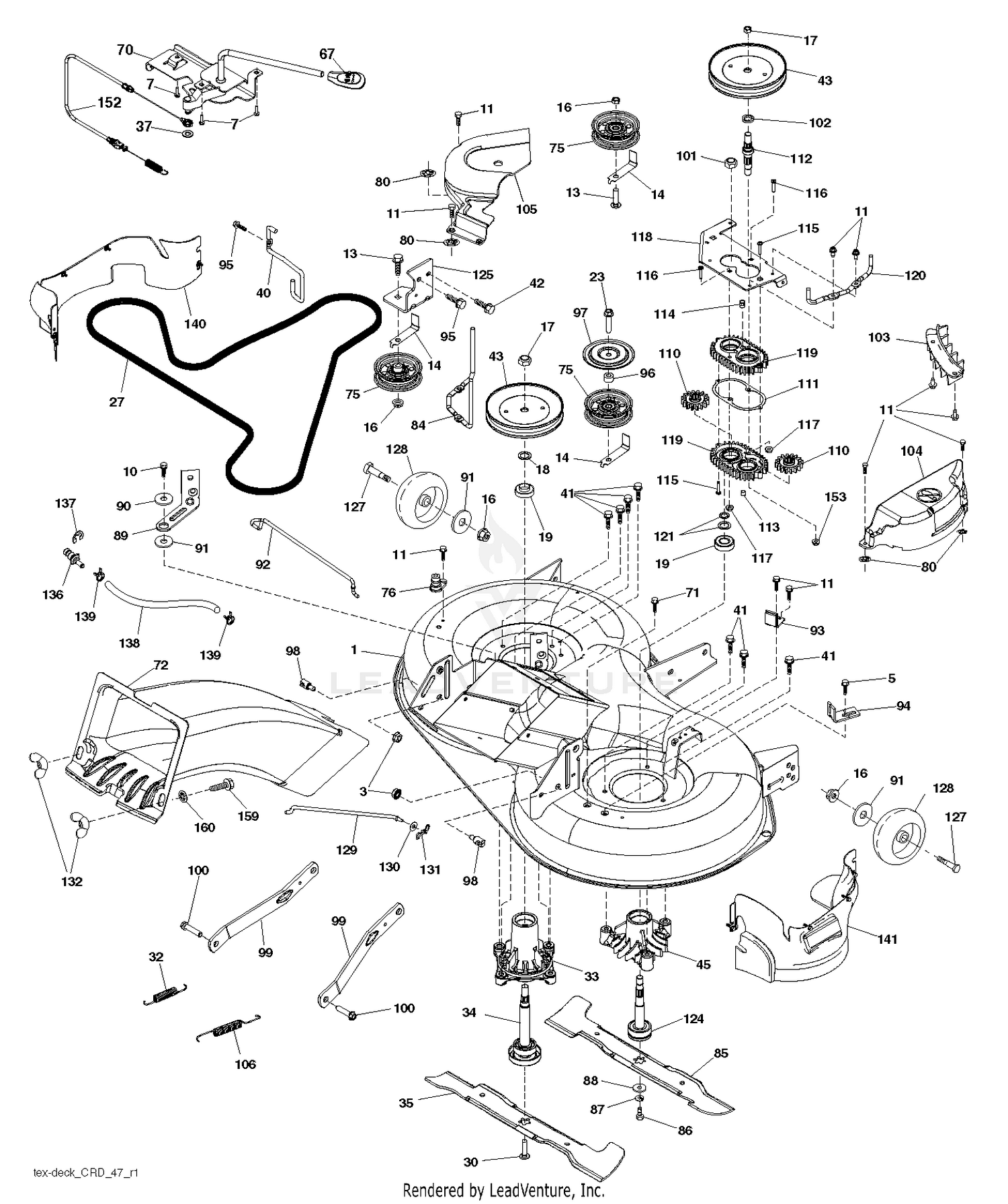

| Ref | Part Number | Description |
|---|
| 1 |
547664401 |
KIT.SVC.DECK.WLD.97.TEX.428 This part replaces 532440971. Price: $449.99 |
| 3 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 10 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 27 |
583544901 |
RP BELT.DRIVE.MWR.MECHN.97CRD This part replaces 532439726. Price: $84.99 |
| 30 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 32 |
532401872 |
SPRING RETURN Price: $4.99 |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 587256501. Price: $49.99 |
| 35 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $49.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 40 |
531169501 |
SERVICE KIT BELT KEEPER This part replaces 532197258. Price: $4.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 42 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 43 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 45 |
532137152 |
HOUSING.MANDREL.44/46" VENT Price: $34.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $32.99 |
| 71 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 72 |
582035601 |
CHUTE.TEX.CRD.GEN I.97 UPPER Price: $69.99 |
| 75 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 80 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 84 |
589676103 |
KEEPER 42 MANDREL BELT FOR 6.2 This part replaces 532432520. Price: $6.99 |
| 85 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $49.99 |
| 86 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 87 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 88 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 89 |
529846801 |
SERVICE.KIT ARM.BRAKE.97.LH AR This part replaces 532438124. Price: $12.99 |
| 90 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 91 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 92 |
583514701 |
ROD.BRAKE.97.CRD This part replaces 532436993. Price: $8.99 |
| 93 |
583527101 |
ARM.BRAKE.97.RH This part replaces 532438125. Price: $14.99 |
| 94 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 95 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 96 |
583261101 |
SPACER.NORAM.CRD This part replaces 532400271. Price: $4.99 |
| 97 |
583119101 |
SHIELD.IDLER.MOWER.CRD. This part replaces 532182061. Price: $4.99 |
| 98 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 99 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 100 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 101 |
596040601 |
Hardware This part replaces 873680900. Price: $3.99 |
| 102 |
532402511 |
SPACER BEARING Price: $3.99 |
| 103 |
583514601 |
GUARD.FRONT.VENT.97.CRD This part replaces 532436992. Price: $6.99 |
| 105 |
583534001 |
LH.MANDREL.COVER.97.TEX.CRD This part replaces 532438744. Price: $24.99 |
| 106 |
532193216 |
SPRING.BRAKE.RETURN.38" Price: $4.99 |
| 110 |
587934801 |
CRD.SPUR.GEAR Price: $11.99 |
| 111 |
583514001 |
GASKET.GEARCASE.97.CRD (2 2) This part replaces 532436979. Price: $4.99 |
| 112 |
583571601 |
SHAFT.CRD.GEARCASE.ADAPTER This part replaces 532443852. Price: $14.99 |
| 114 |
588170501 |
VENT.BREATHER.1/8 NPT Price: $8.99 |
| 115 |
583608901 |
SCREW.TORX#10-24X1 This part replaces 818031016. Price: $2.99 |
| 117 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 118 |
583514401 |
ARM.CLUTCHING.97.TEX This part replaces 532436989. Price: $17.99 |
| 119 |
583527601 |
GEAR.CASE.SUBASM. This part replaces 532438166. Price: $59.99 |
| 120 |
583514501 |
KEEPER.BELT.RH.MANDREL.97.CRD This part replaces 532436991. Price: $6.99 |
| 121 |
583514101 |
WASHER.687.I.D.X.1 OD.X.062THK This part replaces 532436985. Price: $2.99 |
| 124 |
583514201 |
MANDREL SHAFT NON/GREASEABLE This part replaces 532436986. Price: $37.99 |
| 125 |
583548001 |
IDLER.BRACKET.ASM. This part replaces 532440420. Price: $29.99 |
| 127 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 128 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 129 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 130 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 131 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 132 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 136 |
583544201 |
WASHOUT.PORT.REMOTE.HOOKUP This part replaces 532439639. Price: $3.99 |
| 137 |
812000029 |
RING CLIP Price: $3.99 |
| 138 |
587924812 |
HOSE 3/8ID, RUBBER 12" This part replaces 532440743. Price: $2.99 |
| 139 |
532440742 |
HOSE.3/8.CLAMP (2 2) Price: $2.99 |
| 140 |
598660801 |
GUARD.ASM.LH.CRD.FRENCH.97CM This part replaces 501579401. Price: $49.99 |
| 141 |
598660701 |
GUARD.ASM.RH.CRD.FR.97CM.SLOT This part replaces 501579301. Price: $59.99 |
| 152 |
583548401 |
CBLE.CLTCH.MANUAL.W/SPR.LT.CRD This part replaces 532440488. Price: $32.99 |
| 153 |
596040601 |
Hardware This part replaces 593274601. Price: $3.99 |
| 159 |
596987501 |
Bolts This part replaces 872140614. Price: $3.99 |
| 160 |
532168937 |
NUT Price: $2.99 |
