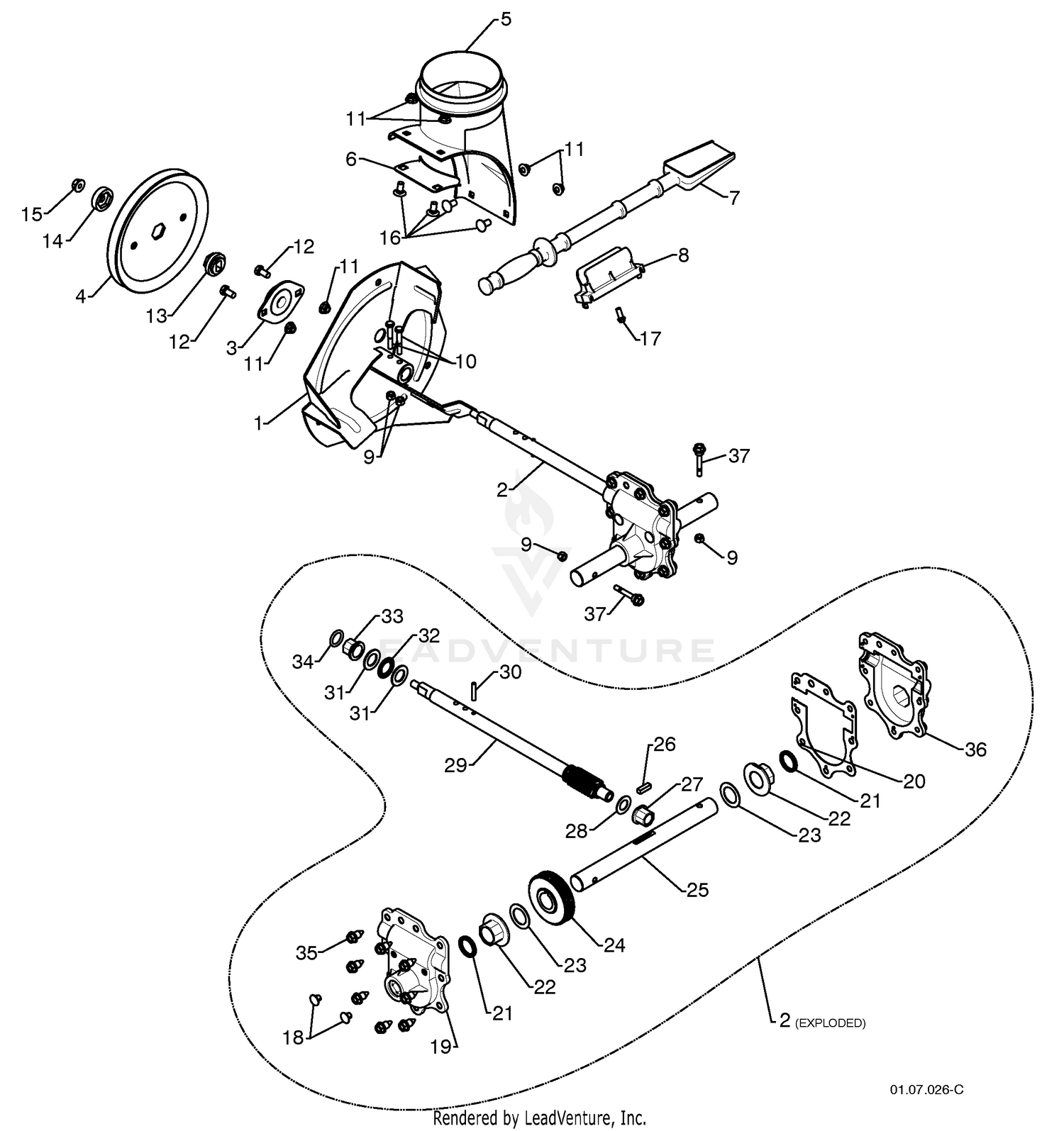

| Ref | Part Number | Description |
|---|
| 1 |
175321X479 |
IMPELLER Price: Call Us |
| 2 |
427148 |
GEARBOX ASSEMBLY Price: Call Us |
| 3 |
188909 |
BEARING Price: Call Us |
| 4 |
427146 |
IMPELLER PULLEY Price: Call Us |
| 5 |
175322 |
DISCHARGE BASE Price: Call Us |
| 6 |
178675X008 |
CORNER BRACKET Price: Call Us |
| 7 |
192199 |
CLEAN OUT TOOL Price: Call Us |
| 8 |
405400 |
TOOL CLIP Price: Call Us |
| 9 |
73800400 |
NUT 1/4-20 Price: Call Us |
| 010 |
112-7018 |
VALVE-INLET This part replaces 98-9494. Price: $41.87 |
| 10 |
74780426 |
SCREW 1/4-20 X .625 Price: Call Us |
| 11 |
427942 |
NUT 5/16-18 Price: Call Us |
| 12 |
163183 |
SCREW 5/16-18 X .625 Price: Call Us |
| 13 |
427145 |
IMPELLER HUB Price: Call Us |
| 14 |
427154 |
IMPELLER SLEEVE Price: Call Us |
| 15 |
73900600 |
NUT 3/8-16 Price: Call Us |
| 16 |
180355 |
CARRIAGE BOLT Price: Call Us |
| 17 |
194189 |
SCREW 13-16 X .625 Price: Call Us |
| 18 |
407760 |
PLUG Price: Call Us |
| 19 |
427302 |
GEARBOX COVER RH Price: Call Us |
| 020 |
120-2564 |
VALVE-EXHAUST This part replaces 98-9495. Price: $34.21 |
| 20 |
427345 |
GASKET Price: Call Us |
| 21 |
407770 |
SEAL Price: Call Us |
| 22 |
407762 |
BEARING Price: Call Us |
| 23 |
174697 |
THRUST WASHER 1.00 Price: Call Us |
| 24 |
407763 |
WORM GEAR Price: Call Us |
| 25 |
407764 |
AUGER SHAFT Price: Call Us |
| 26 |
189282 |
SQUARE KEY Price: Call Us |
| 27 |
407758 |
BEARING Price: Call Us |
| 28 |
174683 |
THRUST WASHER Price: Call Us |
| 29 |
427147 |
IMPELLER SHAFT Price: Call Us |
| 030 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 30 |
7836M |
ROLL PIN Price: Call Us |
| 31 |
174681 |
THRUST WASHER Price: Call Us |
| 32 |
174684 |
THRUST BEARING Price: Call Us |
| 33 |
407769 |
BEARING Price: Call Us |
| 34 |
407768 |
O-RING Price: Call Us |
| 35 |
407767 |
SCREW 5/16-18 X .750 Price: Call Us |
| 36 |
427317 |
GEARBOX COVER LH Price: Call Us |
| 040 |
107-9092 |
RETAINER-SPRING This part replaces 98-9498. Price: $2.58 |
| 050 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 060 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 070 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 080 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 090 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 160 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
