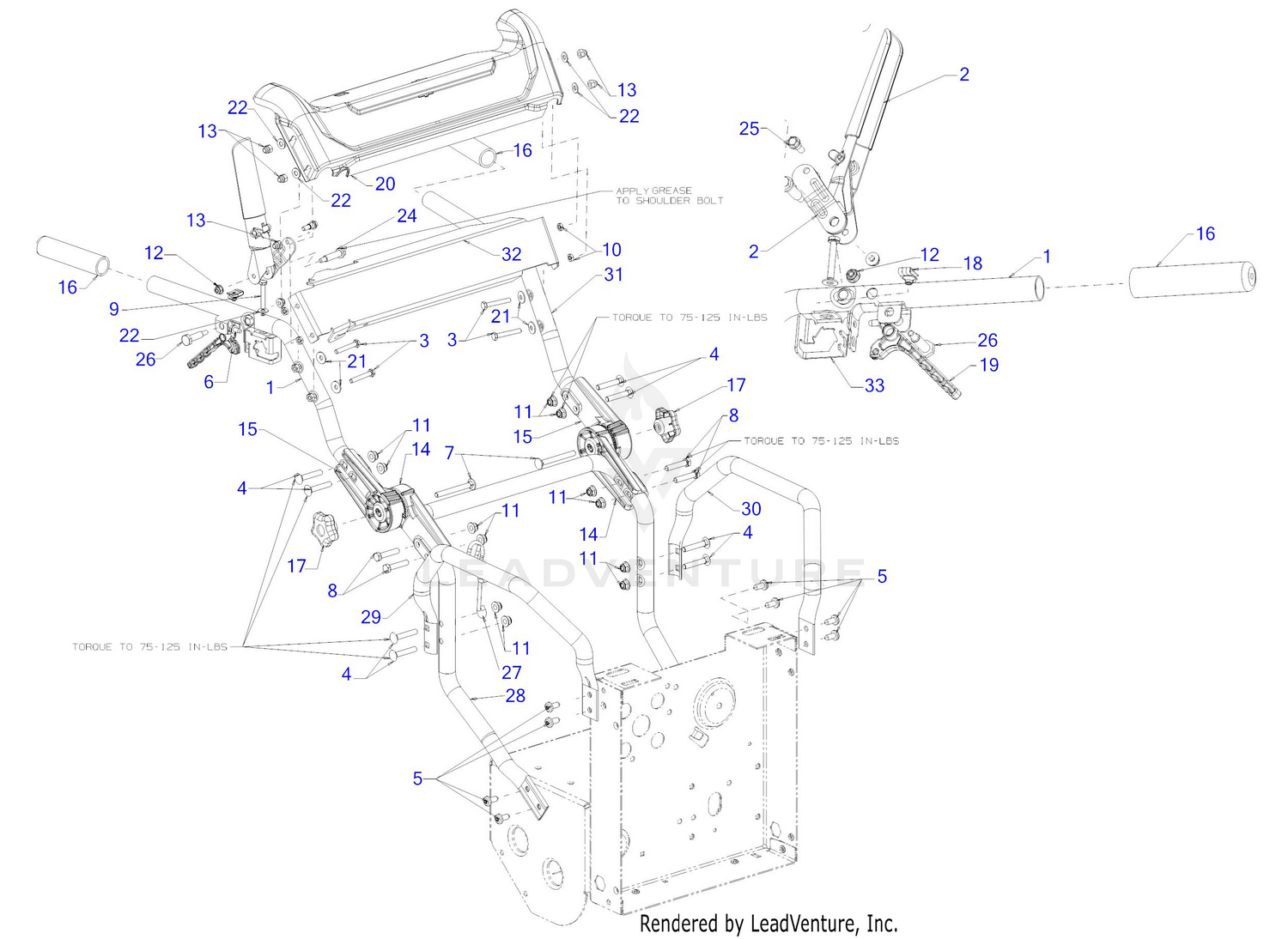

| Ref | Part Number | Description |
|---|
| 1 |
649-05060A-0638 |
UPPER HANDLE ASSEMBLY (RH)(MTD RED) Not Available Price: |
| 2 |
687-05222 |
LEVER LOCK ASSEMBLY Not Available Price: |
| 3 |
710-0136 |
HEX SCREW 1/4-20 x 1.75 Price: $3.66 |
| 4 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 5 |
710-05424 |
SCREW 5/16-18 x .750 Price: $2.94 |
| 6 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 7 |
710-06075 |
CARRIAGE BOLT 5/16-18 x 2.75 GR5 Price: $6.01 |
| 8 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 9 |
710-3288 |
BOLT 1/4-20X1.62 GR5 Price: $5.94 |
| 10 |
912-0298 |
HEX NUT Price: $5.38 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 13 |
712-0442 |
Cap Lock Nut, 1/4-20 This part replaces 912-0442. Price: $6.01 |
| 14 |
719-05180 |
LOWER ADJUST HANDLE Price: $30.86 |
| 15 |
719-05195A |
UPPER ADJUST HANDLE Not Available This part replaces 719-05195. Price: |
| 16 |
720-0274 |
GRIP Price: $9.99 |
| 17 |
720-05028 |
STAR KNOB- RED Price: $3.70 |
| 18 |
726-3054 |
U-CLIP NUT Price: $4.08 |
| 19 |
731-11124A |
DRIVE CABLE LEVER Price: $5.52 |
| 20 |
731-11125 |
HANDLE COVER Not Available Price: |
| 21 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 22 |
736-0463 |
Washer, Flat, .25 x .630 x .0515 This part replaces 936-0463. Price: $3.91 |
| 24 |
738-05041A |
SHOULDER BOLT .375X1.285:1/4-20 Price: $5.48 |
| 25 |
738-05149A |
SHOULDER SCREW .342X.335X1/4-20 Price: $5.48 |
| 26 |
938-0572 |
SHOULDER SCREW Price: $7.03 |
| 27 |
747-06516A |
ROPE GUIDE ROD Price: $5.52 |
| 28 |
749-05271A-0638 |
LOWER HANDLE (MTD RED) Not Available Price: |
| 29 |
749-05327-0638 |
CART FRAME TUBE (RH)(MTD RED) Not Available Price: |
| 30 |
749-05328-0638 |
CART FRAME TUBE (LH)(MTD RED) Not Available Price: |
| 31 |
749-05404-0638 |
UPPER HANDLE (LH) (MTD RED) Not Available Price: |
| 32 |
787-03375B-0637 |
HANDLE PANEL Price: $42.88 |
