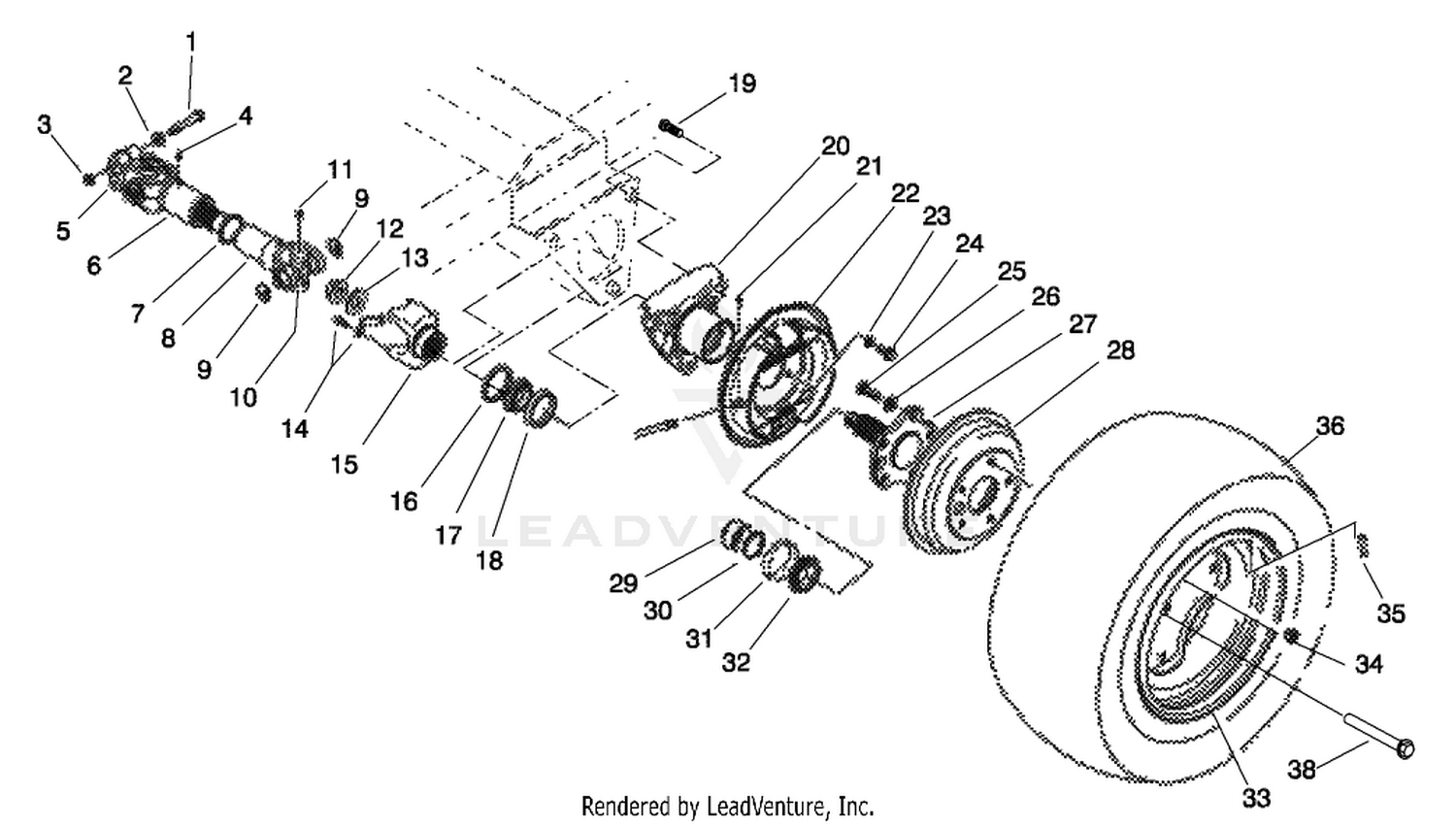

| Ref | Part Number | Description |
|---|
| 1 |
87-8700 |
SCREW Price: $5.50 |
| 2 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 3 |
32128-36 |
NUT-HF Price: $1.56 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 5 |
98-2968 |
YOKE KIT This part replaces 98-2940. Price: $369.57 |
| 6 |
92-4179 |
YOKE-TUBE, SHAFT AND SEAL Price: $861.24 |
| 7 |
92-4180 |
SEAL Price: $33.59 |
| 8 |
92-4182 |
YOKE-TELESCOPING Price: $594.80 |
| 9 |
92-4188 |
RING-SNAP Price: $2.10 |
| 10 |
92-4187 |
CROSS AND BEARING KIT Price: $171.13 |
| 11 |
302-58 |
FITTING-STRAIGHT Price: $0.81 |
| 12 |
105-1764 |
NUT-FLANGE, SIDE LOCK Price: $12.87 |
| 13 |
104-9216 |
WASHER-HARDENED Price: $5.60 |
| 14 |
92-4189 |
STRAP KIT Price: $102.10 |
| 15 |
92-4190 |
YOKE Price: $379.94 |
| 16 |
87-3590 |
SEAL-BEARING Price: $14.19 |
| 19 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 20 |
87-2240 |
HOUSING-AXLE Price: $142.42 |
| 21 |
87-3310 |
CLIP-CABLE, BRAKE Price: $2.04 |
| 22 |
112-7961 |
LH REAR BRAKE ASM This part replaces 93-7126. Price: $377.59 |
| 23 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 24 |
323-6 |
SCREW-HH Price: $0.66 |
| 25 |
87-2080 |
BOLT-HEX, TAP Price: $2.34 |
| 26 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 27 |
105-1717-03 |
AXLE-STUB This part replaces 105-1717. Price: $367.71 |
| 28 |
93-7128 |
DRUM-BRAKE Price: $223.14 |
| 29 |
87-4060 |
SPACER-BEARING, WHEEL Price: $37.35 |
| 33 |
87-6750 |
WHEEL Price: $326.15 |
| 34 |
242-35 |
NUT-WHEEL This part replaces 321077. Price: $9.04 |
| 35 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 36 |
131-8433 |
TIRE-REAR This part replaces 87-6740. Price: $273.12 |
| 37 |
98-2967 |
DRIVESHAFT ASM KIT This part replaces 98-2918. Price: $968.71 |
| 38 |
105-1763 |
SCREW-HHF Price: $15.43 |
